FDCA71VNX-W/P CONTROL AND PARTS SET

Name: FDCA71VNX-W/P CONTROL AND PARTS SET
SKU: FDCA71VNX-W/P CONTROL AND PARTS SET
Availability: InStock

FDCA71VNX-W/P CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

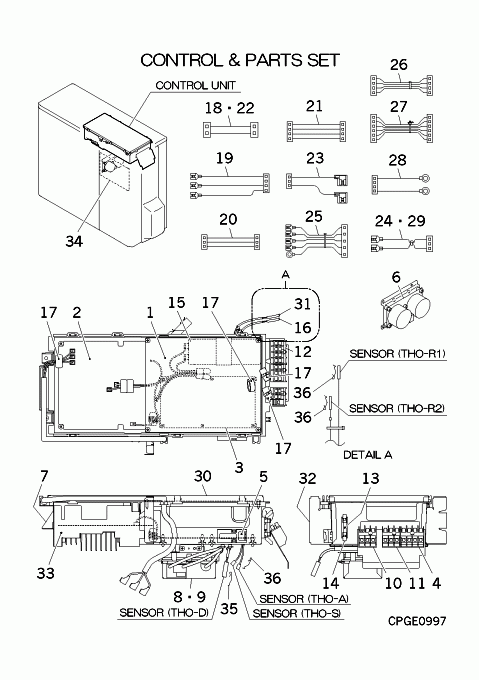

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] In Stock

PCA505A349AJ

PWB ASSY CONTROL

Notes: ONLY FOR SUPPLY PARTS PWB1, CONNECTS TO FAN MOTOR

[1-36] Contact

PCA501A217A

CONTROL UNIT

Contact

Notes: NOT AVAILABLE

[2] Contact

SSA564A134F

FUSE (CURRENT)

Contact

Notes: F3 2A

[3] In Stock

PCA505A230C

PWB ASSY(INVERTER)

Notes: ONLY FOR SUPPLY PARTS PWB2, Inverter PCB

[5] Contact

SSA564A134J

FUSE (CURRENT)

Contact

Notes: F6 5A

[6-7] In Stock

PCA505A180D

PWB, DRED

Notes: ONLY FOR SUPPLY PARTS PWB6, Demand Response Enabling Device. Only required if wired-in on installation. FOR MORE INFORMATION DISCUSS WITH TECH SUPPORT Show Image

[7] In Stock

SSA564A149AC

FUSE(CURRENT)

Notes: F1 2A, 2 amp fuse

[8] In Stock

PCA505A068C

PWB ASSY

Notes: PWB5, BOARD HAS 7 DIP SWITCHES - DOES "NOT" HAVE PUSH BUTTON Show Image

[9] In Stock

PCA505A231B

PWB ASSY (REACTOR)

Notes: ONLY FOR SUPPLY PARTS PWB7 Show Image

[10] In Stock

RPC142A853

BOX,CONTROL(A)

Notes: BLACK PLASTIC FRAME

[11] In Stock

RWC129A004

BOX,CONTROL(DR)

Show Image

[12] Contact

RWC132A008

LID,CONTROL(DR)

Contact

[13] In Stock

SSA561B665

BLOCK,TERMINAL

Notes: TB1, T1 Show Image

[14] In Stock

SSA561B675A

BLOCK,TERMI

Notes: TB2 Show Image

[15] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: TB3, T3 Show Image

[16] In Stock

SSA564A117

FUSE(CURRENT)

Notes: F1 20A

[17] In Stock

SSA564B088

FUSE HOLDER

Show Image

[18] In Stock

SSA552F399C

CAPACITOR

Notes: C1, C1‚ - 450V 2000UF Show Image

[19] In Stock

PCA551A032DB

SENSOR ASSY

Notes: THO-A,S,D,R1, THO-A,S,D,R1. Does not incude THO-P SSA551A256K Show Image

[20] In Stock

SSA554D183

KILLER,NOISE

Show Image

[21] In Stock

PCA504A251L

WIRING ASSY

Notes: PWB3 CNO2- PWB2 CNO1, PWB3 CNO2-PWB2 CNO1

[22] In Stock

PCA504A306AW

WIRING ASSY

Notes: PWB2 T51,PWB2 T52,PWB2 T62- PWB7 CN1, PWB2 T51,PWB2 T52,PWB2 T62- PWB7 CN1/ LENGTH 65CM Show Image

[23] Contact

PCA504A251Y

WIRING ASSY

Contact

Notes: PWB1 CNI3- PWB2 CNI4

[24] In Stock

PCA504A251Z

WIRING ASSY

Notes: PWB1 CNI1- PWB2 CNI2, PWB1 CNI1-PWB2 CNI2 Show Image

[25] In Stock

PCA504A251AA

WIRING ASSY

Notes: PWB1 CNG1- PWB2 CNG2, PWB1 CNG1-PWB2 CNG2 Show Image

[26] In Stock

PCA504A251AC

WIRING ASSY

Notes: PWB1 CNH- 63H1 1,63H1 2, PWB1 CNH-63H1 1,63H1 2 Show Image

[27] In Stock

PCA504A292AS

WIRING ASSY

Notes: TB1 N,TB1 L- PWB6 CNPOWER Show Image

[28] In Stock

PCA504A292K

WIRING ASSY

Notes: TB3 D1,TB3 D2,TB3 D3,TB3 C,TB3 E- PWB6 CNDRED Show Image

[29] Contact

PCA504A292F

WIRING ASSY

Contact

Notes: PWB1 CNDRM- PWB6 CNDRM

[30] Contact

PCA504A251DK

WIRING ASSY

Contact

Notes: PWB1 CNQ2- PWB5 CNQ1

[31] Contact

PCA504A251CP

WIRING ASSY

Contact

Notes: PWB1 CNA2- C1 +,C1 -

[32] Contact

PCA504A251FB

WIRING ASSY

Contact

Notes: TB1 2,TB1 3- PWB1 CNW2

[33] Contact

PCA142A153F

LID ASSY,CONTROL

Contact

[34] In Stock

PCB551A029F

SENSOR

Notes: THO-R2

[35] Contact

PCA142A188C

BOX ASSY,CONTROL

Contact

[36] Contact

PCA132A007

COVER

Contact

[38] In Stock

RCJ941F001

SPRING

Notes: FOR THO-D, LENGTH 2.5CM Show Image

[39] In Stock

PSA941F001

SPRING LEAF

Notes: FOR THO-S,R1,R2, 1pc ONLY Show Image
