FDCA71VNX-W/1 CONTROL AND PARTS SET

FDCA71VNX-W/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCA505A349AJ
PWB ASSY CONTROL
Notes: ONLY FOR SUPPLY PARTS PWB1, CONNECTS TO FAN MOTOR
[1-33] Contact
PCA501A217A
CONTROL UNIT
Contact
Notes: !, NOT AVAILABLE

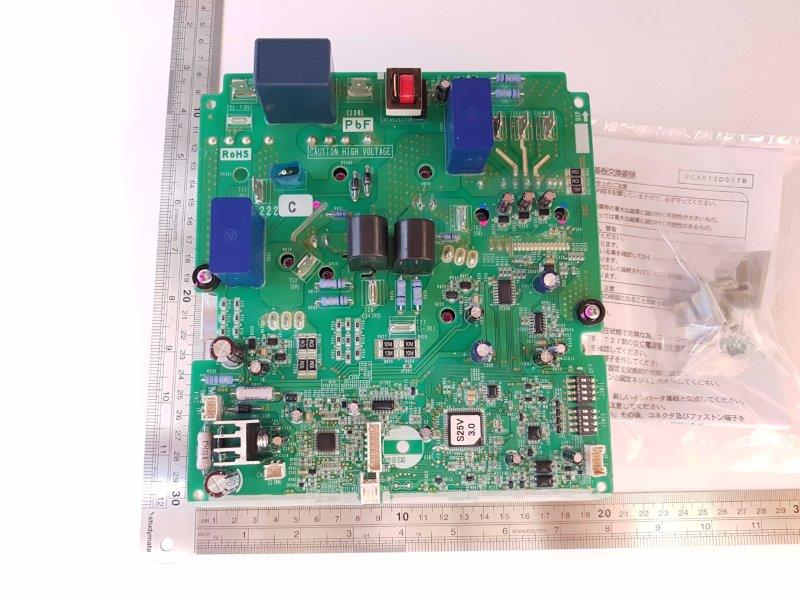

[2] In Stock
PCA505A230C
PWB ASSY(INV.)
Notes: ONLY FOR SUPPLY PARTS PWB2, Inverter PCB
[3] In Stock
PCA505A096M
PWB ASSY
Notes: ONLY FOR SUPPLY PARTS PWB3
[4] In Stock
PCA505A180D
DRED
Notes: ONLY FOR SUPPLY PARTS PWB6, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT
[5] In Stock
PCA505A068C
PWB ASSY
Notes: PWB5, BOARD HAS 7 DIP SWITCHES - DOES "NOT" HAVE PUSH BUTTON Show Image
PCA505A068C
[6] In Stock
PCA505A231
PWB ASSY(REACTOR)
Notes: ONLY FOR SUPPLY PARTS PWB7
[7] In Stock
RPC142A853
BOX,CONTROL(A)
Notes: !, BLACK PLASTIC FRAME
[8] In Stock
RWC129A004
BOX,CONTROL(DR)
Notes: ! Show Image
RWC129A004
[9] Contact
RWC132A008
LID,CONTROL(DR)
Contact
[10] In Stock
SSA561B665
BLOCK TERMI
Notes: TB1, T1 Show Image
SSA561B665
[11] In Stock
SSA561B675A
BLOCK,TERMI
Notes: TB2 Show Image
SSA561B675A
[12] In Stock
SSA561B733
BLOCK,TERMINAL
Notes: TB3, T3 Show Image
SSA561B733
[13] In Stock
SSA564A117
FUSE(CURRENT)
Notes: F1 20A
[14] In Stock
SSA564B088
HOLDER,FUSE
Show Image
SSA564B088
[15] In Stock
SSA552F399C
CAPACITOR
Notes: C1 Show Image
SSA552F399C
[16] In Stock
PCA551A032B
SENSOR ASSY
Notes: THO-A,S,D,R1
[17] In Stock
SSA554D183
KILLER,NOISE
Show Image
SSA554D183
[18] In Stock
PCA504A251L
WIRING ASSY
Notes: PWB3 CNO2- PWB2 CNO1, PWB3 CNO2-PWB2 CNO1
[19] In Stock
PCA504A306AW
WIRING ASSY
Notes: PWB2 T51,PWB2 T52,PWB2 T62- PWB7 CN1, PWB2 T51,PWB2 T52,PWB2 T62- PWB7 CN1/ LENGTH 65CM Show Image
PCA504A306AW
[20] Contact
PCA504A251Y
WIRING ASSY
Contact
Notes: PWB1 CNI3- PWB2 CNI4
[21] In Stock
PCA504A251Z
WIRING ASSY
Notes: PWB1 CNI1- PWB2 CNI2, PWB1 CNI1-PWB2 CNI2 Show Image
PCA504A251Z
[22] In Stock
PCA504A251AA
WIRING ASSY
Notes: PWB1 CNG1- PWB2 CNG2, PWB1 CNG1-PWB2 CNG2 Show Image
PCA504A251AA
[23] In Stock
PCA504A251AC
WIRING ASSY
Notes: PWB1 CNH- 63H1 1,63H1 2, PWB1 CNH-63H1 1,63H1 2 Show Image
PCA504A251AC
[24] In Stock
PCA504A292AS
WIRING ASSY
Notes: TB1 N,TB1 L- PWB6 CNPOWER
[25] In Stock
PCA504A292K
WIRING ASSY
Notes: TB3 D1,TB3 D2,TB3 D3,TB3 C,TB3 E- PWB6 CNDRED
[26] Contact
PCA504A292F
WIRING ASSY
Contact
Notes: PWB1 CNDRM- PWB6 CNDRM
[27] Contact
PCA504A251DK
WIRING ASSY
Contact
Notes: PWB1 CNQ2- PWB5 CNQ1
[28] Contact
PCA504A251CP
WIRING ASSY
Contact
Notes: PWB1 CNA2- C1 +,C1 -
[29] Contact
PCA504A251FB
WIRING ASSY
Contact
Notes: TB1 2,TB1 3- PWB1 CNW2
[30] Contact
PCA142A153F
LID ASSY,CONTROL
Contact
[31] In Stock
PCB551A029F
SENSOR
Notes: THO-R2
[32] Contact
PCA142A188C
BOX ASSY,CONTROL
Contact
[33] Contact
PCA132A007
COVER
Contact
[34] Contact
PSC011G566K
LABEL,WIRING
Contact
Notes: !
[35] In Stock
RCJ941F001
SPRING
Notes: FOR THO-D, LENGTH 2.5CM Show Image
RCJ941F001
[36] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THO-S,R1,R2 Show Image
RKJ941F001
[37] Contact
PSB011F362B
LABEL,MODEL NAME
Contact
Notes: !
