FDCA71VNX/1 CONTROL AND PARTS SET

FDCA71VNX/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCA505A349A
PWB ASSY (CONTROL)
Notes: ONLY FOR SUPPLY PARTS PWB1
[1-28] Contact
PCA501A195
CONTROL UNIT
Contact
Substitute: NOT AVAILABLE Notes: !, NOT AVAILABLE
[2] In Stock

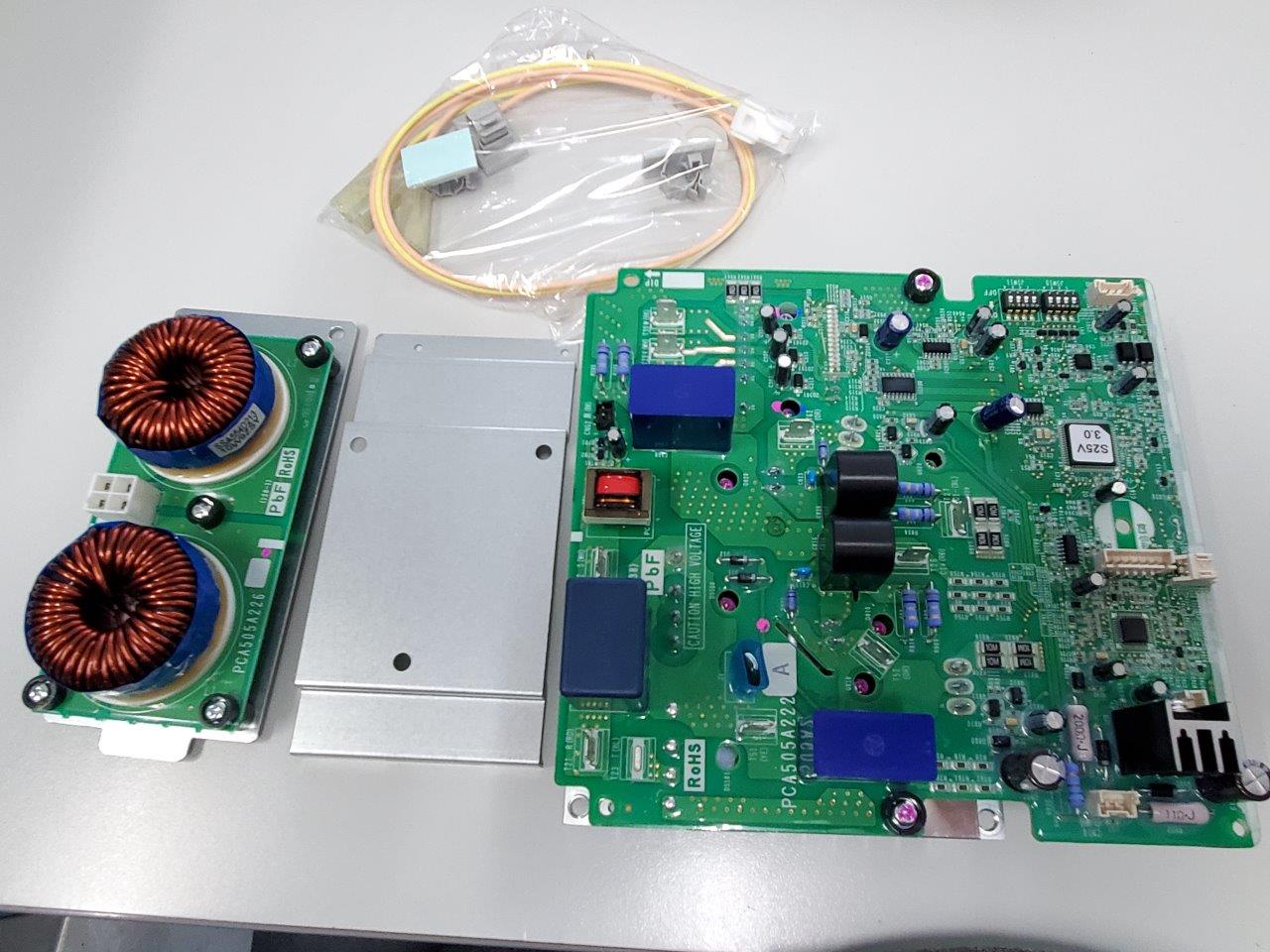

PCA505A232A
PWB ASSY (INVERTER)
Notes: ONLY FOR SUPPLY PARTS PWB2, ***CONFIRM SERVICE CODE*** Connects to Compressor. Comes with a (different looking) reactor - tech to read install instructions - (FACTORY PART PCA505A098G) Show Image
PCA505A232A
[3] In Stock
PCA505A096G
PWB ASSY (N.F)
Notes: PWB3, NOISE FILTER
[4] In Stock
PCA505A068C
PWB ASSY
Notes: PWB4, BOARD HAS 7 DIP SWITCHES - DOES "NOT" HAVE PUSH BUTTON Show Image
PCA505A068C
[5] In Stock
PCA505A180
DRED
Notes: ONLY FOR SUPPLY PARTS PWB5, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image
PCA505A180
[6] In Stock
RPC142A853
BOX,CONTROL(A)
Notes: !, BLACK PLASTIC FRAME
[7] Contact
PCA142A153C
LID ASSY,CONTROL
Contact
[8] In Stock
SSA561B665
BLOCK TERMI
Notes: TB1, T1 Show Image
SSA561B665
[9] In Stock
SSA561B675A
BLOCK,TERMI
Notes: TB2 Show Image
SSA561B675A
[10] In Stock
SSA561B733
BLOCK,TERMINAL
Notes: TB3, T3 Show Image
SSA561B733
[11] In Stock
SSA564A117
FUSE(CURRENT)
Notes: F1 20A
[12] In Stock
SSA564B088
HOLDER,FUSE
SSA564B088
[13] In Stock
SSA552F399C
CAPACITOR¿
Notes: CA, C1¿ Show Image
SSA552F399C
[14] In Stock
SSA554D183
KILLER,NOISE¿
SSA554D183
[15] In Stock
PCA551A032B
SENSOR ASSY
Notes: THO-A,S,D,R1
[16] In Stock
PCB551A029F
SENSOR
Notes: THO-R2
[17] In Stock
PCA504A251L
WIRING ASSY¿
Notes: PWB3 CNO2- PWB2 CNO1, PWB3 CNO2-PWB2 CNO1¿
[18] Contact
PCA504A251CN
WIRING ASSY
Contact
Notes: PWB2 T26,PWB2 T27,PWB1 CNA1- C1 +,C1 -
[19] Contact
PCA504A251Y
WIRING ASSY
Contact
Notes: PWB1 CNI3- PWB2 CNI4
[20] In Stock
PCA504A251Z
WIRING ASSY¿
Notes: PWB1 CNI1- PWB2 CNI2, PWB1 CNI1-PWB2 CNI2¿ Show Image
PCA504A251Z
[21] In Stock
PCA504A251AA
WIRING ASSY¿
Notes: PWB1 CNG1- PWB2 CNG2, PWB1 CNG1-PWB2 CNG2¿ Show Image
PCA504A251AA
[22] In Stock
PCA504A251AC
WIRING ASSY¿
Notes: PWB1 CNH- 63H1 1,63H1 2, PWB1 CNH-63H1 1,63H1 2¿ Show Image
PCA504A251AC
[23] Contact
PCA504A251DK
WIRING ASSY
Contact
Notes: PWB1 CNQ2- PWB5 CNQ1
[24] Contact
PCA504A251CP
WIRING ASSY
Contact
Notes: PWB1 CNA2- C1 +,C1 -
[25] In Stock
PCA504A251AB
WIRING ASSY¿
Notes: TB1 2,TB1 3- PWB1 CNW2, TB1 2,TB1 3-PWB1 CNW2¿
[26] In Stock
PCA504A292AS
WIRING ASSY
Notes: TB1 N,TB1 L- PWB3 CNPOWER, TB1 N,TB1 L- PWB6 CNPOWER Show Image
PCA504A292AS
[27] In Stock
PCA504A292K
WIRING ASSY
Notes: TB3 D1,TB3 D2,TB3 D3,TB3 C,TB3 E- PWB6 CNDRED
[28] Contact
PCA504A292F
WIRING ASSY
Contact
Notes: PWB1 CNDRM- PWB6 CNDRM
[29] In Stock
SSA554B079
REACTOR
SSA554B079
[30] In Stock
RCJ941F001
SPRING
Notes: FOR THO-D, LENGTH 2.5CM Show Image
RCJ941F001
[31] In Stock
PSA941F001
SPRING LEAF
Notes: FOR THO-S,R1,R2, 1pc ONLY Show Image
PSA941F001
[32] Contact
PSC011G566B
LABEL,WIRING
Contact
Notes: !
[33] Contact
PSB011F161
LABEL,MODEL NAME
Contact
Notes: !
