FDCA615HKXE4R CONTROL AND PARTS SET

FDCA615HKXE4R CONTROL AND PARTS SET

Available Parts

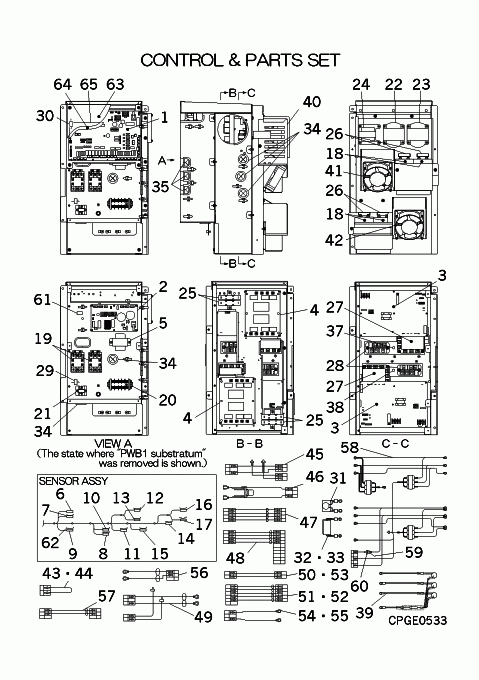

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCB505A042TF PWB ASSY In Stock Substitute: PCB505A242TF Notes: FOR KXE4 MODELS ONLY / SEE INFO IN BLACK FOLDER, PWB1 Show Image
  • [1-61] PCB501A189G CONTROL UNIT Contact   Contact
  • [2] PCB505A041YD PWB ASSY (EEV) In Stock Notes: PWB4 EEV, PWB4 Show Image
  • [3] PCB505A044ZB PWB ASSY(INV.) In Stock Notes: INVERTER BOARD, PWB2 Show Image
  • [4] PCB505A035D PWB ASSY (N.F.) In Stock Notes: NOISE FILTER, PWB3-1,2 Show Image
  • [5] PCB554A014D TRANSFOMER Out of Stock Notes: TRO Show Image
  • [6] PCB551A025A SENSOR TH A In Stock Notes: THO-A, THO-A Show Image
  • [7] PCB551A025R SENSOR In Stock Notes: THO-D1, THO-D1 Show Image
  • [8] PCB551A025C SENSOR T In Stock Notes: THO-D2, THO-D2 Show Image
  • [9] PCB551A025S SENSOR In Stock Notes: THO-C1, THO-C1 Show Image
  • [10] PCB551A025G SENSOR ASSY In Stock Notes: THO-C2, THO-C2
  • [11] PCB551A025T SENSOR In Stock Notes: THO-S, THO-S Show Image
  • [12] PCB551A025M SENSOR ASSY In Stock Notes: THO-SC, THO-SC Show Image
  • [13] PCB551A025N SENSOR ASSY In Stock Notes: THO-H, THO-H Show Image
  • [14] PCB551A025H SENSOR T R1 In Stock Notes: THO-R1, THO-R1 Show Image
  • [15] PCB551A025J SENSOR T R2 In Stock Notes: THO-R2, THO-R2 Show Image
  • [16] PCB551A025K SENSOR T R3 In Stock Notes: THO-R3, THO-R3 Show Image
  • [17] PCB551A025L SENSOR T R4 In Stock Notes: THO-R4, THO-R4 Show Image
  • [18] SSA552F427AK CAPACITOR In Stock Notes: 4700 MICRO FARADS, C1-1,C2-1,C1-2,C2-2 Show Image
  • [19] SSA521A189C CONTACTOR In Stock Notes: 220-240V 50HZ, 240-260V 60HZ, 52C1,2 Show Image
  • [20] SSA561B687 BLOCK,TERMI In Stock Notes: TB1 Show Image
  • [21] SSA561B716AC BLOCK TERMI In Stock Notes: TBX or TB2 Show Image
  • [22] SSA554B100B REACTOR In Stock Show Image
  • [23] SSA554B100C REACTOR In Stock Show Image
  • [24] SSA554B073 REACTOR In Stock Notes: L3 Show Image
  • [25] SSA553A379 RESISTOR In Stock Notes: 15O (OHM), R1-1,2,R2-1,2 Show Image
  • [26] SSA553A380 RESISTOR In Stock Notes: 30 KO (KILO-OHM), R1-3,4,R2-3,4
  • [27] PCB008A120A TRANSISTOR In Stock Notes: IPM (INTELLIGENT POWER MODULE) / POWER TRANSISTOR, IPM/TM
  • [28] PCB008A121A DIODE STACK In Stock Notes: AKA DIODE MODULE, DM Show Image
  • [29] SSA554D099 NOIZU KILLE In Stock
  • [30] SSA554D114 CORE FERR Contact   Contact
  • [31] PCB555B003A VARISTOR In Stock Show Image
  • [32] PCB552F006A CAPACITOR A In Stock
  • [33] PCB552F006B CAPACITOR A In Stock
  • [34] S751W30X GROMMET V14 In Stock Notes: D35 Show Image
  • [35] SSA947B017 GROMMET Contact   Contact
  • [36] SSA552D040Y FILTER,NOISE In Stock Notes: FOR COMP.WIRING Show Image
  • [37] SSA551A192G SENSOR ASSY In Stock Notes: THO-P1 or TR1
  • [38] SSA551A192H SENSOR ASSY In Stock Notes: THO-P2 or TR2 Show Image
  • [39] PCB552D006A KILLER,NOIS Contact   Contact
  • [40] PCB438A017B DUCT ASSY Contact   Contact
  • [41] PCB511A006C MOTOR ASSY, In Stock Show Image
  • [42] PCB511A006F MOTOR ASSY, In Stock
  • [43] PCB504A172AK WIRING ASSY In Stock Notes: PWB1 CNS2 (PWB1 CNG1 FOR FDCA224HXKE4), PWB1 CNG1 or CNS2 Show Image
  • [44] PCB504A172AM WIRING ASSY In Stock Notes: PWB1 CNG2, PWB1 CNG2 Show Image
  • [45] PCB504A223DP WIRING ASSY In Stock Notes: PWB1 CNN8-CNC11,CNC12 Show Image
  • [46] PCB504A223GF WIRING ASSY In Stock Notes: WHITE PLUG WITH BLACK AND GREEN CABLE - DM-1,DM-1-PWB2-1 CNR, DM-1,DM-1-PWB2-1 CNR Show Image
  • [47] PCB504A223GG WIRING ASSY In Stock Notes: PWB2-1 CNI3-PWB2-2 CNI3
  • [48] PCB504A223RB WIRING ASSY In Stock Notes: PWB1 CNI1-PWB2 CNI2 Show Image
  • [49] PCB504A223RM WIRING ASSY In Stock Notes: PWB4 CN01,CNDCW1-PWB2 TB2,PWB2 TB2 Show Image
  • [50] PCB504A223DD WIRING ASSY In Stock Notes: PWB1 CNZ1-PWB4 CNZ1 Show Image
  • [51] PCB504A223DF WIRING ASSY In Stock Notes: PWB1 CNT1-PWB4 CNT1 Show Image
  • [52] PCB504A223DG WIRING ASSY In Stock Notes: PWB1 CNT2-PWB4 CNT2 Show Image
  • [53] PCB504A223DH WIRING ASSY In Stock Notes: PWB1 CNK-PWB4 CNK Show Image
  • [54] PCB504A223DJ WIRING ASSY In Stock Notes: PWB1 CNM1-52C1,52C1 Show Image
  • [55] PCB504A223DK WIRING ASSY In Stock Notes: PWB1 CNM2-52C2,52C2 Show Image
  • [56] PCB504A223RC WIRING ASSY In Stock Notes: TB2,TB2-PWB1 CNX1 Show Image
  • [57] PCB504A223RL WIRING ASSY In Stock Notes: PWB4 CNI3-PWB1 CNI3 Show Image
  • [58-60] PCB504A250WF WIRING ASSY In Stock Notes: CNW1, TB1,TB1,TB1,TB1,TB1,TB1,PWB1 CNW1-E,52C2,52C2,52C2,52C1,52
  • [59] SSA564A072C FUSE In Stock Notes: 3.15 AMPS, 3.15A Show Image
  • [60] SSA564B059 HOLDER,FUSE In Stock Show Image
  • [61] SSA552D063 FILTER NOI In Stock Show Image
  • [62] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR SENSOR Show Image
  • [63-65] PCB119A232AG PLATE Contact   Contact
  • [64] PSC011G473B LABEL,WIRING Contact Notes: !BACK ATTACHMENT, !BACK ATTACHMENT   Contact
  • [65] PSC011G473A LABEL,WIRING Contact Notes: !SURFACE ATTACHMENT, !SURFACE ATTACHMENT   Contact
  • [66] PCA012A001 MANUAL,INSTRUCTION Contact   Contact
  • [67] PSA011F919DC LABEL,MODEL NAME Contact   Contact
SKU: FDCA615HKXE4R CONTROL AND PARTS SET Category:
