FDCA504HKXRE4 PIPING

FDCA504HKXRE4 PIPING

FDCA504HKXRE4 PIPING

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

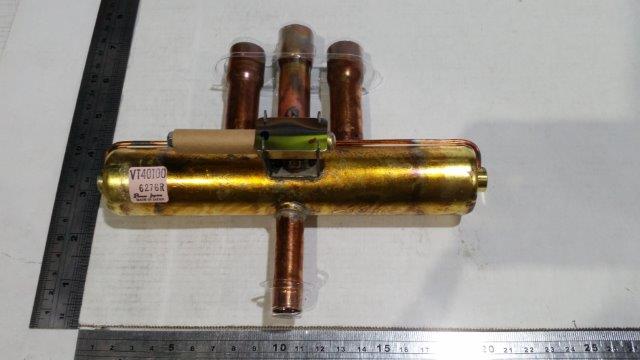

[1] Out of Stock
SSA382C074
4 WAY VALVE
Notes: 20S,20SL, OUT OF PRODUCTION Show Image
SSA382C074
[2] In Stock
SSA327B067
VALVE,SERVICE
Show Image
SSA327B067
[3] Out of Stock
SSA327B067A
VALVE,SERVI
[4] Contact
PCB116A578
BRACKET
Contact
[5] In Stock
SSA381A748A
VALVE,SERVICE
Notes: GAS Show Image
SSA381A748A
[6] Contact
PCB381A077A
VALVE SERVI
Contact
Notes: LIQ.
[7] In Stock
SSA357A007A
STRAINER
Show Image
SSA357A007A
[8] Contact
PCB116A579
BRACKET
Contact
[9] In Stock
SSA551D022C
SENSOR LP
Notes: LOW PRESSURE TRANSDUCER Show Image
SSA551D022C
[10] In Stock
SSA551D024A
SENSOR HP
Notes: HIGH PRESSURE TRANSDUCER, HIGH PRESSURE TRANSDUCER - PSH Show Image
SSA551D024A
[11] Contact
SSA325A001CL
PIPE,SHELL
Contact
[12] Contact
SSA382A245
2VALVE
Contact
Notes: SV11
[12-13] Contact
PCB382A176A
2WA VALVE
Contact
[13] In Stock
SSA357A059T
STRAINER
Show Image
SSA357A059T
[14] In Stock
SSA357A005C
STRAINER
Show Image
SSA357A005C
[14-15] In Stock
PCB321F270
PIPE ASSY
[15] Contact
PCB315B812
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[16] In Stock
SSA357A005C
STRAINER
Show Image
SSA357A005C
[16-17] In Stock
PCB321F270A
PIPE ASSY
[17] Contact
PCB315B812A
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[18] Contact
SSA325A033C
PIPE SHELL
Contact
[18-27] Out of Stock
PCB354A033
OIL SEPARATOR
[19] In Stock
SSA385A018A
VALVE CHECK
[20] In Stock
SSA382A250
2WAY, VALVE
Notes: SV Show Image
SSA382A250
[20-23] Out of Stock
PCB321D982
PIPE L
Substitute: PCB321F595
[21] Contact
PCB315B800A
CAPILLARY
Contact
Notes: !D2.2XD3.2 L350
[22] Contact
PCB315B805
CAPILLARY
Contact
Notes: !D1.2XD3.2 L500
[23] In Stock
SSA357A008BW
STRAINER
[24] In Stock
SSA382A250
2WAY, VALVE
Notes: SV Show Image
SSA382A250
[24-27] Out of Stock
PCB321D938A
PIPE L
Substitute: PCB321F595A
[25] Contact
PCB315B800
CAPILLARY
Contact
Notes: !D2.2XD3.2 L350
[26] Contact
PCB315B801A
CAPILLARY
Contact
Notes: !D1.1XD3.2 L500
[27] In Stock
SSA357A008BW
STRAINER
[28] In Stock
SSA532A032GR
SWITCH HP
Notes: 63H1-1,2 Show Image
SSA532A032GR
[29] In Stock
SSA532A032GS
SWITCH HP
Notes: 63H1-2 Show Image
SSA532A032GS
[30] In Stock
AGT201A828DS
COMPRESSOR
Notes: GT-C5150ND78A, GT-C5150ND78A ***COMPRESSORS CANNOT BE RETURNED*** compressor pre-charged with 1.45L of oil
[31] In Stock
SSA352A111W
RECEIVER ASSY
[32] In Stock
SSA352A111Z
RECIEVER ASSY
[33] In Stock
SSA351A228
ACCUMULATOR
[34] In Stock
PCB315B303D
CAPILLARY
Notes: !D2.2XD3.2 L300 Show Image
PCB315B303D
[35] In Stock
PCB315B303C
CAPILLARY
Notes: !D2.2XD3.2 L300, LENGTH 6.5CM Show Image
PCB315B303C
[36] Contact
SSA381A828
VALVE.SERV
Contact
Notes: LIQ.
[37] In Stock
SSA357A005A
STRAINER
Show Image
SSA357A005A
[38] In Stock
PCA541B031
HEATER ASSY(CRANK)
Show Image
PCA541B031
[39] In Stock
PCA541B011AD
HEATER ASSY
[40] In Stock
SSA941C356
CUSHION,RUBBER
Notes: 1pc only Show Image
SSA941C356
[41] In Stock
SSA914C033
NUT
Notes: 1pc
[42] In Stock
SSA915H042
WASHER
Notes: 1pc ONLY Show Image
SSA915H042
[43] Contact
SSA914C003
NUT
Contact
Notes: 1pc
[44] In Stock
AGT947K100
COVER TERMINAL
Show Image
AGT947K100
[45] In Stock
AGT932C100
GASKET COVER
Show Image
AGT932C100
[46] In Stock
PCA151D034
INSULATO CO
[47] Contact
PCB151D088
INSULATION
Contact
[48] Contact
PCB151D100
INSULATIO
Contact
[49] Contact
PCB303A011A
HEAT LIQ
Contact
[50] In Stock
SSA387F036
EXP VALVE
Notes: EEV, EEV(HEAT) or EEVH1-EEVH2 Show Image
SSA387F036
[51] In Stock
SSA357A024C
STRAINER
Show Image
SSA357A024C
[52] In Stock
SSA382F210Z
COIL,SOLENOID
Notes: FOR EEVSC, LENGTH 206CM Show Image
SSA382F210Z
[53] Out of Stock
PCB382F092C
COIL ASSY,S
Notes: FOR SV6, SV6 SOLENOID
[54] In Stock
PCB382F092D
COIL ASSY,S
Notes: FOR SV7, SV7 SOLENOID Show Image
PCB382F092D
[55] In Stock
PCB382F092H
COIL ASSY,S
Notes: FOR 20S, 20S SOLENOID COIL/ LENGTH 140.5CM Show Image
PCB382F092H
[56] In Stock
PCB382F092J
COIL ASSY,S
Notes: FOR 20SL, 20SL SOLENOID COIL Show Image
PCB382F092J

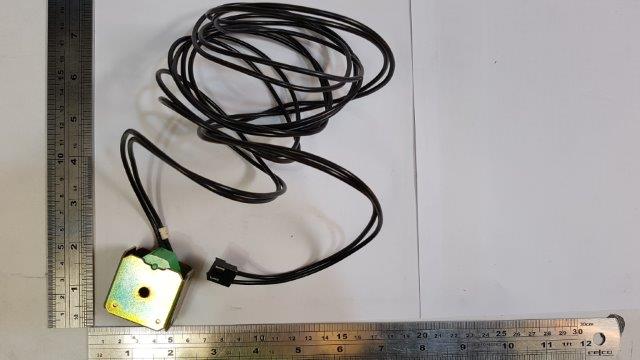

[57] In Stock
PCB382F092K
COIL ASSY,S
Notes: FOR SV11, SV11 SOLENOID COIL Show Image
PCB382F092K
[58] In Stock
PCB504A223MA
WIRING ASSY
Notes: !CM1 U Show Image
PCB504A223MA
[59] In Stock
PCB504A223MB
WIRING ASSY
Notes: !CM1 V Show Image
PCB504A223MB
[60] In Stock
PCB504A223MC
WIRING ASSY
Notes: !CM1 W, !CM1 W‚ / LENGTH 87CM Show Image
PCB504A223MC
[61] In Stock
PCB504A223PA
WIRING ASSY
Notes: !CM2 U, !CM2 U‚  - RED Show Image
PCB504A223PA
[62] In Stock
PCB504A223PB
WIRING ASSY
Notes: !CM2 V, !CM2 V‚ / LENGTH 136CM - White Show Image
PCB504A223PB
[63] In Stock
PCB504A223PC
WIRING ASSY
Notes: !CM2 W
