FDCA504HKXE4R CONTROL AND PARTS SET

FDCA504HKXE4R CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

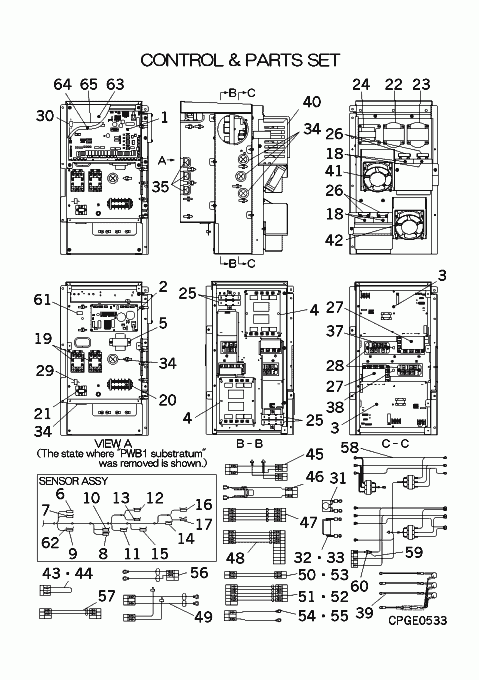

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCB505A042TF
PWB ASSY
Notes: PWB1, CONTROL Show Image
PCB505A042TF
[1-61] Contact
PCB501A189D
CONTROL UNIT
Contact
Notes: NOT AVAILABLE
[2] In Stock
PCB505A041YD
PWB ASSY (EEV)
Notes: PWB4, PWB4 EEV Show Image
PCB505A041YD
[3] In Stock
PCB505A044ZB
PWB ASSY(INV.)
Notes: PWB2-1,2, INVERTER BOARD - DOES NOT INCLUDE TRANSISTOR/IPM Show Image
PCB505A044ZB
[4] In Stock
PCB505A035D
PWB ASSY (N.F.)
Notes: PWB3-1,2, NOISE FILTER Show Image
PCB505A035D
[5] Out of Stock
PCB554A014D
TRANSFOMER
Notes: TR Show Image
PCB554A014D
[6] In Stock
PCB551A025A
SENSOR TH A
Notes: THO-A Show Image
PCB551A025A
[7] Out of Stock
PCB551A025R
SENSOR
Notes: THO-D1 Show Image
PCB551A025R
[8] In Stock
PCB551A025C
SENSOR T
Notes: THO-D2 Show Image
PCB551A025C
[9] In Stock
PCB551A025S
SENSOR
Notes: THO-C1 Show Image
PCB551A025S
[10] In Stock
PCB551A025G
SENSOR ASSY
Notes: THO-C2
[11] In Stock
PSA099A092JK
SENSOR
Notes: THO-S
[12] In Stock
PCB551A025M
SENSOR ASSY
Notes: THO-SC Show Image
PCB551A025M
[13] In Stock
PCB551A025N
SENSOR ASSY
Notes: THO-H Show Image
PCB551A025N
[14] In Stock
PSA099A092JJ
SENSOR ASSY
Notes: THO-R1, LENGTH 191CM - THO-R1 Show Image
PSA099A092JJ
[15] In Stock
PCB551A025J
SENSOR T R2
Notes: THO-R2 Show Image
PCB551A025J
[16] In Stock
PCB551A025K
SENSOR T R3
Notes: THO-R3 Show Image
PCB551A025K
[17] In Stock
PCB551A025L
SENSOR T R4
Notes: THO-R4 Show Image
PCB551A025L
[18] In Stock
SSA552F427AK
CAPACITOR
Notes: 4700 MICRO FARADS Show Image
SSA552F427AK
[19] In Stock
SSA521A189C
CONTACTOR
Notes: 52C1,2, 220-240V 50Hz, 240-260V 60Hz Show Image
SSA521A189C
[20] In Stock
SSA561B687
BLOCK,TERMI
Notes: TB1 Show Image
SSA561B687
[21] In Stock
SSA561B716AC
BLOCK TERMI
Notes: TB2 Show Image
SSA561B716AC
[22] In Stock
SSA554B100B
REACTOR
SSA554B100B
[23] In Stock
SSA554B100C
REACTOR
SSA554B100C
[24] In Stock
SSA554B073
REACTOR
SSA554B073
[25] In Stock
SSA553A379
RESISTOR
Notes: SOLD INDIVIDUALLY - 15O (Ohm) Show Image
SSA553A379
[26] In Stock
SSA553A380
RESISTOR
Notes: SOLD INDIVIDUALLY - 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image
SSA553A380
[27] In Stock
PCB008A120A
TRANSISTOR
Notes: TM-1,2, IPM (Intelligent Power Module) / POWER TRANSISTOR Show Image
PCB008A120A
[28] In Stock
PCB008A121A
DIODE STACK
Notes: DM-1,2, aka DIODE MODULE Show Image
PCB008A121A
[29] In Stock
SSA554D099
NOIZU KILLE
SSA554D099
[30] Contact
SSA554D114
CORE FERR
Contact
[31] In Stock
PCB555B003A
VARISTOR
PCB555B003A
[32] In Stock
PCB552F006A
CAPACITOR A
Notes: 2 red & blue cables - 2 capacitors tied together - white cable on each end Show Image
PCB552F006A
[33] In Stock
PCB552F006B
CAPACITOR A
Notes: 2 red & blue cables - 2 capacitors tied together - white cable on each end
[34] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[35] Contact
SSA947B017
GROMMET
Contact
[36] In Stock
SSA552D040Y
FILTER,NOISE
Notes: FOR COMP.WIRING Show Image
SSA552D040Y
[37] Out of Stock
SSA551A192G
SENSOR ASSY
Notes: THO-P1 Show Image
SSA551A192G
[38] Out of Stock
SSA551A192H
SENSOR ASSY
Substitute: SSA551A192CH Notes: THO-P2 Show Image
SSA551A192H
[39] Out of Stock
PCB552D006A
KILLER,NOIS
[40] In Stock
PCB438A017B
DUCT ASSY
[41] In Stock
PCB511A006C
MOTOR ASSY,
PCB511A006C
[42] In Stock
PCB511A006F
MOTOR ASSY,
[43] Out of Stock
PCB504A172AK
WIRING ASSY
Notes: PWB1 CNS2, PWB1 CNS2 (PWB1 CNG1 for FDCA224HXKE4) Show Image
PCB504A172AK
[44] Out of Stock
PCB504A172AM
WIRING ASSY
Notes: PWB1 CNG2 Show Image
PCB504A172AM
[45] Out of Stock
PCB504A223DP
WIRING ASSY
Notes: PWB1 CNN8-CNC11,CNC12 Show Image
PCB504A223DP
[46] In Stock
PCB504A223GF
WIRING ASSY
Notes: DM-1,DM-1-PWB2-1 CNR, white plug with black and green cable - DM-1,DM-1-PWB2-1 CNR Show Image
PCB504A223GF
[47] In Stock
PCB504A223GG
WIRING ASSY
Notes: PWB2-1 CNI3-PWB2-2 CNI3, LENGTH 88CM Show Image
PCB504A223GG
[48] In Stock
PCB504A223RB
WIRING ASSY
Notes: PWB1 CNI1-PWB2-1 CNI2 Show Image
PCB504A223RB
[49] Out of Stock
PCB504A223RM
WIRING ASSY
Notes: PWB4 CN01,CNDCW1-PWB2-1 TB2,PWB2-1 TB2 Show Image
PCB504A223RM
[50] Out of Stock
PCB504A223DD
WIRING ASSY
Notes: PWB1 CNZ1-PWB4 CNZ1 Show Image
PCB504A223DD
[51] Out of Stock
PCB504A223DF
WIRING ASSY
Notes: PWB1 CNT1-PWB4 CNT1 Show Image
PCB504A223DF
[52] Out of Stock
PCB504A223DG
WIRING ASSY
Notes: PWB1 CNT2-PWB4 CNT2 Show Image
PCB504A223DG
[53] In Stock
PCB504A223DH
WIRING ASSY
Notes: PWB1 CNK-PWB4 CNK Show Image
PCB504A223DH
[54] Out of Stock
PCB504A223DJ
WIRING ASSY
Notes: PWB1 CNM1-52C1,52C1 Show Image
PCB504A223DJ
[55] In Stock
PCB504A223DK
WIRING ASSY
Notes: PWB1 CNM2-52C2,52C2 Show Image
PCB504A223DK
[56] In Stock
PCB504A223RC
WIRING ASSY
Notes: TB2,TB2-PWB1 CNX1 Show Image
PCB504A223RC
[57] Out of Stock
PCB504A223RL
WIRING ASSY
Notes: PWB4 CNI3-PWB1 CNI3 Show Image
PCB504A223RL
[58-60] In Stock
PCB504A250WF
WIRING ASSY
Notes: CNW1 Show Image
PCB504A250WF
[59] In Stock
SSA564A072C
FUSE
Notes: 3.15A, 3.15 Amps Show Image
SSA564A072C
[60] In Stock
SSA564B059
HOLDER,FUSE
SSA564B059
[61] In Stock
SSA552D063
FILTER NOI
SSA552D063
[62] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR ASSY Show Image
RKJ941F001
[63-65] Contact
PCB119A232AG
PLATE
Contact
[64] Contact
PSC011G473B
LABEL,WIRING
Contact
Notes: !BACK ATTACHMENT
[65] Contact
PSC011G473A
LABEL,WIRING
Contact
Notes: !SURFACE ATTACHMENT
[66] Contact
PCA012A001
MANUAL,INSTRUCTION
Contact
[67] Contact
PSA011F919DA
Contact
