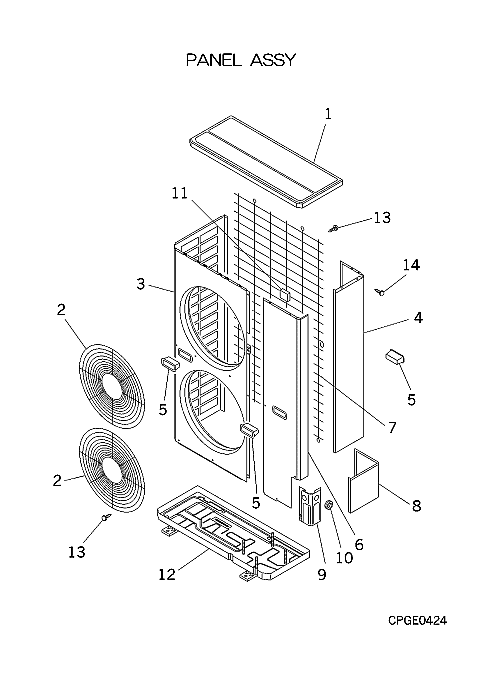

FDCA501HESR PANEL ASSY

FDCA501HESR PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCA124A015B
PANEL ASSY,
[2] In Stock
PCA131A038
FAN GUARD
[3] In Stock
PCA122A038
PANAL F„¢
[4] In Stock
PCA125A019B
PANEL REAR
[5] In Stock
SSA944B031A
HANDLE
Show Image
SSA944B031A
[6] In Stock
PCA122A039D
PANAL SERVI
[7] In Stock
PCA131A032B
GUARD,FIN
[8] In Stock
PCA142A081
COVER SIDE
[9-10] In Stock
PCA142A065F
COVER,FRONT
Notes: SMALL CORNER PANEL, BOTTOM FRONT/RIGHT SIDE Show Image
PCA142A065F
[10] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[11] In Stock
PCA941G004
CUSHION RUB
[12] Contact
PCA111A030F
BASE ASSY
Contact
[13] Contact
SSA913D012A
SCREW 5/14
Contact
Notes: 5X14, 1pc ONLY
[14] Contact
SSA913D012
SCREW 5X10
Contact
Notes: 5X10, 1pc ONLY
