FDCA501HESR FAN AND COMPRESSOR

FDCA501HESR FAN AND COMPRESSOR

Available Parts

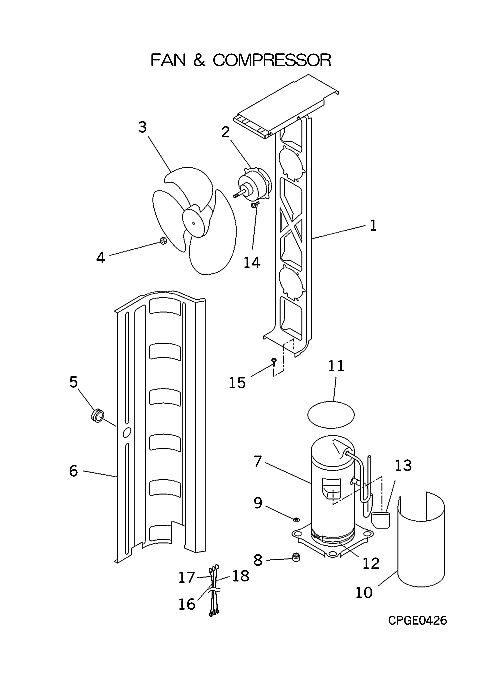

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCA116A109C BASE MOTOR Contact   Contact
  • [2] SSA511A669B FAN MOTOR In Stock
  • [3] SSA431B228 FAN, PROPELLER In Stock Notes: CONDENSER FAN BLADE
  • [4] SSA914B007AD NUT In Stock Substitute: RSA008A005 Notes: 1PC, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image
  • [5] S751W30X GROMMET V14 In Stock Notes: D35 Show Image
  • [6] PCA141A078 PLATE ASSY, Contact   Contact
  • [7] PCA201A041D COMPRESSOR In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***, ZP54K3E-TFD
  • [8] PCA941C003A CUSHION,RUB In Stock Show Image
  • [9] SSA914C005C NUT Contact Notes: 1PC, FOR ACCUMULATOR   Contact
  • [10] PCA151D057A INSULA CON, Contact Notes: SIDE   Contact
  • [11] PCA151D070 INSULA CON, Contact Notes: TOP   Contact
  • [12] PCA541B021L HEATER ASSY In Stock Show Image
  • [13] PCA947K003 COVER TERM In Stock Show Image
  • [14] W011D04X012 TAP-SCREW Contact Notes: 1PC ONLY, 4X12   Contact
  • [15] SSA913D012 SCREW 5X10 Contact Notes: 1PC ONLY, 5X10   Contact
  • [16] SAC567R160R CORD,IV Contact Notes: !T1, !T1   Contact
  • [17] SAC567R140W CORD,IV Contact Notes: !T2, !T2   Contact
  • [18] SAC567R154L CORD,IV Contact Notes: !T3, !T3   Contact
SKU: FDCA501HESR FAN AND COMPRESSOR Category:
