FDCA450HKXRE4 PIPING

Name: FDCA450HKXRE4 PIPING
SKU: FDCA450HKXRE4 PIPING
Availability: InStock

FDCA450HKXRE4 PIPING

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

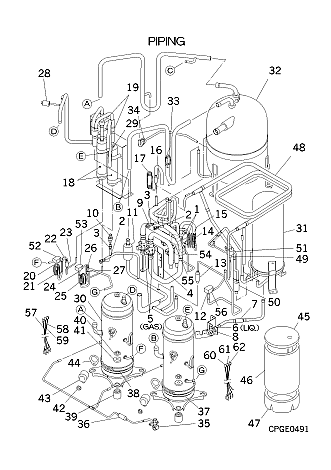

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

SSA382C074

4 WAY VALVE

Notes: 20S,20SL Show Image

[2] In Stock

SSA327B067

VALVE,SERVICE

Show Image

[3] Out of Stock

SSA327B067A

VALVE,SERVI

[4] Contact

PCB116A578

BRACKET

Contact

[5] In Stock

SSA381A748A

VALVE,SERVICE

Notes: GAS Show Image

[6] Contact

SSA381A624

VALVE,SERVICE(1/2"

Contact

Substitute: PCA381A071 Notes: LIQ.

[7] In Stock

SSA357A007A

STRAINER

Show Image

[8] Contact

PCB116A579

BRACKET

Contact

[9] In Stock

SSA551D022C

SENSOR LP

Notes: LOW PRESSURE TRANSDUCER Show Image

[10] In Stock

SSA551D024A

SENSOR HP

Notes: HIGH PRESSURE TRANSDUCER, HIGH PRESSURE TRANSDUCER - PSH Show Image

[11] Contact

SSA325A001CL

PIPE,SHELL

Contact

[12] Contact

SSA382A245

2VALVE

Contact

Notes: SV11

[12-13] Contact

PCB382A176A

2WA VALVE

Contact

[13] In Stock

SSA357A059T

STRAINER

[14] In Stock

SSA357A005C

STRAINER

Show Image

[14-15] In Stock

PCB321F270

PIPE ASSY

[15] Contact

PCB315B812

CAPILLARY

Contact

Notes: !D1.0XD2.0 L1000

[16] In Stock

SSA357A005C

STRAINER

Show Image

[16-17] In Stock

PCB321F270A

PIPE ASSY

[17] Contact

PCB315B812A

CAPILLARY

Contact

Notes: !D1.0XD2.0 L1000

[18] Contact

SSA325A033C

PIPE SHELL

Contact

[18-27] Out of Stock

PCB354A033

OIL SEPARATOR

[19] Contact

SSA385A049

VALVE,CHECK

Contact

[20] In Stock

SSA382A250

2WAY, VALVE

Notes: SV Show Image

[20-23] Out of Stock

PCB321D982

PIPE L

Substitute: PCB321F595

[21] Contact

PCB315B800A

CAPILLARY

Contact

Notes: !D2.2XD3.2 L350

[22] Contact

PCB315B805

CAPILLARY

Contact

Notes: !D1.2XD3.2 L500

[23] In Stock

SSA357A008BW

STRAINER

[24] In Stock

SSA382A250

2WAY, VALVE

Notes: SV Show Image

[24-27] Out of Stock

PCB321D938A

PIPE L

Substitute: PCB321F595A

[25] Contact

PCB315B800

CAPILLARY

Contact

Notes: !D2.2XD3.2 L350

[26] Contact

PCB315B801A

CAPILLARY

Contact

Notes: !D1.1XD3.2 L500

[27] In Stock

SSA357A008BW

STRAINER

[28] In Stock

SSA532A032GR

SWITCH HP

Notes: 63H1-1,2 Show Image

[29] In Stock

SSA532A032GS

SWITCH HP

Notes: 63H1-2 Show Image

[30] In Stock

AGT201A828DS

COMPRESSOR

Notes: GT-C5150ND78A, GT-C5150ND78A ***COMPRESSORS CANNOT BE RETURNED***

[31] Contact

SSA352A105P

RECEIVER ASSY

Contact

Substitute: OUT OF PRODUCTION Notes: KXE4A & KXRE4A FUSIBLE PLUG PCB006A113Y/SSA327A008

[32] In Stock

SSA351A228

ACCUMULATOR

[33] In Stock

PCB315B303D

CAPILLARY

Notes: !D2.2XD3.2 L300 Show Image

[34] In Stock

PCB315B303C

CAPILLARY

Notes: !D2.2XD3.2 L300, LENGTH 6.5CM Show Image

[35] Contact

SSA381A828

VALVE.SERV

Contact

Notes: LIQ.

[36] In Stock

SSA357A005A

STRAINER

Show Image

[37] In Stock

PCA541B031

HEATER ASSY(CRANK)

Show Image

[38] In Stock

PCA541B011AD

HEATER ASSY

[39] In Stock

SSA941C356

CUSHION,RUBBER

Notes: 1pc only Show Image

[40] In Stock

SSA914C033

NUT

Notes: 1pc

[41] Contact

SSA915H039A

WASHER

Contact

Notes: 1pc ONLY

[42] Contact

SSA914C003

NUT

Contact

Notes: 1pc

[43] In Stock

AGT947K100

COVER TERMINAL

Show Image

[44] In Stock

AGT932C100

GASKET COVER

Show Image

[45] In Stock

PCA151D034

INSULATO CO

[46] Contact

PCB151D088

INSULATION

Contact

[47] Contact

PCB151D100

INSULATIO

Contact

[48] In Stock

PCB303A011

HEAT LIQ

[49] In Stock

SSA387F036

EXP VALVE

Notes: EEV, EEV(HEAT) or EEVH1-EEVH2 Show Image

[50] In Stock

SSA357A024C

STRAINER

Show Image

[51] In Stock

SSA382F210Z

COIL,SOLENO

Notes: FOR EEVSC, LENGTH 206CM Show Image

[52] Out of Stock

PCB382F092C

COIL ASSY,S

Notes: FOR SV6, SV6 SOLENOID

[53] In Stock

PCB382F092D

COIL ASSY,S

Notes: FOR SV7, SV7 SOLENOID Show Image

[54] In Stock

PCB382F092H

COIL ASSY,S

Notes: FOR 20S, 20S SOLENOID COIL/ LENGTH 140.5CM Show Image

[55] In Stock

PCB382F092J

COIL ASSY,S

Notes: FOR 20SL, 20SL SOLENOID COIL Show Image

[56] In Stock

PCB382F092K

COIL ASSY,S

Notes: FOR SV11, SV11 SOLENOID COIL Show Image

[57] In Stock

PCB504A223MA

WIRING ASSY

Notes: !CM1 U Show Image

[58] In Stock

PCB504A223MB

WIRING ASSY

Notes: !CM1 V Show Image

[59] In Stock

PCB504A223MC

WIRING ASSY

Notes: !CM1 W, !CM1 W‚ / LENGTH 87CM Show Image

[60] In Stock

PCB504A223PA

WIRING ASSY

Notes: !CM2 U, !CM2 U‚ - RED Show Image

[61] In Stock

PCB504A223PB

WIRING ASSY

Notes: !CM2 V, !CM2 V‚ / LENGTH 136CM - White Show Image

[62] In Stock

PCB504A223PC

WIRING ASSY

Notes: !CM2 W
