FDCA450HKXE4R PIPING

FDCA450HKXE4R PIPING

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

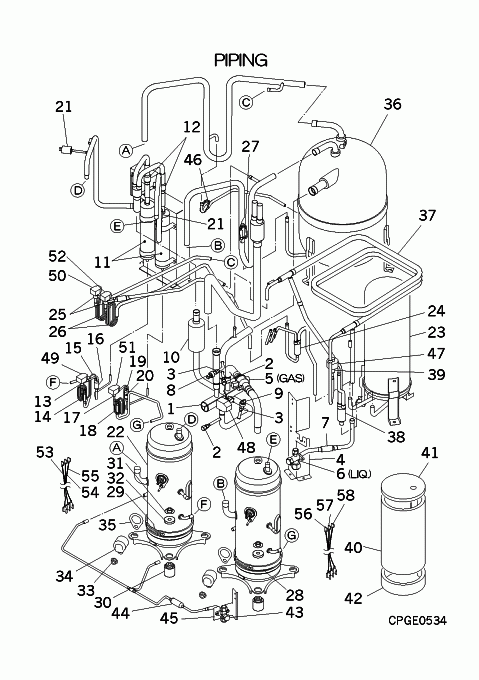

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
SSA382C075
VALVE 4WAY
Notes: 20S, 20s - 4 way valve
[2] In Stock
SSA327B067
VALVE,SERVICE
SSA327B067
[3] Out of Stock
SSA327B067A
VALVE,SERVI
[4] Out of Stock
PCB116A479
BRACKET
[5] In Stock
SSA381A748A
VALVE,SERVICE
Notes: GAS Show Image
SSA381A748A
[6] In Stock
PCB381A080
VALVE SERVI
Notes: LIQ., LIQ Show Image
PCB381A080
[7] In Stock
SSA357A007A
STRAINER
SSA357A007A
[8] In Stock
SSA551D022C
SENSOR LP
Notes: LOW PRESSURE TRANSDUCER Show Image
SSA551D022C
[9] In Stock
SSA551D024A
SENSOR HP
Notes: HIGH PRESSURE TRANSDUCER, HIGH PRESSURE TRANSDUCER - PSH Show Image
SSA551D024A
[10] Contact
SSA325A001CL
PIPE,SHELL
Contact
[11] Contact
SSA325A033C
PIPE SHELL
Contact
[11-20] Out of Stock
PCB354A033
OIL SEPARATOR
[11-21] In Stock
PCB354A032
SEPARATOR ASSY,OIL
[12] In Stock
SSA385A018A
VALVE CHECK
[13] In Stock
SSA382A250
2WAY, VALVE
Notes: SV Show Image
SSA382A250
[13-16] Out of Stock
PCB321D982
PIPE L
Substitute: PCB321F595
[14] Contact
PCB315B800A
CAPILLARY
Contact
Notes: !D2.2XD3.2 L350
[15] Contact
PCB315B805
CAPILLARY
Contact
Notes: !D1.2XD3.2 L500
[16] In Stock
SSA357A008BW
STRAINER
[17] In Stock
SSA382A250
2WAY, VALVE
Notes: SV Show Image
SSA382A250
[17-20] Out of Stock
PCB321D938A
PIPE L
Substitute: PCB321F595A
[18] Contact
PCB315B800
CAPILLARY
Contact
Notes: !D2.2XD3.2 L350
[19] Contact
PCB315B801A
CAPILLARY
Contact
Notes: !D1.1XD3.2 L500
[20] In Stock
SSA357A008BW
STRAINER
[21] In Stock
SSA532A032GR
SWITCH HP
Notes: 63H1-1,2 Show Image
SSA532A032GR
[22] In Stock
AGT201A828DS
COMPRESSOR
Notes: GT-C5150ND78A, GT-C5150ND78A ***COMPRESSORS CANNOT BE RETURNED*** compressor pre-charged with 1.45L of oil
[23] Contact
SSA352A105P
RECEIVER ASSY
Contact
Substitute: OUT OF PRODUCTION Notes: KXE4A & KXRE4A FUSIBLE PLUG PCB006A113Y/SSA327A008
[24] In Stock
SSA357A024
STRAINER
SSA357A024
[25] In Stock
SSA382A250
2WAY, VALVE
Notes: SV Show Image
SSA382A250
[25-26] Contact
PCB382A153
VALVE ASSY(
Contact
Substitute: OUT OF PRODUCTION
[26] Contact
PCB315B817
CAPILLARY
Contact
Notes: !D1.6XD3.2 L500, !D1.3XD3.2 L500
[27] In Stock
PCB315B303D
CAPILLARY
Notes: !D2.2XD3.2 L300 Show Image
PCB315B303D
[28] In Stock
PCA541B031
HEATER ASSY(CRANK)
PCA541B031
[29] In Stock
PCA541B011AD
HEATER ASSY
[30] In Stock
SSA941C356
CUSHION,RUBBER
Notes: 1pc only Show Image
SSA941C356
[31] In Stock
SSA914C033
NUT
Notes: 1pc
[32] Contact
SSA915H039A
WASHER
Contact
Notes: 1pc ONLY
[33] Contact
SSA914C003
NUT
Contact
Notes: 1pc
[34] Out of Stock
AGR947K002
TERMINAL C
[35] Out of Stock
AGR932C001
GASKET
Substitute: OUT OF PRODUCTION
[36] In Stock
SSA351A228
ACCUMULATOR
[37] In Stock
PCB303A011
HEAT LIQ
[38] In Stock
SSA357A024C
STRAINER
SSA357A024C
[39] In Stock
SSA387F036
EXP VALVE
Notes: EEV, EEV(HEAT) or EEVH1-EEVH2 Show Image
SSA387F036
[40] Contact
PCB151D088
INSULATION
Contact
[41] In Stock
PCA151D034
INSULATO CO
[42] Contact
PCB151D100
INSULATIO
Contact
[43] Contact
PCB381A078
VALVE SERVI
Contact
[44] In Stock
SSA357A005A
STRAINER
SSA357A005A
[45] Contact
PCB116A527
BRACKET
Contact
[46] In Stock
PCB315B303C
CAPILLARY
Notes: !D2.2XD3.2 L300, LENGTH 6.5CM Show Image
PCB315B303C
[47] In Stock
SSA382F210Z
COIL,SOLENO
Notes: FOR EEVSC, LENGTH 206CM Show Image
SSA382F210Z
[48] In Stock
PCB382F092
COIL ASSY,S
Notes: FOR 20S Show Image
PCB382F092
[49] Out of Stock
PCB382F092C
COIL ASSY,S
Notes: FOR SV6, SV6 SOLENOID
[50] In Stock
PCB382F092F
COIL ASSY,S
Notes: FOR SV1 Show Image
PCB382F092F
[51] In Stock
PCB382F092D
COIL ASSY,S
Notes: FOR SV7, SV7 SOLENOID Show Image
PCB382F092D
[52] In Stock
PCB382F092G
COIL ASSY,S
Notes: FOR SV2 Show Image
PCB382F092G
[53] In Stock
PCB504A223MA
WIRING ASSY
Notes: !CM1 U Show Image
PCB504A223MA
[54] In Stock
PCB504A223MB
WIRING ASSY
Notes: !CM1 V Show Image
PCB504A223MB
[55] In Stock
PCB504A223MC
WIRING ASSY
Notes: !CM1 W, !CM1 W‚ / LENGTH 87CM Show Image
PCB504A223MC
[56] In Stock
PCB504A223PA
WIRING ASSY
Notes: !CM2 U, !CM2 U‚  - RED Show Image
PCB504A223PA
[57] In Stock
PCB504A223PB
WIRING ASSY
Notes: !CM2 V, !CM2 V‚ / LENGTH 136CM - White Show Image
PCB504A223PB
[58] In Stock
PCB504A223PC
WIRING ASSY
Notes: !CM2 W
