FDCA450HKXE4BR PIPING

FDCA450HKXE4BR PIPING

Available Parts

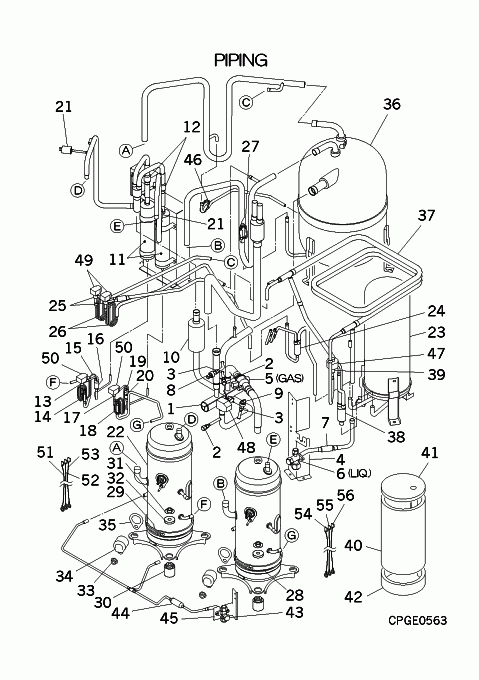

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] SSA382C086 VALVE,S(4WAY) In Stock Notes: 20S, 20S
  • [2] SSA327B067 VALVE,SERVICE In Stock Show Image
  • [3] SSA327B067A VALVE,SERVI Contact   Contact
  • [4] PCB116A479 BRACKET Contact   Contact
  • [5] SSA381A748A VALVE,SERVICE In Stock Notes: GAS Show Image
  • [6] PCB381A080 VALVE SERVI In Stock Notes: LIQ. Show Image
  • [7] SSA357A007A STRAINER In Stock Substitute: SSA357A005AH Show Image
  • [8] SSA551D022C SENSOR LP In Stock Substitute: SSA551D022B Notes: LOW PRESSURE TRANSDUCER, LOW PRESSURE TRANSDUCER Show Image
  • [9] SSA551D024A SENSER HP In Stock Notes: HIGH PRESSURE TRANSDUCER - PSH, HIGH PRESSURE TRANSDUCER Show Image
  • [10] SSA325A001CL PIPE,SHELL Contact   Contact
  • [11] PCA325A011C PIPE,SHELL Contact   Contact
  • [11-20] PCB354A047 OIL SEPARATOR In Stock
  • [11-21] PCB354A046 SEPARATOR ASSY,OIL Contact   Contact
  • [12] SSA385A018A VALVE CHECK In Stock
  • [13] SSA382A219 VALVE(2WAY) In Stock Notes: SV
  • [13-20] PCB321F943A PIPE ASSY Contact   Contact
  • [14] PCB315B831A CAPILLARY Contact Notes: !D2.2XD3.2 L340, !D2.2XD3.2 L340   Contact
  • [15] PCB315B805 CAPILLARY Contact Notes: !D1.2XD3.2 L500, !D1.2XD3.2 L500   Contact
  • [16] SSA357A008BW STRAINER In Stock
  • [17] SSA382A219 VALVE(2WAY) In Stock Notes: SV
  • [18] PCB315B831 CAPILLARY Contact Notes: !D2.2XD3.2 L340, !D2.2XD3.2 L340   Contact
  • [19] PCB315B801A CAPILLARY Contact Notes: !D1.1XD3.2 L500, !D1.1XD3.2 L500   Contact
  • [20] SSA357A008BW STRAINER In Stock
  • [21] SSA532A032GR SWITCH HP In Stock Substitute: SSA532A085GR Notes: 63H1-1,2 Show Image
  • [22] AGT201A828DS COMPRESSOR In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED****GT-C5150ND78A, GT-C5150ND78A
  • [23] SSA352A105P RECEIVER ASSY In Stock Notes: KXE4A AND KXRE4A FUSIBLE PLUG PCB006A113Y/SSA327A008
  • [24] SSA357A024 STRAINER In Stock Show Image
  • [25] SSA382A249A VALVE,S(2WAY) In Stock Notes: SV1, SV Show Image
  • [25-26] PCB382A195 VALVE ASSY(2WAY) Contact Notes: SV1,2   Contact
  • [26] PCB315B817 CAPILLARY Contact Notes: !D1.3XD3.2 L500, !D1.6XD3.2 L500   Contact
  • [27] PCB315B303D CAPILLARY In Stock Notes: !D2.2XD3.2 L300, !D2.2XD3.2 L300 Show Image
  • [28] PCA541B031 HEATER ASSY(CRANK) In Stock Show Image
  • [29] PCA541B011AD HEATER ASSY In Stock
  • [30] SSA941C356 CUSHION,RUBBER In Stock
  • [31] SSA914C013 NUT In Stock Notes: 1PC Show Image
  • [32] SSA915H039A WASHER Contact Notes: 1PC ONLY   Contact
  • [33] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [34] AGR947K002 TERMINAL C Contact   Contact
  • [35] AGR932C001 GASKET Contact   Contact
  • [36] SSA351A228 ACCUMULATOR In Stock
  • [37] PCB303A011 HEAT LIQ In Stock
  • [38] SSA357A024C STRAINER In Stock Show Image
  • [39] SSA387F036 EXP VALVE In Stock Notes: EEV(HEAT) OR EEVH1-EEVH2, EEV Show Image
  • [40] PCB151D088 INSULATION Contact   Contact
  • [41] PCA151D034 INSULATO CO Contact   Contact
  • [42] PCB151D100 INSULATIO Contact   Contact
  • [43] PCB381A078 VALVE SERVI Contact   Contact
  • [44] SSA357A005A STRAINER In Stock Substitute: ZZ60080A Show Image
  • [45] PCB116A527 BRACKET Contact   Contact
  • [46] PCB315B303C CAPILLARY In Stock Notes: !D2.2XD3.2 L300
  • [47] SSA382F210Z COIL,SOLENO In Stock Notes: FOR EEVSC
  • [48] PCB382F092T COIL ASSY,SOLENOID In Stock Notes: FOR 20S, FOR 20S
  • [49] PCB382F096BD COIL ASSY,SOLENOID Contact Notes: FOR SV1,2, FOR SV1,2   Contact
  • [50] PCB382F096BF COIL ASSY,SOLENOID In Stock Notes: FOR SV6,7, FOR SV6,7 Show Image
  • [51] PCB504A223MA WIRING ASSY In Stock Notes: !CM1 U, !CM1 U Show Image
  • [52] PCB504A223MB WIRING ASSY In Stock Notes: !CM1 V, !CM1 V Show Image
  • [53] PCB504A223MC WIRING ASSY In Stock Notes: !CM1 W, !CM1 W
  • [54] PCB504A223PA WIRING ASSY In Stock Notes: !CM2 U, !CM2 U Show Image
  • [55] PCB504A223PB WIRING ASSY In Stock Notes: !CM2 V, !CM2 V
  • [56] PCB504A223PC WIRING ASSY In Stock Notes: !CM2 W, !CM2 W
SKU: FDCA450HKXE4BR PIPING Category:
