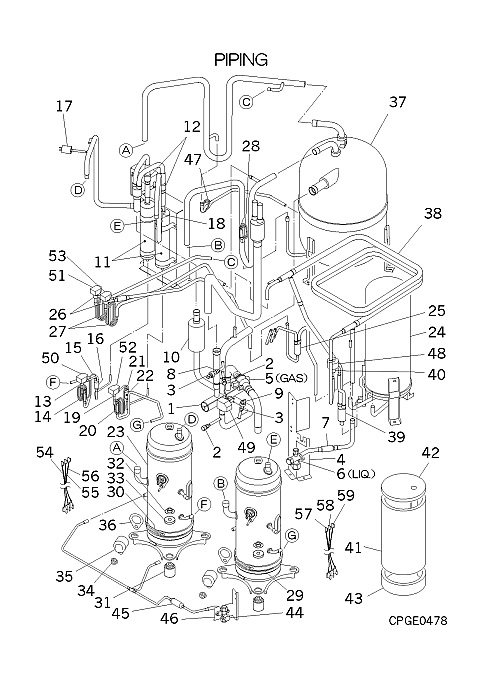

FDCA450HKXE4 PIPING

FDCA450HKXE4 PIPING

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] SSA382C075 VALVE 4WAY In Stock Notes: 20S - 4 WAY VALVE, 20S
  • [2] SSA327B067 VALVE,SERVICE In Stock Show Image
  • [3] SSA327B067A VALVE,SERVI Contact   Contact
  • [4] PCB116A479 BRACKET Contact   Contact
  • [5] SSA381A748A VALVE,SERVICE In Stock Notes: GAS Show Image
  • [6] PCB381A080 VALVE SERVI In Stock Notes: LIQ. Show Image
  • [7] SSA357A007A STRAINER In Stock Substitute: SSA357A005AH Show Image
  • [8] SSA551D022C SENSOR LP In Stock Substitute: SSA551D022B Notes: LOW PRESSURE TRANSDUCER, LOW PRESSURE TRANSDUCER Show Image
  • [9] SSA551D024A SENSER HP In Stock Notes: HIGH PRESSURE TRANSDUCER - PSH, HIGH PRESSURE TRANSDUCER Show Image
  • [10] SSA325A001CL PIPE,SHELL Contact   Contact
  • [11] SSA325A033C PIPE SHELL Contact   Contact
  • [11-21] PCB354A033 OIL SEPARATOR Contact   Contact
  • [12] SSA385A049 VALVE,CHECK Contact   Contact
  • [13] SSA382A250 2WAY, VALVE In Stock Notes: SV Show Image
  • [13-16] PCB321D982 PIPE L Contact Substitute: PCB321F595   Contact
  • [14] PCB315B800A CAPILLARY Contact Notes: !D2.2XD3.2 L350, !D2.2XD3.2 L350   Contact
  • [15] PCB315B805 CAPILLARY Contact Notes: !D1.2XD3.2 L500, !D1.2XD3.2 L500   Contact
  • [16] SSA357A008BW STRAINER In Stock
  • [17] SSA532A032GR SWITCH HP In Stock Substitute: SSA532A085GR Notes: 63H1-1,2 Show Image
  • [18] SSA532A032GS SWITCH HP In Stock Substitute: SSA532A085GS Notes: 63H1-2 Show Image
  • [19] SSA382A250 2WAY, VALVE In Stock Notes: SV Show Image
  • [19-22] PCB321D938A PIPE L Contact Substitute: PCB321F595A   Contact
  • [20] PCB315B800 CAPILLARY Contact Notes: !D2.2XD3.2 L350, !D2.2XD3.2 L350   Contact
  • [21] PCB315B801A CAPILLARY Contact Notes: !D1.1XD3.2 L500, !D1.1XD3.2 L500   Contact
  • [22] SSA357A008BW STRAINER In Stock
  • [23] AGT201A828DS COMPRESSOR In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED****GT-C5150ND78A, GT-C5150ND78A
  • [24] SSA352A105P RECEIVER ASSY In Stock Notes: KXE4A AND KXRE4A FUSIBLE PLUG PCB006A113Y/SSA327A008
  • [25] SSA357A024 STRAINER In Stock Show Image
  • [26] SSA382A250 2WAY, VALVE In Stock Notes: SV Show Image
  • [26-27] PCB382A153 VALVE ASSY( Contact Substitute: OUT OF PRODUCTION   Contact
  • [27] PCB315B784A CAPILLARY Contact Notes: !D1.3XD3.2 L500, !D1.3XD3.2 L500   Contact
  • [28] PCB315B303D CAPILLARY In Stock Notes: !D2.2XD3.2 L300, !D2.2XD3.2 L300 Show Image
  • [29] PCA541B031 HEATER ASSY(CRANK) In Stock Show Image
  • [30] PCA541B011AD HEATER ASSY In Stock
  • [31] SSA941C356 CUSHION,RUBBER In Stock
  • [32] SSA914C013 NUT In Stock Notes: 1PC Show Image
  • [33] SSA915H039A WASHER Contact Notes: 1PC ONLY   Contact
  • [34] SSA914C003 NUT Contact Notes: 1PC   Contact
  • [35] AGR947K002 TERMINAL C Contact   Contact
  • [37] SSA351A228 ACCUMULATOR In Stock
  • [38] PCB303A011 HEAT LIQ In Stock
  • [39] SSA357A024C STRAINER In Stock Show Image
  • [40] SSA387F036 EXP VALVE In Stock Notes: EEV(HEAT) OR EEVH1-EEVH2, EEV Show Image
  • [41] PCB151D088 INSULATION Contact   Contact
  • [42] PCA151D034 INSULATO CO Contact   Contact
  • [43] PCB151D100 INSULATIO Contact   Contact
  • [44] PCB381A078 VALVE SERVI Contact   Contact
  • [45] SSA357A005A STRAINER In Stock Substitute: ZZ60080A Show Image
  • [46] PCB116A527 BRACKET Contact   Contact
  • [47] PCB315B303C CAPILLARY In Stock Notes: !D2.2XD3.2 L300
  • [48] SSA382F210Z COIL,SOLENO In Stock Notes: FOR EEVSC
  • [49] PCB382F092 COIL ASSY,S In Stock Notes: FOR 20S Show Image
  • [50] PCB382F092C COIL ASSY,S In Stock Notes: SV6 SOLENOID, FOR SV6
  • [51] PCB382F092F COIL ASSY,S In Stock Notes: FOR SV1 Show Image
  • [52] PCB382F092D COIL ASSY,S In Stock Notes: SV7 SOLENOID, FOR SV7 Show Image
  • [53] PCB382F092G COIL ASSY,S In Stock Notes: FOR SV2 Show Image
  • [54] PCB504A223MA WIRING ASSY In Stock Notes: !CM1 U, !CM1 U Show Image
  • [55] PCB504A223MB WIRING ASSY In Stock Notes: !CM1 V, !CM1 V Show Image
  • [56] PCB504A223MC WIRING ASSY In Stock Notes: !CM1 W, !CM1 W
  • [57] PCB504A223PA WIRING ASSY In Stock Notes: !CM2 U, !CM2 U Show Image
  • [58] PCB504A223PB WIRING ASSY In Stock Notes: !CM2 V, !CM2 V
  • [59] PCB504A223PC WIRING ASSY In Stock Notes: !CM2 W, !CM2 W
SKU: FDCA450HKXE4 PIPING Category:
