FDCA401HESR PANEL ASSY

FDCA401HESR PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

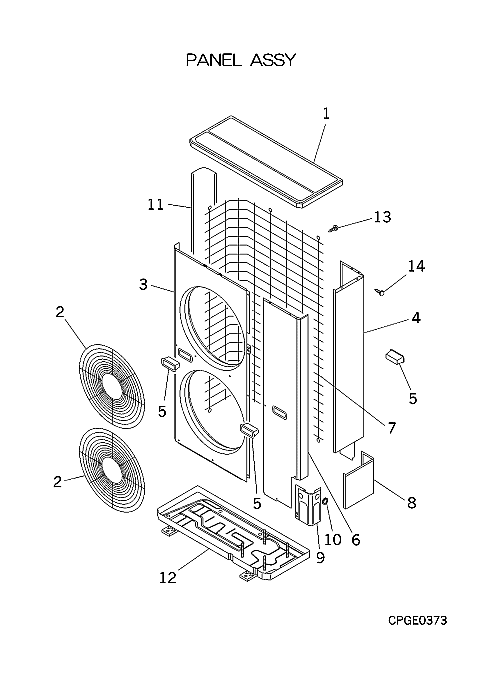

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCA124A008A
PANEL TOP
[2] Out of Stock
PCA131A021B
GUARD FAN
[3] In Stock
PCA122A027J
PANEL FRONT
[4] In Stock
PCA125A017A
PANEL REAR
[5] In Stock
SSA944B031A
HANDLE
SSA944B031A
[6] In Stock
PCA122A028A
PANAL SERVI
[7] Contact
PCA131A035A
GUARD,FIN
Contact
[8] In Stock
PCA142A064
COVER SIDE
[9-10] In Stock
PCA142A065F
COVER,FRONT
Notes: SMALL CORNER PANEL, BOTTOM FRONT/RIGHT SIDE Show Image
PCA142A065F
[10] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[11] In Stock
PCA115A014A
SUPPORT
[12] Contact
PCA111A026AD
BASE ASSY
Contact
[13] Contact
SSA913D012A
SCREW 5/14
Contact
Notes: 5X14, 1pc ONLY
[14] Contact
SSA913D012
SCREW 5X10
Contact
Notes: 5X10, 1pc ONLY
