FDCA401HES CONTROL AND PARTS SET

FDCA401HES CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

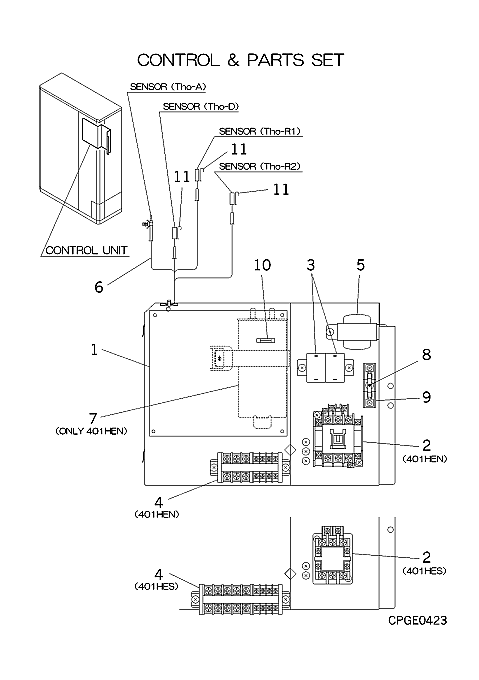

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

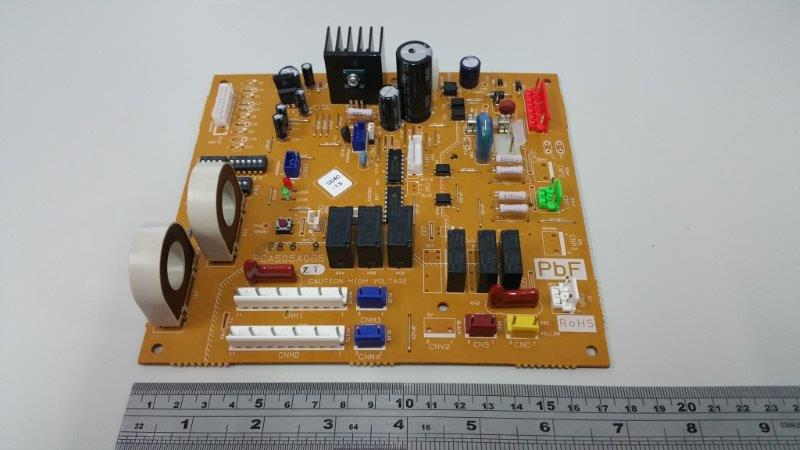

PCA505A065ZT
PWB ASSY
Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION - OUTDOOR PC BOARD Show Image
PCA505A065ZT
[1-10] Contact
PCA501A128D
CONTROL UNIT
Contact
Notes: NOT AVAILABLE
[2] In Stock
SSA521A193A
CONTACTOR
Notes: 52C, COMPRESSOR CONTACTOR Show Image
SSA521A193A
[3] In Stock
SSA552A260B
CAPACITOR
Notes: CF 5MF 440VAC Show Image
SSA552A260B
[4] Contact
SSA561B711B
BLOCK,TERMI
Contact
Notes: TB
[5] Out of Stock

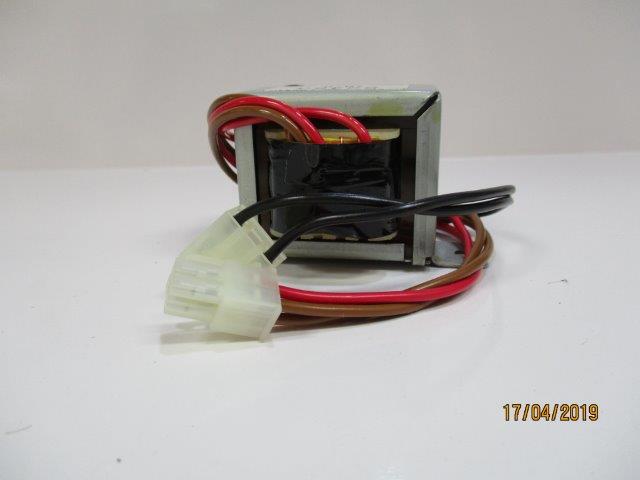

SSA554A453
TRANSFORMER
Substitute: OUT OF PRODUCTION Notes: TRO, OUT OF PRODUCTION Show Image
SSA554A453
[6] In Stock

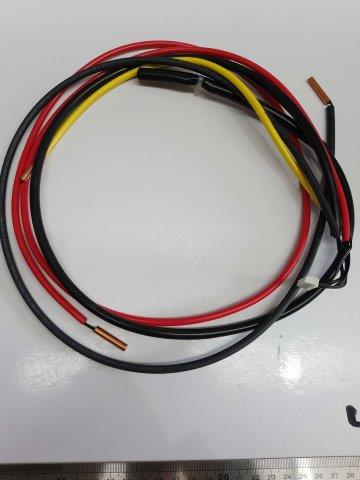

PCA551A025
SENSOR ASSY
Notes: THO-R1,R2,D,A, THO-R1,R2,D,A/ LENGTH 125.5CM Show Image
PCA551A025
[8] In Stock
E200Y10C
FUSE
Notes: 10A, 10 AMP Show Image
E200Y10C
[9] In Stock
SSA564B013
HOLDER.FUSE
Show Image
SSA564B013
[10] In Stock
SSA564A072C
FUSE
Notes: 3.15A, 3.15 Amps Show Image
SSA564A072C
[11] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
[12-14] Contact
PCA008A214D
PARTS SET
Contact
[13] Contact
PSC011G477A
LABEL,WIRING
Contact
[14] Contact
PSA011F944D
LABEL,MODEL NAME
Contact
SKU: FDCA401HES CONTROL AND PARTS SET Category:
