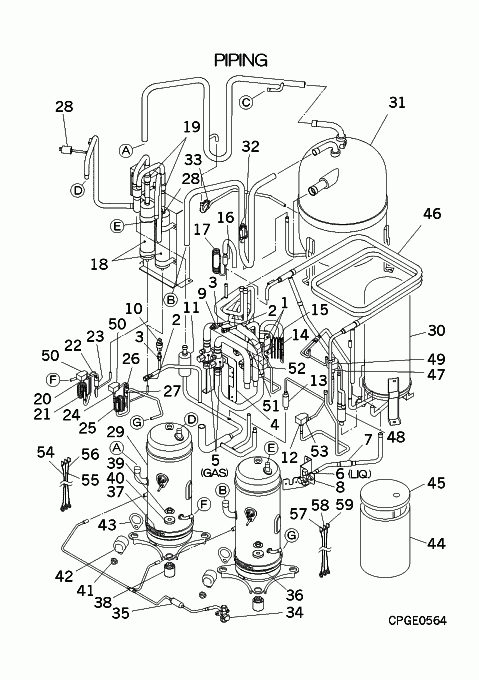

FDCA335HKXRE4BRK PIPING

FDCA335HKXRE4BRK PIPING

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
SSA382C096A
VALVE, S(4WAY)
Notes: 20S,20SL, Reversing Valve Body
[2] In Stock
SSA327B067
VALVE,SERVICE
SSA327B067
[3] Out of Stock
SSA327B067A
VALVE,SERVI
[4] Contact
PCB116A578
BRACKET
Contact
[5] In Stock
SSA381A748A
VALVE,SERVICE
Notes: GAS Show Image
SSA381A748A
[6] Contact
SSA381A842
VALVE,SERVICE(1/2"
Contact
Notes: LIQ.
[7] In Stock
SSA357A007A
STRAINER
SSA357A007A
[8] Contact
PCB116A579
BRACKET
Contact
[9] In Stock
SSA551D022C
SENSOR LP
Notes: PSL, LOW PRESSURE TRANSDUCER Show Image
SSA551D022C
[10] In Stock
SSA551D024A
SENSOR HP
Notes: PSH, HIGH PRESSURE TRANSDUCER - PSH Show Image
SSA551D024A
[11] Contact
SSA325A001CL
PIPE,SHELL
Contact
[12] In Stock
SSA382A249A
VALVE,S(2WAY)
Notes: SV11, SV1 Show Image
SSA382A249A
[12-13] Contact
PCB382A198A
VALVE ASSY(2WAY)
Contact
[13] In Stock
SSA357A059T
STRAINER
SSA357A059T
[14] In Stock
SSA357A005C
STRAINER
SSA357A005C
[14-15] In Stock
PCB321F270
PIPE ASSY
[15] Contact
PCB315B812
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[16] In Stock
SSA357A005C
STRAINER
SSA357A005C
[16-17] In Stock
PCB321F270A
PIPE ASSY
[17] Contact
PCB315B812A
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[18] Contact
PCA325A011C
PIPE,SHELL
Contact
[18-27] In Stock
PCB354A047
OIL SEPARATOR
[18-28] Contact
PCB354A046
SEPARATOR ASSY,OIL
Contact
Substitute: PCB354A046A
[19] In Stock
SSA385A018A
VALVE CHECK
[20] In Stock
SSA382A219
VALVE(2WAY)
Notes: SV6, LENGTH 7.5CM Show Image
SSA382A219
[20-23] Contact
PCB321F790
PIPE ASSY
Contact
[21] Contact
PCB315B831A
CAPILLARY
Contact
Notes: !D2.2XD3.2 L340
[22] Contact
PCB315B805
CAPILLARY
Contact
Notes: !D1.2XD3.2 L500
[23] In Stock
SSA357A008BW
STRAINER
[24] In Stock
SSA382A219
VALVE(2WAY)
Notes: SV7, LENGTH 7.5CM Show Image
SSA382A219
[24-27] In Stock
PCB321F687
PIPE ASSY
[25] Contact
PCB315B831
CAPILLARY
Contact
Notes: !D2.2XD3.2 L340
[26] Contact
PCB315B801A
CAPILLARY
Contact
Notes: !D1.1XD3.2 L500
[27] In Stock
SSA357A008BW
STRAINER
[28] In Stock
SSA532A032GR
SWITCH HP
Notes: 63H1-1,2 Show Image
SSA532A032GR
[29] In Stock
AGT201A828DS
COMPRESSOR
Notes: GT-C5150ND78A, GT-C5150ND78A ***COMPRESSORS CANNOT BE RETURNED*** compressor pre-charged with 1.45L of oil
[30] Contact
SSA352A105P
RECEIVER ASSY
Contact
Substitute: OUT OF PRODUCTION Notes: KXE4A & KXRE4A FUSIBLE PLUG PCB006A113Y/SSA327A008
[31] In Stock
SSA351A228
ACCUMULATOR
[32] In Stock
PCB315B303D
CAPILLARY
Notes: !D2.2XD3.2 L300 Show Image
PCB315B303D
[33] In Stock
PCB315B303C
CAPILLARY
Notes: !D2.2XD3.2 L300, LENGTH 6.5CM Show Image
PCB315B303C
[34] In Stock
SSA381A855
SERVICE VALVE
Notes: GAS Show Image
SSA381A855
[35] In Stock
SSA357A005A
STRAINER
SSA357A005A
[36] In Stock
PCA541B031
HEATER ASSY(CRANK)
PCA541B031
[37] In Stock
PCA541B011AD
HEATER ASSY
[38] In Stock
SSA941C356
CUSHION,RUBBER
Notes: 1pc only Show Image
SSA941C356
[39] In Stock
SSA914C033
NUT
Notes: 1pc
[40] Contact
SSA915H039A
WASHER
Contact
Notes: 1pc ONLY
[41] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[42] In Stock
AGT947K100
COVER TERMINAL
AGT947K100
[43] In Stock
AGT932C100
GASKET COVER
AGT932C100
[44] Contact
PCB151D088
INSULATION
Contact
[45] In Stock
PCA151D034
INSULATO CO
[46] In Stock
PCB303A011
HEAT LIQ
[47] In Stock
SSA387F036
EXP VALVE
Notes: EEVSC, EEV(HEAT) or EEVH1-EEVH2 Show Image
SSA387F036
[48] In Stock
SSA357A024C
STRAINER
SSA357A024C
[49] In Stock
SSA382F210Z
COIL,SOLENO
Notes: FOR EEVSC, LENGTH 206CM Show Image
SSA382F210Z
[50] In Stock
PCB382F096BF
COIL ASSY,SOLENOID
Notes: FOR SV6,7 Show Image
PCB382F096BF
[51] In Stock
PCB382F092P
COIL
Notes: FOR 20S, 20S Show Image
PCB382F092P
[52] In Stock
PCB382F092R
COIL ASSY
Notes: FOR 20SL Show Image
PCB382F092R
[53] In Stock
PCB382F096BC
COIL ASSY,SOLENOID
Notes: FOR SV11 Show Image
PCB382F096BC
[54] In Stock
PCB504A223MA
WIRING ASSY
Notes: !CM1 U Show Image
PCB504A223MA
[55] In Stock
PCB504A223MB
WIRING ASSY
Notes: !CM1 V Show Image
PCB504A223MB
[56] In Stock
PCB504A223MC
WIRING ASSY
Notes: !CM1 W, !CM1 W‚ / LENGTH 87CM Show Image
PCB504A223MC
[57] In Stock
PCB504A223PA
WIRING ASSY
Notes: !CM2 U, !CM2 U‚  - RED Show Image
PCB504A223PA
[58] In Stock
PCB504A223PB
WIRING ASSY
Notes: !CM2 V, !CM2 V‚ / LENGTH 136CM - White Show Image
PCB504A223PB
[59] In Stock
PCB504A223PC
WIRING ASSY
Notes: !CM2 W
