FDCA335HKXRE4 CONTROL AND PARTS SET

FDCA335HKXRE4 CONTROL AND PARTS SET

Available Parts

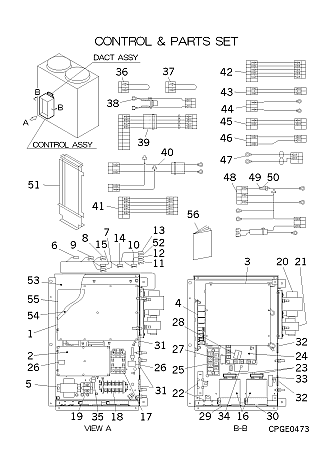

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCB505A042RC PWB ASSY (CONTROL) In Stock Notes: PWB1 - ALSO KNOWN AS MAIN, PWB1 Show Image
  • [1-50] PCB501A177FC CONTROL UNIT Contact   Contact
  • [2] PCB505A041YD PWB ASSY (EEV) In Stock Notes: PWB4 EEV, PWB4 Show Image
  • [3] PCB505A044ZA PWB ASSY(IN In Stock Notes: PWB2 INVERTER, PWB2 Show Image
  • [4] PCB505A035B PWB ASSY(N. In Stock Notes: PWB3 NOISE FILTER, PWB3 Show Image
  • [5] PCB554A014D TRANSFOMER In Stock Notes: TRO Show Image
  • [6] PCB551A025A SENSOR TH A In Stock Notes: THO-A, THO-A Show Image
  • [7] PCB551A025B SENSOR T D1 In Stock Notes: THO-D1, THO-D1 Show Image
  • [8] PCB551A025D SENSOR T S In Stock Notes: THO-S THERMISTOR (SUCTION PIPE), THO-S Show Image
  • [9] PCB551A025F SENSOR ASSY In Stock Notes: THO-C1, THO-C1
  • [10] PCB551A025H SENSOR T R1 In Stock Notes: THO-R1, THO-R1 Show Image
  • [11] PCB551A025J SENSOR T R2 In Stock Notes: THO-R2, THO-R2 Show Image
  • [12] PCB551A025K SENSOR T R3 In Stock Notes: THO-R3, THO-R3 Show Image
  • [13] PCB551A025L SENSOR T R4 In Stock Notes: THO-R4, THO-R4 Show Image
  • [14] PCB551A025M SENSOR ASSY In Stock Notes: THO-SC, THO-SC Show Image
  • [15] PCB551A025N SENSOR ASSY In Stock Notes: THO-H, THO-H Show Image
  • [16] SSA552F521B CAPACITOR Out of Stock Notes: 400V 3900UF, C1,C2 Show Image
  • [17] SSA521A189C CONTACTOR In Stock Notes: 220-240V 50HZ, 240-260V 60HZ, 52C1,2 Show Image
  • [18] SSA561B687 BLOCK,TERMI In Stock Notes: TB1 Show Image
  • [19] SSA561B716AC BLOCK TERMI In Stock Notes: TBX or TB2 Show Image
  • [20] SSA554B044A REACTOR In Stock Substitute: SSA554B100A Notes: L1
  • [21] SSA554B073 REACTOR In Stock Notes: L3 Show Image
  • [22] SSA553A379 RESISTOR In Stock Notes: 15O (OHM), R1-1,2,R2-1,2 Show Image
  • [23] SSA553A380 RESISTOR In Stock Notes: 30 KO (KILO-OHM), R1-3,4,R2-3,4
  • [24] PCB008A120A TRANSISTOR In Stock Notes: IPM (INTELLIGENT POWER MODULE) / POWER TRANSISTOR, TM
  • [25] PCB008A121A DIODE STACK In Stock Notes: AKA DIODE MODULE, DM Show Image
  • [26] SSA554D099 NOIZU KILLE In Stock
  • [27] PCB555B003A VARISTOR In Stock Show Image
  • [28] PCB552F006 CAPACITOR A In Stock
  • [29] S751W20X GROMMET Contact Notes: D25   Contact
  • [30] SSA947A002P GROMMET Contact Notes: D80   Contact
  • [31] SSA947B017 GROMMET Contact   Contact
  • [32] S751W25X GROMMET In Stock Notes: D30 Show Image
  • [33] SSA552D040Y FILTER,NOISE In Stock Notes: FOR COMP.WIRING Show Image
  • [34] SSA551A192D SENSOR ASSY In Stock Notes: THO-TR1 AKA THO-P1 (IPM TEMP THERMISTOR), THO-TR1 Show Image
  • [35] PCB552D006A KILLER,NOIS Contact   Contact
  • [36] PCB504A172AK WIRING ASSY In Stock Notes: PWB1 CNS2 (PWB1 CNG1 FOR FDCA224HXKE4), PWB1 CNG1 or CNS2 Show Image
  • [37] PCB504A172AM WIRING ASSY In Stock Notes: PWB1 CNG2, PWB1 CNG2 Show Image
  • [38] PCB504A231BA WIRING ASSY In Stock Notes: DM,DM-PWB2 CNR. GREEN BLACK CABLE PLUG ON 1 SIDE AND 2 LUGGS ON OTHER SIDE - SMALL BLACK SLEEVE CONNECTED, DM,DM-PWB2 CNR
  • [39] PCB504A231BH WIRING ASSY In Stock Notes: PWB1 CNI1-PWB2 CNN2, PWB1 CNI1-PWB2 CNN2 Show Image
  • [40] PCB504A231BL WIRING ASSY In Stock Notes: PWB4 CN01,CNDCW1-PWB2 TB2,PWB2 TB2
  • [41] PCB504A231AP WIRING ASSY In Stock Notes: PWB1 CNT1-PWB4 CNT1 Show Image
  • [42] PCB504A231AR WIRING ASSY In Stock Notes: PWB1 CNT2-PWB4 CNT2
  • [43] PCB504A231R WIRING ASSY Contact Notes: PWB1 CNZ1-PWB4 CNZ1   Contact
  • [44] PCB504A231Z WIRING ASSY Contact Notes: PWB1 CNM1-52C1,52C1   Contact
  • [45] PCB504A231BK WIRING ASSY In Stock Notes: PWB4 CNI3-PWB1 CNI3
  • [46] PCB504A231BM WIRING ASSY In Stock Notes: PWB4 CN02-CNDCW2
  • [47] PCB504A231DY WIRING ASSY Out of Stock Notes: TB2,TB2-PWB1 CNX1
  • [48-50] PCB504A231DZ WIRING ASSY Contact Notes: PWB1 CNW1,PWB3,TB1,L3,L3-52C1,52C1,PWB4 CNW1,52C1   Contact
  • [49] SSA564A072C FUSE In Stock Notes: 3.15 AMPS, 3.15A Show Image
  • [50] SSA564B059 HOLDER,FUSE In Stock Show Image
  • [51] PCB438A013 DUCT ASSY Contact   Contact
  • [52] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR SENSOR Show Image
  • [53-55] PCB119A232AD PLATE Contact   Contact
  • [54] PSC011G513 LABEL,WIRING Contact Notes: !BACK ATTACHMENT, !BACK ATTACHMENT   Contact
  • [55] PSC011G473A LABEL,WIRING Contact Notes: !SURFACE ATTACHMENT, !SURFACE ATTACHMENT   Contact
  • [56] PCA012A001 MANUAL,INSTRUCTION Contact   Contact
  • [57] PSA011F919AN LABEL,MODEL NAME Contact   Contact
