FDCA280HKXRE4BR PIPING

FDCA280HKXRE4BR PIPING

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

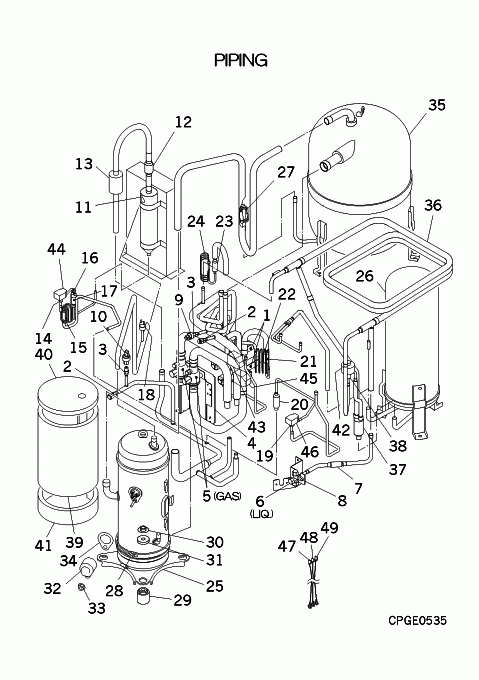

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
SSA382C096A
VALVE, S(4WAY)
Notes: 20S,20SL, Reversing Valve Body
[2] In Stock
SSA327B067
VALVE,SERVICE
SSA327B067
[3] Out of Stock
SSA327B067A
VALVE,SERVI
[4] Contact
PCB116A578
BRACKET
Contact
[5] In Stock
SSA381A748A
VALVE,SERVICE
Notes: GAS Show Image
SSA381A748A
[6] In Stock
SSA381A855
SERVICE VALVE
Notes: LIQ., GAS Show Image
SSA381A855
[7] In Stock
SSA357A007A
STRAINER
SSA357A007A
[8] Contact
PCB116A579
BRACKET
Contact
[9] In Stock
SSA551D022C
SENSOR LP
Notes: LOW PRESSURE TRANSDUCER Show Image
SSA551D022C
[10] In Stock
SSA551D024A
SENSOR HP
Notes: HIGH PRESSURE TRANSDUCER, HIGH PRESSURE TRANSDUCER - PSH Show Image
SSA551D024A
[11] Contact
PCA325A011C
PIPE,SHELL
Contact
[11-13] Contact
PCB354A041
OIL SEPARATOR
Contact
[11-18] Contact
PCB354A040
SEPARATOR ASSY,OIL
Contact
[12] Contact
SSA385A032
VALVE CHECK
Contact
[13] Contact
SSA325A001CG
PIPE,SHELL
Contact
[14] In Stock
SSA382A219
VALVE(2WAY)
Notes: SV, LENGTH 7.5CM Show Image
SSA382A219
[14-17] In Stock
PCB321F687
PIPE ASSY
[15] Contact
PCB315B831
CAPILLARY
Contact
Notes: !D2.2XD3.2 L340
[16] Contact
PCB315B801A
CAPILLARY
Contact
Notes: !D1.1XD3.2 L500
[17] In Stock
SSA357A008BW
STRAINER
[18] In Stock
SSA532A032GR
SWITCH HP
Notes: 63H1-1,2 Show Image
SSA532A032GR
[19] In Stock
SSA382A249A
VALVE,S(2WAY)
Notes: SV, SV1 Show Image
SSA382A249A
[20] In Stock
SSA357A059T
STRAINER
SSA357A059T
[21] In Stock
SSA357A005C
STRAINER
SSA357A005C
[21-22] In Stock
PCB321F270
PIPE ASSY
[22] Contact
PCB315B812
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[23] In Stock
SSA357A005C
STRAINER
SSA357A005C
[23-24] In Stock
PCB321F270A
PIPE ASSY
[24] Contact
PCB315B812A
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[25] In Stock
AGT201A727DP
COMPRESSOR
Notes: GTC5150ND75K, ***COMPRESSORS CANNOT BE RETURNED***
[26] Contact
SSA352A105P
RECEIVER ASSY
Contact
Substitute: OUT OF PRODUCTION Notes: KXE4A & KXRE4A FUSIBLE PLUG PCB006A113Y/SSA327A008
[27] In Stock
PCB315B303D
CAPILLARY
Notes: !D2.2XD3.2 L300 Show Image
PCB315B303D
[28] In Stock
PCA541B031
HEATER ASSY(CRANK)
PCA541B031
[29] In Stock
SSA941C356
CUSHION,RUBBER
Notes: 1pc only Show Image
SSA941C356
[30] In Stock
SSA914C033
NUT
Notes: 1pc
[31] Contact
SSA915H039A
WASHER
Contact
Notes: 1pc ONLY
[32] In Stock
AGT947K100
COVER TERMINAL
AGT947K100
[33] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[34] In Stock
AGT932C100
GASKET COVER
AGT932C100
[35] In Stock
SSA351A228A
ACCUMULATOR
[36] In Stock
PCB303A011
HEAT LIQ
[37] In Stock
SSA357A024C
STRAINER
SSA357A024C
[38] In Stock
SSA387F051
VALVE,BODY(EXP)
Notes: EEV, 'BODY' ONLY. Does NOT include coil
[39] Contact
PCB151D088
INSULATION
Contact
[40] In Stock
PCA151D034
INSULATO CO
[41] Contact
PCB151D100
INSULATIO
Contact
[42] In Stock
SSA382F210Z
COIL,SOLENO
Notes: FOR EEVSC, LENGTH 206CM Show Image
SSA382F210Z
[43] In Stock
PCB382F092P
COIL
Notes: FOR 20S, 20S Show Image
PCB382F092P
[44] Contact
PCB382F096BB
COIL ASSY,SOLENOID
Contact
Notes: FOR SV6
[45] In Stock
PCB382F092R
COIL ASSY
Notes: FOR 20SL Show Image
PCB382F092R
[46] In Stock
PCB382F096BC
COIL ASSY,SOLENOID
Notes: FOR SV11 Show Image
PCB382F096BC
[47] Out of Stock
PCB504A231DG
HARNESS ASSY
Notes: !U Show Image
PCB504A231DG
[48] Out of Stock
PCB504A231DH
HARNESS ASSY
Notes: !V Show Image
PCB504A231DH
[49] In Stock
PCB504A231DJ
HARNESS ASSY
Notes: !W Show Image
PCB504A231DJ
