FDCA280HKXE4BR PIPING

Name: FDCA280HKXE4BR PIPING
SKU: FDCA280HKXE4BR PIPING
Availability: InStock

FDCA280HKXE4BR PIPING

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

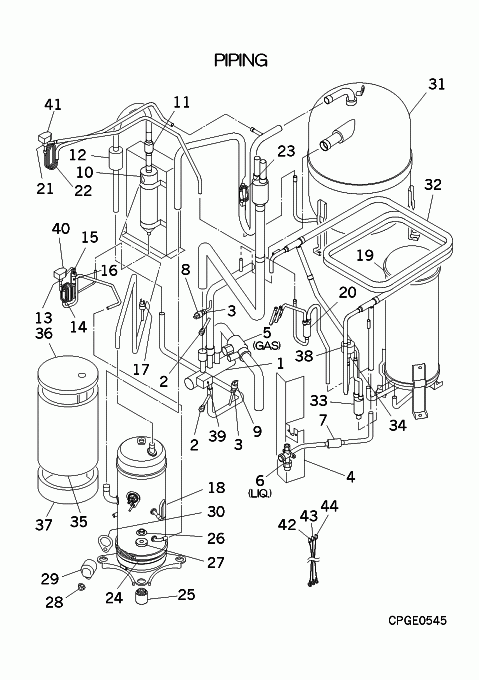

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

SSA382C086

VALVE,S(4WAY)

Notes: 20S

[2] In Stock

SSA327B067

VALVE,SERVICE

Show Image

[3] Out of Stock

SSA327B067A

VALVE,SERVI

[4] Out of Stock

PCB116A479

BRACKET

[5] In Stock

SSA381A748A

VALVE,SERVICE

Notes: GAS Show Image

[6] Out of Stock

PCB381A076A

VALVE,SERVI

Notes: LIQ.

[7] In Stock

SSA357A007A

STRAINER

Show Image

[8] In Stock

SSA551D022C

SENSOR LP

Notes: LOW PRESSURE TRANSDUCER Show Image

[9] In Stock

SSA551D024A

SENSOR HP

Notes: HIGH PRESSURE TRANSDUCER, HIGH PRESSURE TRANSDUCER - PSH Show Image

[10] Contact

PCA325A011C

PIPE,SHELL

Contact

[10-12] Contact

PCB354A045A

OIL SEPARATOR

Contact

[10-17] Contact

PCB354A044A

SEPARATOR ASSY,OIL

Contact

[11] In Stock

SSA385A018A

VALVE CHECK

[12] Contact

SSA325A001CG

PIPE,SHELL

Contact

[13] In Stock

SSA382A219

VALVE(2WAY)

Notes: SV, LENGTH 7.5CM Show Image

[13-16] In Stock

PCB321F687

PIPE ASSY

[14] Contact

PCB315B831

CAPILLARY

Contact

Notes: !D2.2XD3.2 L340

[15] Contact

PCB315B801A

CAPILLARY

Contact

Notes: !D1.1XD3.2 L500

[16] In Stock

SSA357A008BW

STRAINER

[17] In Stock

SSA532A032GR

SWITCH HP

Notes: 63H1-1,2 Show Image

[18] In Stock

AGT201A727DP

COMPRESSOR

Notes: GTC5150ND75K, ***COMPRESSORS CANNOT BE RETURNED***

[19] Contact

SSA352A105P

RECEIVER ASSY

Contact

Substitute: OUT OF PRODUCTION Notes: KXE4A & KXRE4A FUSIBLE PLUG PCB006A113Y/SSA327A008

[20] In Stock

SSA357A024

STRAINER

Show Image

[21] In Stock

SSA382A249A

VALVE,S(2WAY)

Notes: SV, SV1 Show Image

[21-22] Contact

PCB382A195B

VALVE ASSY(2WAY)

Contact

[22] Contact

PCB315B817

CAPILLARY

Contact

Notes: !D1.6XD3.2 L500, !D1.3XD3.2 L500

[23] In Stock

PCB315B303D

CAPILLARY

Notes: !D2.2XD3.2 L300 Show Image

[24] In Stock

PCA541B031

HEATER ASSY(CRANK)

Show Image

[25] In Stock

SSA941C356

CUSHION,RUBBER

Notes: 1pc only Show Image

[26] In Stock

SSA914C033

NUT

Notes: 1pc

[27] Contact

SSA915H039A

WASHER

Contact

Notes: 1pc ONLY

[28] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[29] Out of Stock

AGR947K002

TERMINAL C

[31] In Stock

SSA351A228A

ACCUMULATOR

[32] In Stock

PCB303A011

HEAT LIQ

[33] In Stock

SSA357A024C

STRAINER

Show Image

[34] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[35] Contact

PCB151D088

INSULATION

Contact

[36] In Stock

PCA151D034

INSULATO CO

[37] Contact

PCB151D098

INSULATION

Contact

[38] In Stock

SSA382F210Z

COIL,SOLENO

Notes: FOR EEVSC, LENGTH 206CM Show Image

[39] In Stock

PCB382F092T

COIL ASSY,SOLENOID

Notes: FOR 20S, FOR 20S/ LENGTH 147.5CM Show Image

[40] Contact

PCB382F110A

COIL ASSY,SOLENOID

Contact

Notes: FOR SV6

[41] Contact

PCB382F110

COIL ASSY,SOLENOID

Contact

Notes: FOR SV1

[42] Out of Stock

PCB504A231DG

HARNESS ASSY

Notes: !U Show Image

[43] Out of Stock

PCB504A231DH

HARNESS ASSY

Notes: !V Show Image

[44] In Stock

PCB504A231DJ

HARNESS ASSY

Notes: !W Show Image

SKU: FDCA280HKXE4BR PIPING Category: Uncategorised
