FDCA200VSA-W/1 CONTROL AND PARTS SET

Name: FDCA200VSA-W/1 CONTROL AND PARTS SET
SKU: FDCA200VSA-W/1 CONTROL AND PARTS SET
Availability: InStock

FDCA200VSA-W/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

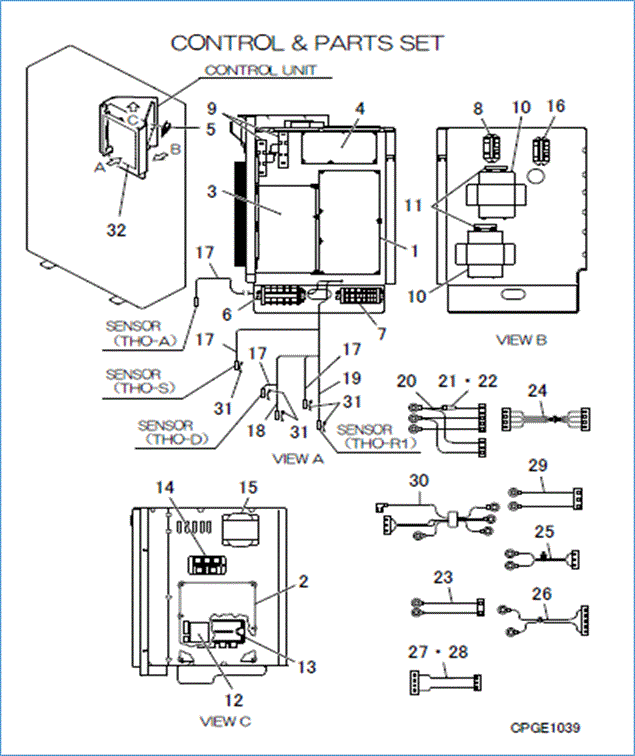

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCA505A377GK

PWB ASSY (CONTROL)

Notes: ONLY FOR SUPPLY PARTS PWB1

[1-30] Contact

PCB501A314C

CONTROL UNIT

Contact

Notes: ?, NOT AVAILABLE

[2] In Stock

PCB505A196FB

PWB ASSY(INV.)

Notes: ONLY FOR SUPPLY PARTS PWB2

[3] In Stock

PCB505A201BC

PWB ASSY(N.F)

Notes: ONLY FOR SUPPLY PARTS PWB3

[4] In Stock

PCB505A194C

PWB ASSY (CONV.)

Notes: ONLY FOR SUPPLY PARTS PWB4

[5] In Stock

PCA505A180

DRED

Notes: ONLY FOR SUPPLY PARTS PWB5, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image

[6] In Stock

SSA561B693L

BLOCK,TERMINAL

Notes: TB1

[7] In Stock

SSA561B711A

BLOCK,TERMI

Notes: TB2 Show Image

[8] In Stock

SSA521A727

RELAY

Notes: 52X1, 52X1/ LENGTH 7CM Show Image

[9] In Stock

SSA553A379

RESISTOR

Notes: R1,2, 15O (Ohm) Show Image

[10] In Stock

SSA552F427AJ

CAPACITOR

Notes: C1,2, C1 400V 3900MF

[11] In Stock

SSA553A380

RESISTOR

Notes: R3,4, 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image

[12] In Stock

SSA552F694

CAPACITOR

Notes: 1250v 2.2uf

[13] In Stock

PCB008A213C

TRANSISTOR(POWER)

Notes: ONLY FOR SUPPLY PARTS TM, IPM, Comes with heat paste and screws Show Image

[14] In Stock

PCB008A212A

DIODE(MODULE)

Notes: ONLY FOR SUPPLY PARTS DM Show Image

[15] In Stock

SSA554B097A

REACTOR

Notes: L1 Show Image

[16] In Stock

SSA521A715A

RELAY

Notes: 52X2, 52X1,52X2

[17] In Stock

PSA551A014Z

SENSOR ASSY

Notes: THO-A,S,D,R1, THO-A,S,D,R1 - / LENGTH 193CM Show Image

[18] In Stock

PSA551A014AA

SENSOR

Notes: THO-H, THO-H / LENGTH 133CM (compressor dome) Show Image

[19] In Stock

PSA551A014T

SENSOR

Notes: THO-R2 Show Image

[20-22] Contact

PCB504A384

WIRING ASSY

Contact

Notes: PWB3 L1o,PWB3 No,PWB3 L2o- PWB1 CNW,PWB4 CNW1

[21] In Stock

SSA564A149AH

FUSE(CURRENT)

Notes: F 5A Show Image

[22] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[23] Contact

PCB504A384G

WIRING ASSY

Contact

Notes: PWB1 CNM- 52X2 5,52X2 6

[24] Contact

PCB504A357D

WIRING ASSY

Contact

Notes: PWB1 CNI1- PWB2 CNI2

[25] Contact

PCB504A384AA

WIRING ASSY

Contact

Notes: 52X1 5,52X1 6- PWB2 CNR

[26] In Stock

PCB504A357M

WIRING ASSY

Notes: IPM P,IPM N- PWB2 CAN

[27] In Stock

PCB504A382A

WIRING ASSY

Notes: PWB1 CNA2- PWB4 CNA3, PWB1 CNA2- PWB4 CNA3/ LENGTH 21.5CM Show Image

[28] In Stock

PCB504A382B

WIRING ASSY

Notes: PWB1 CNA1- PWB4 CNA4, PWB1 CNA1- PWB4 CNA4/ LENGTH 23.5CM Show Image

[29] In Stock

PCB504A384T

WIRING ASSY

Notes: PWB3 No,E- PWB3 CN1, PWB3 No,E- PWB3 CN/ LENGTH 29.5CM Show Image

[30] Contact

PCB504A407

WIRING ASSY

Contact

Notes: PWB3 T12,PWB1 CNW2,TB1 N- TB2 3,TB2 2,TB2 1

[31] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THO-R1,R2,D,S,H Show Image

[32] Contact

PSC011G593B

LABEL,WIRING

Contact

Notes: ?

[33] Contact

PSB011F362J

LABEL,MODEL NAME

Contact

Notes: ?

SKU: FDCA200VSA-W/1 CONTROL AND PARTS SET Category: Uncategorised
