FDCA160VSA/1 CONTROL AND PARTS SET

FDCA160VSA/1 CONTROL AND PARTS SET

Available Parts

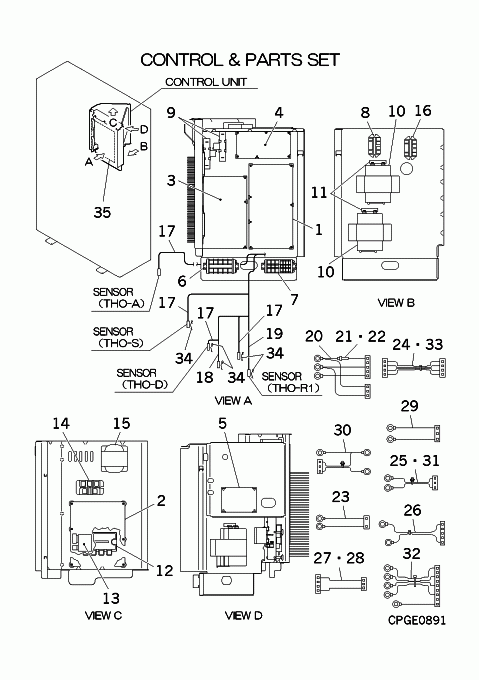

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCA505A177GF PWB ASSY (CONTROL) In Stock Notes: PWB1- CONTROL, PWB1
  • [1-33] PCB501A278A CONTROL UNIT Contact   Contact
  • [2] PCB505A196FA PWB ASSY(INVERTER) In Stock Notes: PWB2 - INVERTER BOARD - CONFIRM MODEL AND SERVICE CODE - FDCA160VS HAS DIFFERENT BOARDS, PWB2
  • [3] PCB505A201BA PWB ASSY (N.F.) In Stock Notes: NOT POWER BOARD, L1,L2,L3,N CONNECTS DIRECTLY TO TERMINAL BLOCK., PWB3
  • [4] PCB505A194A PWB ASSY (CONV.) In Stock Notes: POWER BOARD, PWB4 Show Image
  • [5] PCA505A180 DRED In Stock Notes: THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT, PWB Show Image
  • [6] SSA561B693L BLOCK,TERMINAL In Stock Notes: TB1, TB1
  • [7] SSA561B711A BLOCK,TERMI In Stock Notes: TB Show Image
  • [8] SSA521A727 RELAY In Stock Notes: 52X1, 52X1-1,1-2,2-1,2-2
  • [9] SSA553A379 RESISTOR In Stock Notes: 15O (OHM), R1-1,2,R2-1,2 Show Image
  • [10] SSA552F427AJ CAPACITOR In Stock Notes: C1 400V 3900MF, C1,2
  • [11] SSA553A380 RESISTOR In Stock Notes: 30 KO (KILO-OHM), R1-3,4,R2-3,4
  • [12] PCB008A213C TRANSISTOR(POWER) In Stock Notes: COMES WITH HEAT PASTE AND SCREWS, TM
  • [13] SSA552F694 CAPACITOR Out of Stock Notes: 1250V 2.2UF (D.P)
  • [14] PCB008A212A DIODE(MODULE) In Stock Notes: DM Show Image
  • [15] SSA554B097A REACTOR In Stock Notes: L1, L1-1,2,3 Show Image
  • [16] SSA521A715A RELAY In Stock Notes: 52X1,52X2, 52X1-1,1-2,2-1,2-2
  • [17] PSA551A014Z SENSOR ASSY In Stock Notes: THO-A,S,D,R1 -, THO-A,S,D,R1
  • [18] PSA551A014AA SENSOR ASSY In Stock Notes: THO-H
  • [19] PCA551A031T SENSOR ASSY In Stock Notes: THO-R2 Show Image
  • [20-22] PCB504A384 WIRING ASSY Contact Notes: PWB3 L1O,PWB3 NO,PWB3 L2O- PWB1 CNW,PWB4 CNW1, PWB3 L1o,PWB3 No,PWB3 L2o- PWB1 CNW,PWB4 CNW1   Contact
  • [21] SSA564A149AH FUSE(CURRENT) In Stock Notes: 5A Show Image
  • [22] RWC564B002 HOLDER,FUSE In Stock Show Image
  • [23] PCB504A384G WIRING ASSY Contact Notes: PWB1 CNM- 52X2 5,52X2 6, PWB1 CNM- 52X2 5,52X2 6   Contact
  • [24] PCB504A357D WIRING ASSY Contact Notes: PWB1 CNI1- PWB2 CNI2, PWB1 CNI1- PWB2 CNI2   Contact
  • [25] PCB504A384AA WIRING ASSY Contact Notes: 52X1 5,52X1 6- PWB2 CNR, 52X1 5,52X1 6- PWB2 CNR   Contact
  • [26] PCB504A357M WIRING ASSY Contact Notes: IPM P,IPM N- PWB2 CAN, IPM P,IPM N- PWB2 CAN   Contact
  • [27] PCB504A382A WIRING ASSY In Stock Notes: PWB1 CNA2- PWB4 CNA3, PWB1 CNA2- PWB4 CNA3
  • [28] PCB504A382B WIRING ASSY In Stock Notes: PWB1 CNA1- PWB4 CNA4, PWB1 CNA1- PWB4 CNA4
  • [29] PCB504A384T WIRING ASSY In Stock Notes: PWB3 NO,E- PWB3 CN1, PWB3 No,E-PWB3 CN1
  • [30] PCB504A382 WIRING ASSY Contact Notes: TB1 N,PWB1 CNW2- TB2 2,TB2 3, TB1 N,PWB1 CNW2- TB2 2,TB2 3   Contact
  • [31] PCB504A382G WIRING ASSY Contact Notes: PWB1 CNM- 52X2 5,52X2 6, PWB1 CNM- 52X2 5,52X2 6   Contact
  • [32] PCB504A359C WIRING ASSY Contact Notes: TB2 D1,TB2 D2,TB2 D3,TB2 C,E- PWB5 CNDRED, TB2 D1,TB2 D2,TB2 D3,TB2 C,E- PWB5 CNDRED   Contact
  • [33] PCB504A382H WIRING ASSY Contact Notes: PWB5 CNDRM- PWB1 CNDRM, PWB5 CNDRM- PWB1 CNDRM   Contact
  • [34] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR SENSOR Show Image
  • [35] PSC011G580 LABEL,WIRING Contact   Contact
  • [36] PSB011F161AB LABEL,MODEL NAME Contact   Contact
SKU: FDCA160VSA/1 CONTROL AND PARTS SET Category:
