FDCA160VS/1 CONTROL AND PARTS SET

FDCA160VS/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

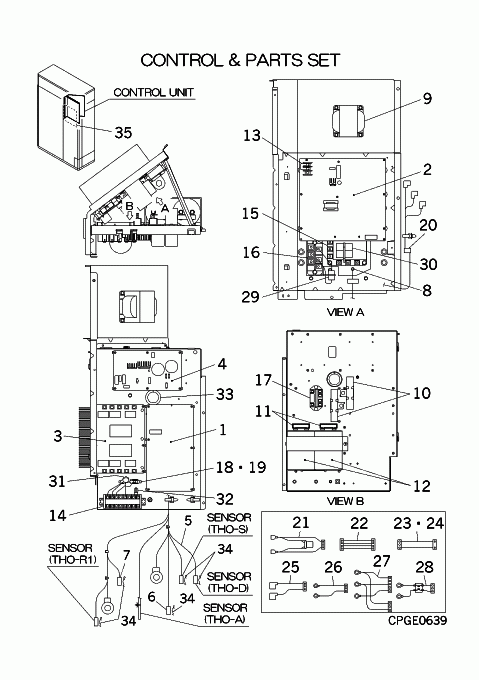

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCA505A289YF
PWB ASSY (CONTROL)
Notes: PWB1, PWB ASSY(CONTROL)
[1-33] Contact
PCA501A134F
CONTROL UNIT
Contact
Notes: NOT AVAILABLE
[2] In Stock
PCB505A044ZG
PWB ASSY(INV)
Notes: PWB2 INVERTER, ****NEED HEAT PASTE SSA971F044/ LENGTH 40CM Show Image
PCB505A044ZG
[3] In Stock
PCB505A035G
PWB ASSY (N.F)
Notes: PWB3, NOISE FILTER Show Image
PCB505A035G
[4] Out of Stock
PCB505A041ZG
PWB ASSY
Substitute: OUT OF PRODUCTION Notes: PWB4, OUT OF PRODUCTION - 2 CAPACITORS ON THE BOARD Show Image
PCB505A041ZG
[5] In Stock
PSY551A004H
SENSOR ASSY
Notes: THO-A,S,D,R1, LENGTH 125CM Show Image
PSY551A004H
[6] In Stock
PSA551A014AA
SENSOR
Notes: THO-H, THO-H / LENGTH 133CM (compressor dome) Show Image
PSA551A014AA
[7] In Stock
PSA551A013J
SENSOR
Notes: THO-R2 Show Image
PSA551A013J
[8] In Stock
SSA551A192K
SENSOR
Notes: THO-TR-IPM, THO-TIP or THO-TR or THO-IPM - SENSOR NEAR INVERTER BOARD Show Image
SSA551A192K
[9] In Stock
SSA554B044F
REACTOR
Notes: L1
[10] In Stock
SSA553A379
RESISTOR
Notes: R1-1,2,R2-1,2, SOLD INDIVIDUALLY - 15O (Ohm) Show Image
SSA553A379
[11] In Stock
SSA553A380
RESISTOR
Notes: R1-3,4,R2-3,4, SOLD INDIVIDUALLY - 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image
SSA553A380
[12] In Stock
SSA552F427AJ
CAPACITOR
Notes: C1,2, C1 400V 3900MF
[13] Contact
SSA562K005
RLOCK TERMI
Contact
[14] In Stock
SSA561B693F
TERMINAL
Notes: TB Show Image
SSA561B693F
[15] In Stock
PCB008A120A
TRANSISTOR
Notes: IPM/TM, IPM (Intelligent Power Module) / POWER TRANSISTOR Show Image
PCB008A120A
[16] In Stock
PCB008A121A
DIODE STACK
Notes: DM, aka DIODE MODULE Show Image
PCB008A121A
[17] In Stock
SSA521A715
RELAY
Notes: 52C Show Image
SSA521A715
[18] In Stock
SSA564A135K
FUSE
Notes: F 10A Show Image
SSA564A135K
[19] In Stock
SSA564B044
HOLDER, FUSE
SSA564B044
[20] In Stock
SSA552D040Y
FILTER,NOISE
Notes: FOR COMP.WIRING Show Image
SSA552D040Y
[21] Out of Stock
PCA504A273
WIRING ASSY
Substitute: OUT OF PRODUCTION Notes: DM G,DM K-PWB2 CNR, OUT OF PRODUCTION. DM1 G,DM1 K- PWB2-1 CNR Show Image
PCA504A273
[22] In Stock
PCA504A243BF
HARNESS ASSY
Notes: PWB1 CNI1- PWB2 CNI3 Show Image
PCA504A243BF
[23] In Stock
PCA504A247BH
HARNESS ASSY
Notes: PWB4 CNO1- PWB1 CNA1 Show Image
PCA504A247BH
[24] In Stock
PCA504A247BK
HARNESS ASSY
Notes: PWB4 CNO2- PWB1 CNA2 Show Image
PCA504A247BK
[25] Contact
PCA504A243BV
WIRING ASSY
Contact
Notes: 63H 1,63H 2- PWB1 CNH
[26] Contact
PCA504A243BW
WIRING ASSY
Contact
Notes: 52C1 A1 52X1 5,52C1 A2 52X1 6- PWB1 CNM
[27] Contact
PCA504A247DT
WIRING ASSY
Contact
Notes: PWB3 L1o,PWB3 No,PWB3 L2o- PWB1 CNW,PWB4 CNW1
[28] In Stock
PCA504A247DV
WIRING ASSY
Notes: TB 2,TB 3- PWB1 CNW2
[29] In Stock
PCB555B003B
DIODE
PCB555B003B
[30] In Stock
PCB552F006D
CAPACITOR
PCB552F006D
[31] In Stock
PCB552D006B
CAPACITOR
PCB552D006B
[32] Contact
PCA552F004A
CAPACITOR,ASSY
Contact
[33] Contact
S750W30X
GROMMET
Contact
Notes: D35
[34] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
[35] Contact
PSC011G571
LABEL,WIRING
Contact
[36] Contact
PSB011F105B
LABEL,MODEL NAME
Contact
