FDCA160VNX-W/1 CONTROL AND PARTS SET

Name: FDCA160VNX-W/1 CONTROL AND PARTS SET
SKU: FDCA160VNX-W/1 CONTROL AND PARTS SET
Availability: InStock

FDCA160VNX-W/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] In Stock

PCA505A377BW

PWB ASSY (CONTROL)

Notes: ONLY FOR SUPPLY PARTS PWB1, PWB1 - CONTROL PCB Show Image

[1-28] Contact

PCA501A197G

CONTROL UNIT

Contact

Substitute: NOT AVAILABLE Notes: NOT AVAILABLE

[3] In Stock

PCA505A194DK

PWB ASSY(INVERTER)

Notes: ONLY FOR SUPPLY PARTS PWB2, PWB2-INVERTER BOARD

[4-5] In Stock

PCA505A179J

PWB ASSY(NOISE.FILTER)

Notes: ONLY FOR SUPPLY PARTS PWB3, NOISE FILTER (SCREWS NOT INCLUDED) Show Image

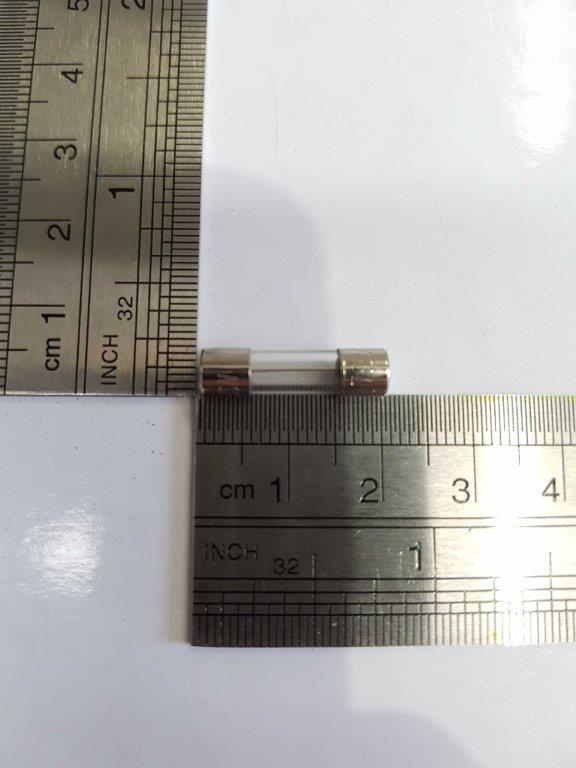

[5] In Stock

SSA564A149AK

FUSE(CURRENT)

Notes: F1 8A, LENGTH 2CM Show Image

[6-7] In Stock

PCA505A180

PWB, DRED

Notes: ONLY FOR SUPPLY PARTS PWB4, Demand Response Enabling Device. Only required if wired-in on installation. FOR MORE INFORMATION DISCUSS WITH TECH SUPPORT Show Image

[7] In Stock

SSA564A149AC

FUSE(CURRENT)

Notes: F1 2A, 2 amp fuse

[8] In Stock

SSA551A256L

SENSOR ASSY

Notes: THO-AF Show Image

[9] In Stock

PSA551A014P

SENSOR ASSY

Notes: THO-A,S,D,R1, THO-A,S,D,R1 - WHITE PLUG WITH 6 BLACK WIRES AND 2 YELLOW WIRES Show Image

[10] In Stock

PSY551A004J

SENSOR

Notes: THO-R2 Show Image

[11] In Stock

SSA554B092

REACTOR

Notes: L1

[12] In Stock

SSA552F601

CAPACITOR

Notes: C1, 450v 2700mf, COMPRESSOR CAPACITOR Show Image

[13] In Stock

SSA561B693AC

BLOCK,TERMINAL

Notes: TB Show Image

[14] In Stock

PCA008A276A

PARTS SET(DIODE)

Notes: DM OR DS (DIODE STACK) Show Image

[15] In Stock

PCA504A300

FUSE ASSY

Notes: F 30A, 30AMP FUSE WITH SOLDED WIRES (FOR FUSE HOLDER SEE SSA564B044)

[16] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[17] In Stock

SSA556J035A

IC (ACTIVE CONVERTER)

Notes: A/F MODULE (Active Filter Module) - Also known as ACT/IPM Show Image

[18] Contact

S750W30

GROMMET

Contact

Notes: D35

[19] In Stock

SSA554D183

KILLER,NOISE

Show Image

[20] Contact

PCA504A292C

WIRING ASSY

Contact

Notes: PWB1 CNDRAM- PWB4 CNDRAM, PWB1 CNDRM- PWB4 CNDRM

[21] In Stock

PCA504A264GA

WIRING ASSY

Notes: PWB1 CNI1- PWB2 CNI2 Show Image

[22] In Stock

PCA504A292V

WIRING ASSY

Notes: PWB3 CN1- TB 1,TB 2 Show Image

[23-25] In Stock

PCA504A292P

WIRING ASSY

Notes: PWB3 L1o,PWB3 No- PWB1 CNW, PWB4 CNPOWER, PWB3 L1o,PWB3 No- PWB1 CNW,PWB4 CNPOWER Show Image

[24] In Stock

SSA564A149AG

FUSE(CURRENT)

Notes: F 4A, F 4A‚ - 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image

[25] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[26] In Stock

PCA504A264FB

WIRING ASSY

Notes: PWB1 CNI3- PWB2 CNI4, PWB1 CNI3-PWB2 CNI4

[27] In Stock

PCA504A264HC

WIRING ASSY

Notes: PWB2 CNACT1- LACT CNACT, 4 black wires with white plugs PWB2-ACTIVE FILTER MODULE. One plug is slightly smaller than the other. (PWB2 CNACT1- LACT CNACT)/ LENGTH 55.5CM Show Image

[28] In Stock

PCA504A292Z

WIRING ASSY

Notes: C1 +,C1 -- PWB1 CNA1,PWB1 CNA2 Show Image

[29] In Stock

PCA142A174F

PLATE,CONTROL

[30] Contact

PCA142A134P

PLATE,CONTROL

Contact

[31] Contact

PCA142A132J

PLATE,CONTROL

Contact

[32] In Stock

PSA941F001

SPRING LEAF

Notes: FOR THO-R1,R2,D,S, 1pc ONLY Show Image
