FDCA140VSX-W/P FAN AND COMPRESSOR

Awaiting product image

FDCA140VSX-W/P FAN AND COMPRESSOR

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

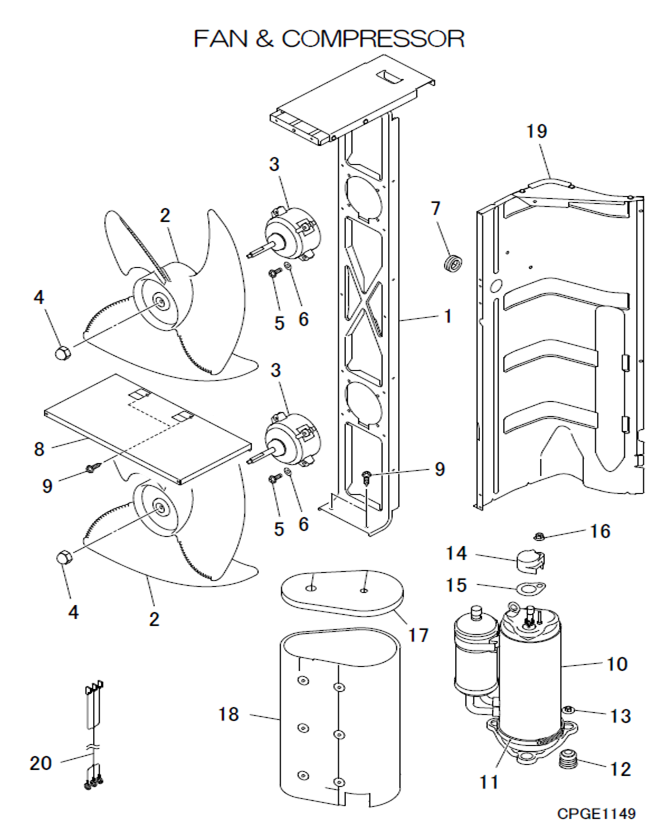

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCA116A265
BASE,MOTOR
Notes: FAN MOTOR BRACKET
[2] In Stock
SSA431B228
FAN, PROPELLER
Notes: CONDENSER FAN BLADE
[3] In Stock
SSA512T076BA
MOTOR,DC
[4] In Stock
SSA914H028
NUT, CAP
[5] Out of Stock
SSA913C021A
SCREW TAP
Substitute: SSA913C031A Notes: 1pc ONLY
[6] In Stock
W200H06
WASHER
Notes: 1pc ONLY Show Image
W200H06
[7] In Stock
S751W30X
GROMMET V14
Notes: D35, ***SOLD INDIVIDUALLY*** Show Image
S751W30X
[8] Contact
PCA141A173
PLATE ASSY, BAFFLE
Contact
[9] In Stock
SSA913D020
SCREW TAP
Notes: M5x10, 1pc ONLY, INCLUDES WASHER Show Image
SSA913D020
[10] In Stock
AHT201P344WC
COMPRESSOR ASSY
Notes: RMT5134SWP4, ***COMPRESSORS CANNOT BE RETURNED***
[11] In Stock
PCA541B012N
HEATER
Notes: FOR COMPRESSOR
[12] In Stock
SSA941C246
CUSHION RUBBER
Notes: *1pc only* SOLD INDIVIDUALLY - RUBBER COMPRESSOR MOUNT - LENGTH 3.7CM Show Image
SSA941C246
[13] In Stock
SSA914C033
NUT
Notes: 1pc
[14] In Stock
SSA947K026
COVER,TERMINAL
Show Image
SSA947K026
[15] In Stock
SSA932C009A
GASKET,COVER
Show Image
SSA932C009A
[16] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[17] In Stock
PCA151D088B
INSULATION,COMP
[18] In Stock
PCA151D116A
INSULATION,COMP
[19] In Stock
PCA141A115
PLATE ASSY,BAFFLE
[20] Contact
PCA504A330A
WIRING ASSY
Contact
Notes: FOR COMP.
