FDCA140VSX CONTROL AND PARTS SET

Name: FDCA140VSX CONTROL AND PARTS SET
SKU: FDCA140VSX CONTROL AND PARTS SET
Availability: InStock

FDCA140VSX CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

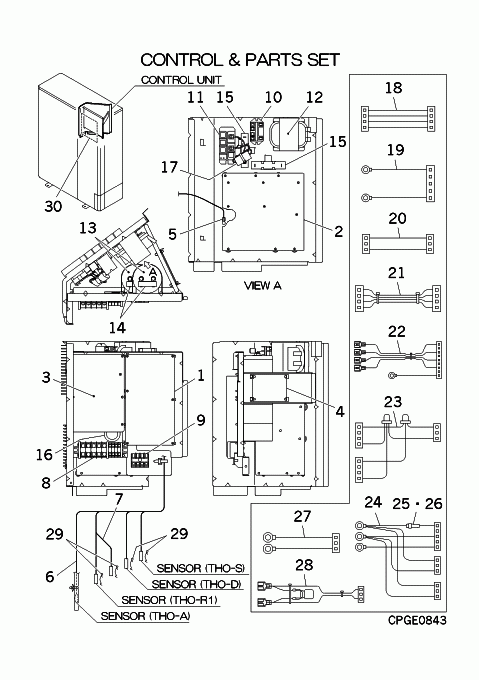

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCA505A377BS

PWB ASSY (CONTROL)

Notes: PWB1

[1-28] Contact

PCA501A198

CONTROL UNIT

Contact

Notes: NOT AVAILABLE

[2] In Stock

PCA505A108DG

PWB ASSY(INV)

Notes: PWB2, PWB2 - INVERTER BOARD Show Image

[3] In Stock

PCA505A128YB

PWB ASSY NF

Notes: PWB3, NOISE FILTER

[4] In Stock

PCA505A180A

DRED

Notes: PWB4, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image

[5] In Stock

SSA551A192K

SENSOR

Notes: THO-TR-IPM, THO-TIP or THO-TR or THO-IPM - SENSOR NEAR INVERTER BOARD Show Image

[6] In Stock

PSA551A014P

SENSOR ASSY

Notes: THO-A,S,D,R1, THO-A,S,D,R1 - WHITE PLUG WITH 6 BLACK WIRES AND 2 YELLOW WIRES Show Image

[7] In Stock

PSA551A013J

SENSOR

Notes: THO-R2 Show Image

[8] In Stock

SSA561B693D

BLOCK,TERMINAL

Notes: TB Show Image

[9] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: T3 Show Image

[10] In Stock

SSA521A715A

RELAY

Notes: 52X1-1,1-2,2-1,2-2, 52X1,52X2

[11] In Stock

PCB008A121C

PARTS SET

Notes: DIODE MODULE Show Image

[12] In Stock

SSA554B097A

REACTOR

Notes: L1-1,2,3, L1 Show Image

[13] In Stock

SSA552F427AJ

CAPACITOR

Notes: C1,2, C1 400V 3900MF

[14] In Stock

SSA553A380

RESISTOR

Notes: R1-3,4,R2-3,4, 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image

[15] In Stock

SSA553A379

RESISTOR

Notes: R1-1,2,R2-1,2, 15O (Ohm) Show Image

[16] Contact

S750W30

GROMMET

Contact

Notes: D35

[17] In Stock

PCA555B002

VARISTOR ASSY

Show Image

[18] In Stock

PCA504A264GA

WIRING ASSY

Notes: PWB1 CNI1-PWB2 CNI2, PWB1 CNI1- PWB2 CNI2 Show Image

[19] Contact

PCA504A256Z

WIRING ASSY

Contact

Notes: C1 +,C1 --PWB2 CNW2

[20] Contact

PCA504A264GF

WIRING ASSY

Contact

Notes: PWB3 CN2-1- PWB1 CNW2

[21] Contact

PCA504A292C

WIRING ASSY

Contact

Notes: PWB1 CNDRM- PWB4 CNDRM

[22] In Stock

PCA504A292H

WIRING ASSY

Notes: TB2 D1,TB2 D2,TB2 D3,TB2 C,E- PWB4 CNDRED

[23] Contact

PCA504A292L

WIRING ASSY

Contact

Notes: PWB1 CNA1,PWB1 CNA2- PWB2 CNO1

[24-26] In Stock

PCA504A292M

WIRING ASSY

Notes: PWB3 L1o,PWB3 No,PWB3 L2o- PWB1 CNW,PWB2 CNW1,PWB4 CNPOWER

[25] In Stock

SSA564A149AG

FUSE(CURRENT)

Notes: 4A, F 4A‚ - 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image

[26] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[27] Contact

PCA504A292AL

WIRING ASSY

Contact

Notes: 52C 6,52C 5- PWB1 CNM1

[28] Contact

PCA504A292AR

WIRING ASSY

Contact

Notes: DM G,DM K- PWB2 CNR

[29] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[30] Contact

PSC011G564L

LABEL,WIRING

Contact

[31] Contact

PSB011F161F

LABEL,MODEL NAME

Contact
