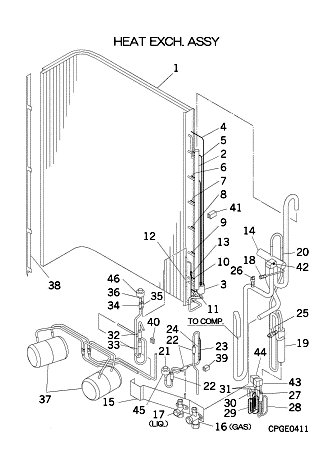

FDCA140HKXES4 HEAT EXCH. ASSY

FDCA140HKXES4 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCA311A047B
HEAT EXCH(AIR)
Contact
Notes: !
[1-13] In Stock
PCA301A111B
HEAT EXCH A
[2] Contact
PCA315D166
HEADER ASSY,GAS
Contact
[3] Contact
PCA315A072
DISTRI
Contact
[3-11] Contact
PCA315A078A
DISTRIBUTOR
Contact
[4] Contact
PCA315B780
CAPILLARY(1)
Contact
Notes: !D2.2XD4.0 L480
[5] Contact
PCA315B781
CAPILLARY(2)
Contact
Notes: !D2.4XD4.0 L420
[6] Contact
PCA315B782
CAPILLARY(3)
Contact
Notes: !D2.6XD4.0 L550
[7] Contact
PCA315B783
CAPILLARY(4)
Contact
Notes: !D2.8XD4.0 L340
[8] Contact
PCA315B784
CAPILLARY(5)
Contact
Notes: !D2.6XD4.0 L300
[9] Contact
PCA315B785
CAPILLARY(6)
Contact
Notes: !D2.4XD4.0 L270
[10] Contact
PCA315B786
CAPILLARY(7)
Contact
Notes: !D2.2XD4.0 L260
[11] Contact
PCA315B787
CAPILLARY(8)
Contact
Notes: !D2.4XD4.0 L250
[12] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[12-13] Out of Stock
PCA304A239
PIPNG ASSY
[13] Contact
PCA315B761
CAPILLARY
Contact
Notes: !D3.5XD5.0 L200
[14] Out of Stock
SSA382C074
4 WAY VALVE
Notes: 20S,20SL Show Image
SSA382C074
[15] Contact
PCA116A093D
BRACKET
Contact
[16] In Stock
PCA381A112A
VALVE,SERVICE(5/8")
Notes: GAS
[17] In Stock
PCA381A066
VALVE ASSY
Notes: LIQ., 3/8" LIQUID Show Image
PCA381A066
[18] In Stock
SSA327B067
VALVE,SERVICE
Show Image
SSA327B067
[19] Contact
PCA325A003A
PIPE SHELL
Contact
[20] Out of Stock
SSA385A035
VALVE CHECK
[21] In Stock
SSA387F039
EXP VALVE
Notes: EEV(COOL) Show Image
SSA387F039
[21-24] Out of Stock
PCA387F016
EXP V
[22] Out of Stock
SSA357A005P
STRAINER
Show Image
SSA357A005P
[23] Contact
PCA315B757
CAPILLARY
Contact
Notes: !D3.5XD5.0 L200
[24] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[25] In Stock
SSA551D024A
SENSOR HP
Notes: HIGH PRESSURE TRANSDUCER, HIGH PRESSURE TRANSDUCER - PSH Show Image
SSA551D024A
[26] In Stock
SSA551D022C
SENSOR LP
Notes: LOW PRESSURE TRANSDUCER Show Image
SSA551D022C
[27] In Stock
SSA357A008BW
STRAINER
[27-31] Contact
PCA304A241
PIPING ASSY(OIL)
Contact
Substitute: PCA304A244
[28] Contact
PCA315B765
CAPILLARY
Contact
Notes: !D3.5XD5.0 L640
[29] Contact
PCA315B758
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[30] Contact
PCA315B759
CAPILLARY
Contact
Notes: !D1.5XD2.5 L500
[31] Out of Stock
SSA382A249
2VALVE
Substitute: OUT OF PRODUCTION Notes: SV2,3, OUT OF PRODUCTION
[32] Contact
SSA385A027
VALVE CHECK
Contact
[33] Contact
SSA357A005AB
STRAINER
Contact
[34] In Stock
SSA357A005C
STRAINER
Show Image
SSA357A005C
[35] Out of Stock
SSA357A005AC
STRAINER
Show Image
SSA357A005AC
[36] In Stock
SSA387F036
EXP VALVE
Notes: EEV, EEV(HEAT) or EEVH1-EEVH2 Show Image
SSA387F036
[37] Out of Stock
SSA352B041
RECEIVER
Substitute: OUT OF PRODUCTION
[38] Contact
PCA141A074B
PLATE BAFFL
Contact
[39] Contact
SSA941C329B
CUSHION RUB
Contact
[40] Contact
SSA941C213F
CUSHION,RUB
Contact
[41] Contact
SSA941C324B
CUSHION RUB
Contact
[42] Out of Stock
PCA382F002J
SOLENOID CO
Notes: FOR 20S, OUT OF PRODUCTION
[43] In Stock
PCA382F013D
SOLENOID CO
Notes: FOR SV2, LENGTH 98.5CM Show Image
PCA382F013D
[44] In Stock
PCA382F013F
SOLENOID COIL
Notes: FOR SV3, LENGTH 98CM Show Image
PCA382F013F
[45] In Stock
SSA382F212A
SOLENOID
Notes: FOR EEV(COOL) or SM1, COOLING/ LENGTH 78CM
[46] In Stock
SSA382F210N
SOLENOID
Notes: FOR EEV(HEAT)
