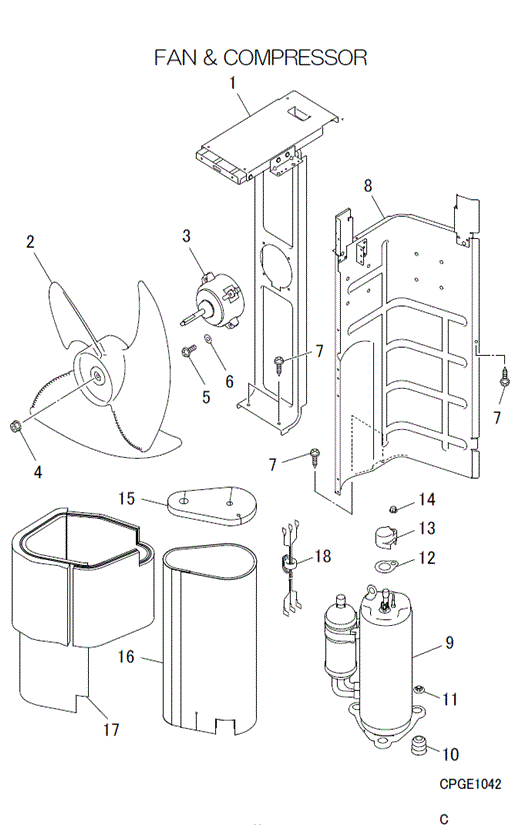

FDCA125VNP-W/1 FAN AND COMPRESSOR

FDCA125VNP-W/1 FAN AND COMPRESSOR

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RCR116A109
BASE,MOTOR
[2] In Stock
SSA431B228
FAN, PROPELLER
Notes: CONDENSER FAN BLADE
[3] In Stock
SSA512T076BN
MOTOR, DC
Notes: OUTDOOR FAN MOTOR
[4] In Stock
SSA914B007AD
NUT
Notes: **1pc ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image
SSA914B007AD
[5] In Stock
SSA913C031A
SCREW TAP
Notes: 1pc ONLY Show Image
SSA913C031A
[6] In Stock
W200H06
WASHER
Notes: 1pc ONLY Show Image
W200H06
[7] In Stock
SSA913D020
SCREW TAP
Notes: M5x10, 1pc ONLY Show Image
SSA913D020
[8] Contact
RCR141A205
PLATE ASSY,BAFFLE
Contact
[9] In Stock
AHT201P264WB
COMPRESSOR ASSY
Notes: RMT5126SWP3, ***COMPRESSORS CANNOT BE RETURNED***
[10] In Stock
SSA941C246
CUSHION RUBBER
Notes: *1pc only* SOLD INDIVIDUALLY - RUBBER COMPRESSOR MOUNT - LENGTH 3.7CM Show Image
SSA941C246
[11] In Stock
SSA914C033
NUT
Notes: 1pc
[12] In Stock
SSA932C009A
GASKET,COVER
SSA932C009A
[13] In Stock
SSA947K026
COVER,TERMINAL
SSA947K026
[14] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[15] In Stock
RCR154D104A
INSULATION,COMP
RCR154D104A
[16] Contact
PCA154D020
INSULATION,COMP
Contact
[17] Contact
PCA154D021
INSULATION, COMP
Contact
[18] Contact
PCA504A338A
WIRING ASSY
Contact
Notes: FOR COMP.
