FDCA125VNP-W/1 CONTROL AND PARTS SET

FDCA125VNP-W/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

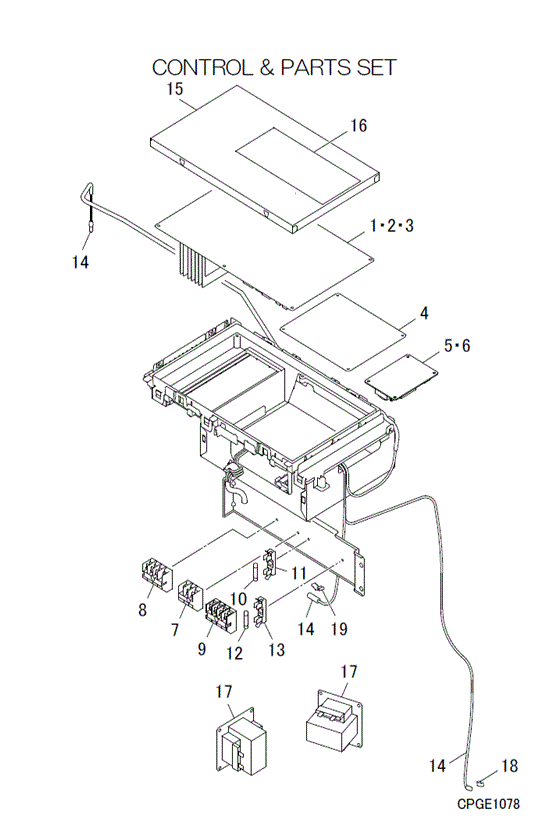

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-16] Contact
PCA501A232C
CONTROL UNIT
Contact
[1-3] Out of Stock

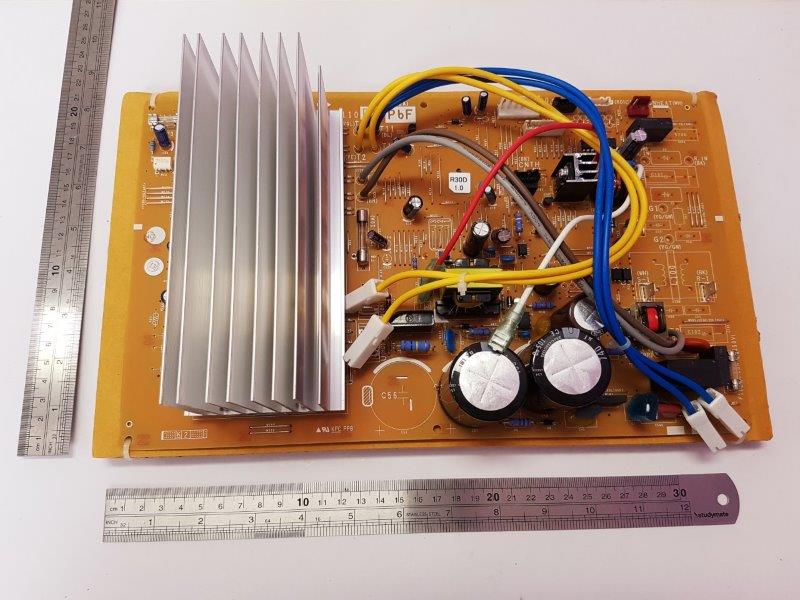

RCR505A110DK
PWB ASSY
Notes: PWB1
[2] In Stock
SSA564A132
FUSE(CURRENT)
Notes: F1 3.15A, 3.15A Show Image
SSA564A132
[3] In Stock
SSA564A149ZA
FUSE(CURRENT)
Notes: F3 1A
[4] In Stock
RCT505A004AF
PWB ASSY (SUB)
Notes: PWB2
[5-6] In Stock
RCT505A304D
PWB ASSY (DRED)
Notes: PWB3
[7] In Stock
SSA561B665
BLOCK TERMI
Notes: TB1, T1 Show Image
SSA561B665
[8] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: TB2, T2 Show Image
SSA561B702B
[9] In Stock
SSA561B733
BLOCK,TERMINAL
Notes: TB3, T3 Show Image
SSA561B733
[10] In Stock
SSA564A136A
FUSE(CURRENT)
Notes: F4 20A, F 20A‚  - 20 amp fuse Show Image
SSA564A136A
[11] In Stock
SSA564B088
HOLDER,FUSE
SSA564B088
[12] In Stock
SSA564A149AK
FUSE(CURRENT)
Notes: F5 8A, LENGTH 2CM Show Image
SSA564A149AK
[13] In Stock
SSA564B076
HOLDER,FUSE
SSA564B076
[14] In Stock
SSA551A246
SENSOR ASSY
Notes: TH1,2,3 Show Image
SSA551A246
[17] In Stock
SSA554B128
REACTOR
[18] In Stock
RKF941F002
SPRING
Notes: FOR TH1, LENGTH 2.8CM Show Image
RKF941F002
[19] In Stock
RCJ941F001
SPRING
Notes: FOR TH3, LENGTH 2.5CM Show Image
RCJ941F001
SKU: FDCA125VNP-W/1 CONTROL AND PARTS SET Category:
