FDCA100VNP-W/1 HEAT EXCH AND CONTROL

Name: FDCA100VNP-W/1 HEAT EXCH AND CONTROL
SKU: FDCA100VNP-W/1 HEAT EXCH AND CONTROL
Availability: InStock

FDCA100VNP-W/1 HEAT EXCH AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-9] In Stock

RPC301A901WD

HEAT EXCH ASSY (AIR)

[2] Contact

RPC315D904AA

HEADER ASSY,GAS

Contact

[3] Contact

RSA315A005

DISTRIBUTOR

Contact

[3-9] In Stock

RPC315A900A

DISTRIBUTOR ASSY

[4] Contact

RPC315B911

CAPILLARY(1)

Contact

Notes: D2.6xD4.0 L400, !D2.6XD4.0 L400

[5] Contact

RPC315B912

CAPILLARY(2)

Contact

Notes: D2.6xD4.0 L500, !D2.6XD4.0 L500

[6] Contact

RPC315B914

CAPILLARY(4)

Contact

Notes: D2.6xD4.0 L400, !D2.6XD4.0 L400

[7] Contact

RPC315B915

CAPILLARY(5)

Contact

Notes: D2.6xD4.0 L500, !D2.6XD4.0 L500

[8] Contact

RPC315B919

CAPILLARY(3)

Contact

Notes: D2.6xD4.0 L500, !D2.6XD4.0 L500

[9] Contact

RPC315B920

CAPILLARY(6)

Contact

Notes: D2.6xD4.0 L500, !D2.6XD4.0 L500

[10] In Stock

SSA382C098

VALVE S(4WAY)

Notes: 20S, reversing valve, body only Show Image

[11] In Stock

RCR116A003

BRACKET(VALVE)

Show Image

[12] In Stock

RCR381A003B

VALVE,SERVICE(1/4")

Notes: LIQ., LIQUID LINE SERVICE VALVE - 1/4' - LIQ. Show Image

[13] In Stock

RCR381A004

VALVE,SERVICE(5/8)

Notes: GAS, 5/8" GAS (SUCTION)

[14] In Stock

SSA387F059

VALVE,BODY(EXP)

Notes: EEV, Electronic Expansion Valve Body - Body only/ LENGTH 7.5CM Show Image

[15] In Stock

SSA357A059A

STRAINER

Show Image

[16] In Stock

RCP315B002

CAPILLARY,SUB

Notes: D2.6xD4.0 L300, !D2.6XD4.0 L300‚ / LENGTH 8.5CM Show Image

[17] In Stock

RCR304A205

PIPING ASSY(DISCH)

[18] In Stock

AHT351A001

ACCUMULATOR

Show Image

[19] Contact

RPC154D903

INSULATION,COMP

Contact

Notes: COMP UPPER

[20] In Stock

RPC154D904

INSULATION,COMP

Notes: COMP BODY

[21] Contact

RCR154D213

INSULATION

Contact

[22] In Stock

RSA382F013BC

COIL ASSY,SOLENOID

Notes: FOR 20S, REVERSING VALVE SOLENOID COIL / 4 WAY VALVE COIL - coil only

[23] In Stock

SSA382F210L

COIL,SOLENOID (EEV)

Notes: FOR EEV, SOLENOID COIL FOR EEV (ELECTRONIC EXPANSION VALVE)

[24] In Stock

AHT201P184W

COMPRESSOR ASSY

Notes: RMT5118SWP1, ***COMPRESSORS CANNOT BE RETURNED***

[25] In Stock

SSA941C351A

CUSHION,RUBBER

Notes: For Compressor - Sold individually

[26] Contact

SSA914C033A

NUT, FLANGE

Contact

[27] In Stock

RSA932C004

GASKET

Show Image

[28] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[29] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[30] In Stock

RCR142A205A

BOX ASSY,CONTROL

[31] In Stock

RCR132A200

COVER,CONTROL

Show Image

[32] In Stock

RCR142A202A

BOX,CONTROL

[33-34] Contact

RCR142A207S

LID ASSY, CONTROL

Contact

[34] Contact

RCR011G201N

LABEL, WIRING

Contact

[35-37] In Stock

RCR505A110DJ

PWB

[36] In Stock

SSA564A132

FUSE(CURRENT)

Notes: F1 3.15A, 3.15A Show Image

[37] In Stock

SSA564A149ZA

FUSE(CURRENT)

Notes: F3 1A Show Image

[38-39] In Stock

RCT505A304B

DRED

Notes: PEB2, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT

[39] In Stock

SSA564A149AC

FUSE(CURRENT)

Notes: F1 2A, 2 amp fuse

[40] In Stock

SSA561B665

BLOCK,TERMINAL

Notes: TB1, T1 Show Image

[41] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: TB2, T2 Show Image

[42] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: TB3, T3 Show Image

[43] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: F 20A, F 20A‚ - 20 amp fuse Show Image

[44] In Stock

SSA564B088

FUSE HOLDER

Show Image

[46] In Stock

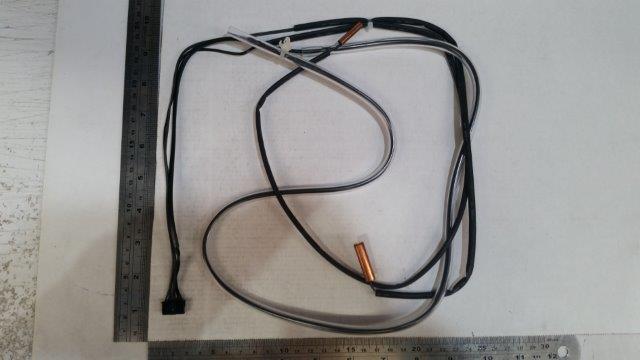

SSA551A244

SENSOR ASSY

Notes: TH1,2,3, TH1,2,3 (3 SENSORS) Show Image

[47] In Stock

SSA554D173

CORE,FERRITE

[48] In Stock

SSA554B114

REACTOR

Notes: *** 1 PIECE ONLY. SOLD INDIVIDUALLY *** Show Image

[49] In Stock

PSA941F001

SPRING LEAF

Notes: FOR TH1, 1pc ONLY Show Image

[50] In Stock

RCJ941F001

SPRING

Notes: FOR TH3, LENGTH 2.5CM Show Image
