FDCA100VN CONTROL AND PARTS SET

Name: FDCA100VN CONTROL AND PARTS SET
SKU: FDCA100VN CONTROL AND PARTS SET
Availability: InStock

FDCA100VN CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

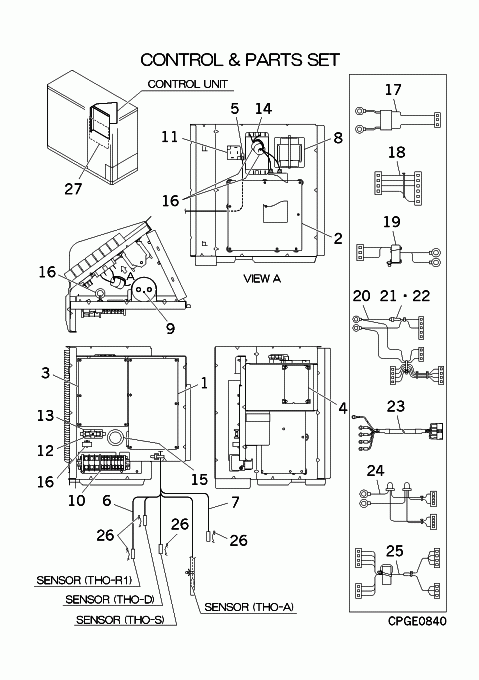

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCA505A377BC

PWB ASSY (CONTROL)

Notes: PWB1

[1-25] Contact

PCA501A196

CONTROL UNIT

Contact

Notes: NOT AVAILABLE

[2] In Stock

PCA505A195DB

PWB ASSY INV.

Notes: PWB2, PWB2 - INVERTER BOARD

[3] In Stock

PCA505A178H

PWB ASSY(N.F)

Notes: PWB3

[4] In Stock

PCA505A180

DRED

Notes: PWB, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image

[5] In Stock

SSA551A192L

SENSOR

Notes: THO-TR or -AF or -P, THO-IPM THO-TR THO-AF Show Image

[6] In Stock

PCA551A034B

SENSOR ASSY

Notes: THO-A,S,D,R1, THO-A,S,D,R1. 4 sensors on same plug. Show Image

[7] In Stock

PSA551A013D

SENSOR

Notes: THO-R2 Show Image

[8] In Stock

SSA554B092

REACTOR

Notes: L1

[9] In Stock

SSA552F601

CAPACITOR

Notes: C1, 450v 2700mf, COMPRESSOR CAPACITOR Show Image

[10] In Stock

SSA561B693AC

BLOCK,TERMINAL

Notes: TB Show Image

[11] In Stock

SSA555A662

DIODE

Notes: DIODE STACK/DIODE MODULE/DIODE BRIDGE Show Image

[12] In Stock

PCA504A300

FUSE ASSY

Notes: 30A, 30AMP FUSE WITH SOLDED WIRES (FOR FUSE HOLDER SEE SSA564B044)

[13] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[14] In Stock

SSA556J035A

IC (ACTIVE CONVERTER)

Notes: A/F MODULE (Active Filter Module)

[15] Contact

S750W30

GROMMET

Contact

Notes: D35

[16] In Stock

SSA554D183

KILLER,NOISE

Show Image

[17] Contact

PCA504A264JB

WIRING ASSY

Contact

Notes: TB 2,TB 3- PWB1 CNW2

[18] In Stock

PCA504A246BP

WIRING ASSY

Notes: PWB2 CNACT1-LACT CNACT

[19] In Stock

PCA504A292V

WIRING ASSY

Notes: PWB3 CN1- TB 1,TB 2 Show Image

[20-22] Contact

PCA504A292AA

WIRING ASSY

Contact

[21] In Stock

SSA564A149AG

FUSE(CURRENT)

Notes: 4A, F 4A‚ - 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image

[22] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[23] In Stock

PCA504A299

HARNESS ASSY

Notes: E,TB D1,TB D2,TB D3,TB C- PWB4 CNDRED Show Image

[24] Contact

PCA504A264JG

WIRING ASSY

Contact

Notes: TB 2,TB 3- PWB1 CNW2

[25] Contact

PCA504A292AP

WIRING ASSY

Contact

Notes: PWB1 CNI1,PWB1 CNI3- PWB2 CNI2,PWB2 CNI4

[26] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[27] Contact

PSC011G564J

LABEL,WIRING

Contact

[28] Contact

PSB011F161A

LABEL,MODEL NAME

Contact
