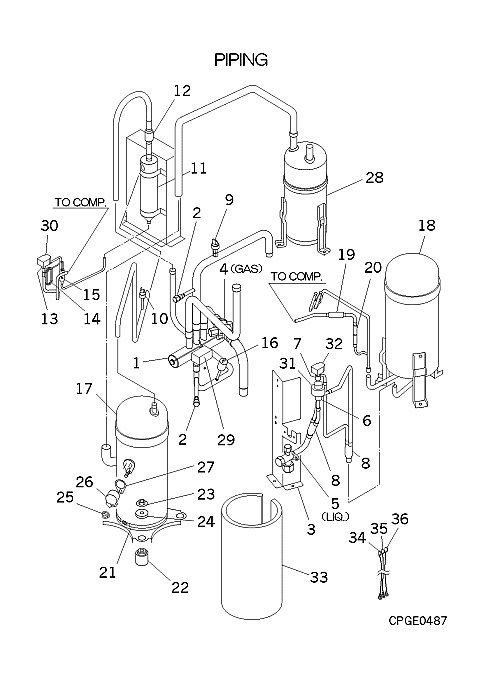

FDCA1001HES PIPING

FDCA1001HES PIPING

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
SSA382C075
VALVE 4WAY
Notes: 20S, 20s - 4 way valve
[2] In Stock
SSA327B067
VALVE,SERVICE
Show Image
SSA327B067
[3] Out of Stock
PCB116A479
BRACKET
[4] In Stock
SSA381A748A
VALVE,SERVICE
Notes: GAS Show Image
SSA381A748A
[5] Contact
PCB381A077
VALVE SERVI
Contact
Notes: LIQ.
[6] In Stock
SSA387F044
EXP VALVE
Notes: EEVC or SM1, EEV Body Show Image
SSA387F044
[7] Out of Stock
SSA382A249
2VALVE
Substitute: OUT OF PRODUCTION Notes: SV2,3, OUT OF PRODUCTION
[8] Out of Stock
SSA357A029
STRAINER
[9] In Stock
SSA551D022C
SENSOR LP
Notes: LOW PRESSURE TRANSDUCER Show Image
SSA551D022C
[10] Out of Stock
SSA532A032GP
SWITCH HP
Notes: 63H2
[11] Contact
SSA325A033C
PIPE SHELL
Contact
[11-12] Out of Stock
PCB354A031D
SEPARATOR
[12] Contact
SSA385A049
VALVE,CHECK
Contact
[13] In Stock
SSA382A250
2WAY, VALVE
Notes: SV Show Image
SSA382A250
[13-15] Out of Stock
PCB321F054A
PIPE ASSY
[14] Contact
PCB315B806
CAPILLARY
Contact
Notes: !D1.2XD3.2 L500
[15] In Stock
SSA357A008BW
STRAINER
[16] In Stock
SSA532A032GR
SWITCH HP
Notes: 63H1-1,2 Show Image
SSA532A032GR
[17] In Stock
AGF201A445SL
GUC5192MS56
Notes: GU-C5176MS56, ***COMPRESSORS CANNOT BE RETURNED***
[18] In Stock
SSA352A072N
RECEIVER A
[19] In Stock
SSA357A059B
STRAINER
[20] Contact
SSA385A027A
CHECK VALVE
Contact
[21] In Stock
PCA541B011M
HEATER ASSY
Notes: CRANK CASE HEATER / COMPRESSOR CRANK HEATER/ LENGTH 161CM Show Image
PCA541B011M
[22] Contact
SSA941C158G
CUSHION RUB
Contact
[23] In Stock
SSA914C033
NUT
Notes: 1pc
[24] Contact
SSA915H039A
WASHER
Contact
Notes: 1pc ONLY
[25] Contact
SSA914C003
NUT
Contact
Notes: 1pc
[26] In Stock
AGT947K100
COVER TERMINAL
Show Image
AGT947K100
[27] In Stock
AGT932C100
GASKET COVER
Show Image
AGT932C100
[28] Out of Stock
SSA351A204G
ACCUMULATO
[29] In Stock
PCB382F092
COIL ASSY,S
Notes: FOR 20S Show Image
PCB382F092
[30] Out of Stock
PCB382F092C
COIL ASSY,S
Notes: FOR SV6, SV6 SOLENOID
[31] Contact
SSA382F212B
SOLENOID
Contact
Notes: FOR EEVC
[32] Contact
PCA382F013K
COIL ASSY,S
Contact
[33] Contact
PCB151D101
INSULA CON,
Contact
[34] Contact
PCB504A241AG
WIRING ASSY
Contact
Notes: !U
[35] Contact
PCB504A241H
WIRING ASSY
Contact
Notes: !V
[36] Contact
PCB504A241J
WIRING ASSY
Contact
Notes: !W
SKU: FDCA1001HES PIPING Category:
