FDCA1001HES CONTROL AND PARTS SET

Name: FDCA1001HES CONTROL AND PARTS SET
SKU: FDCA1001HES CONTROL AND PARTS SET
Availability: InStock

FDCA1001HES CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

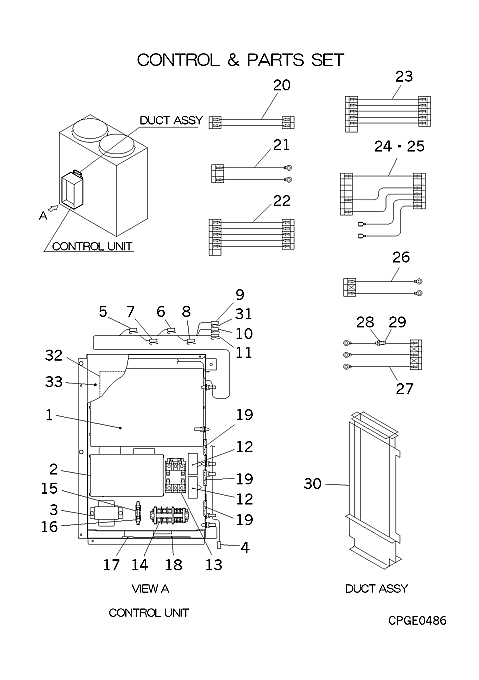

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCB505A042PB

PWB ASSY

Notes: PWB1, PWB1 - CONTROL BOARD

[1-29] Contact

PCB501A158H

CONTROL UNIT

Contact

Notes: NOT AVAILABLE

[2] In Stock

PCB505A041ZA

PWB

Notes: PWB4

[3] In Stock

PCB554A014C

TRANSFOMER

Notes: TR Show Image

[4] In Stock

PCB551A025A

SENSOR TH A

Notes: THO-A Show Image

[5] In Stock

PCB551A025B

SENSOR T D1

Notes: THO-D1 Show Image

[6] In Stock

PCB551A025P

SENSOR T C1

Notes: THO-C1, LENGTH 150CM Show Image

[7] In Stock

PSA099A092JH

SENSOR T S

Notes: THO-S

[8] In Stock

PSA099A092JJ

SENSOR ASSY

Notes: THO-R1, LENGTH 191CM - THO-R1 Show Image

[9] In Stock

PCB551A025J

SENSOR T R2

Notes: THO-R2 Show Image

[10] In Stock

PCB551A025K

SENSOR T R3

Notes: THO-R3 Show Image

[11] In Stock

PCB551A025L

SENSOR T R4

Notes: THO-R4 Show Image

[12] In Stock

SSA552A774

CAPACITOR

Notes: CFO1,2 Show Image

[13] In Stock

SSA521A189C

CONTACTOR

Notes: 52C1,2, 220-240V 50Hz, 240-260V 60Hz Show Image

[14] In Stock

SSA561B693A

BLOCK TERM

Notes: TB

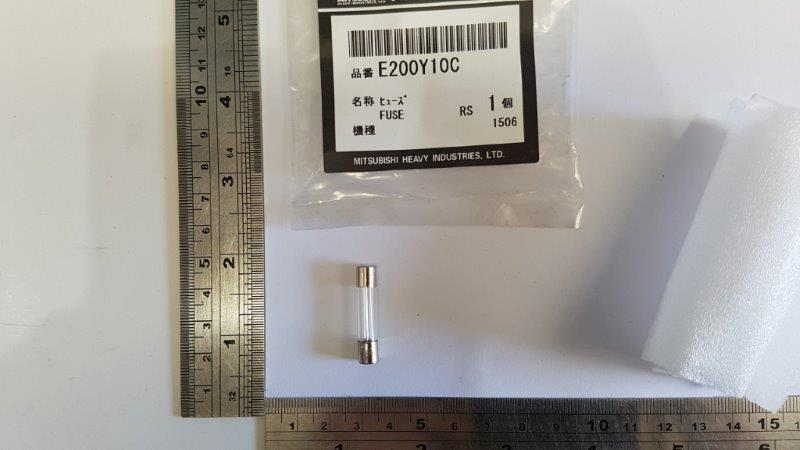

[15] In Stock

E200Y10C

FUSE

Notes: 10A, 10 AMP Show Image

[16] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[17] Contact

S751W20X

GROMMET

Contact

Notes: D25

[18] Contact

SSA947A002P

GROMMET

Contact

Notes: D80

[19] Contact

SSA947B017

GROMMET

Contact

[20] Out of Stock

PCB504A241P

WIRING ASSY

Notes: PWB1 CNZ1-PWB4 CNZ1

[21] Out of Stock

PCB504A241R

WIRING ASSY

Notes: PWB1 CNM1-52C,52C

[22] Out of Stock

PCB504A241V

WIRING ASSY

Notes: PWB1 CNT1-PWB4 CNT1

[23] Out of Stock

PCB504A241W

WIRING ASSY

Notes: PWB1 CNT2-PWB4 CNT2

[24] Out of Stock

PCB504A241Y

WIRING ASSY

Notes: PWB1 CNFM1,CFO1,CFO1-FM1 AC

[25] Out of Stock

PCB504A241Z

WIRING ASSY

Notes: PWB1 CNFM2,CFO2,CFO2-FM2 AC

[26] Out of Stock

PCB504A241AS

WIRING ASSY

Notes: PWB1 CNW2-TB1,TB1

[27-29] Out of Stock

PCB504A241AT

WIRING ASSY

Notes: 52C,TB1,52C-PWB1 CNW1

[28] In Stock

SSA564A072C

FUSE

Notes: 3.15A, 3.15 Amps Show Image

[29] In Stock

SSA564B059

HOLDER,FUSE

Show Image

[30] Contact

PCB438A013

DUCT ASSY

Contact

[31] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[32-33] Contact

PCB119A232AC

PLATE

Contact

[33] Contact

PSC011G510

LABEL,WIRING

Contact

[34] Contact

PSA011F944M

LABEL,MODEL NAME

Contact

SKU: FDCA1001HES CONTROL AND PARTS SET Category: Uncategorised
