FDC90VNP HEAT EXCH. AND CONTROL

Name: FDC90VNP HEAT EXCH. AND CONTROL
SKU: FDC90VNP HEAT EXCH. AND CONTROL
Availability: InStock

FDC90VNP HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

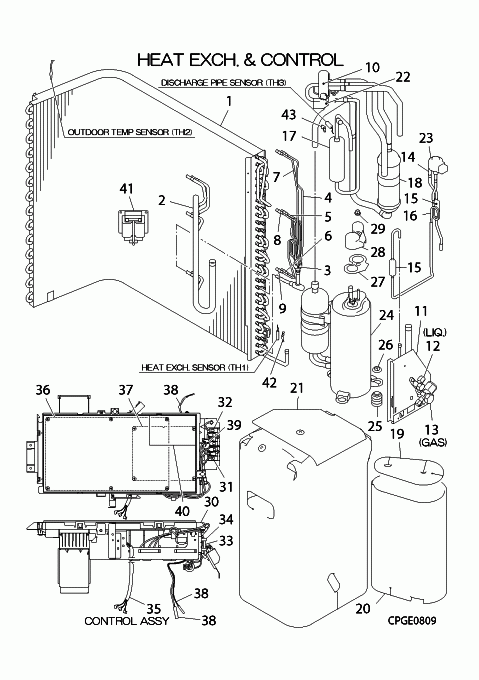

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-9] In Stock

RPC301A901WD

HEAT EXCH ASSY (AIR)

[2] Contact

RPC315D904AA

HEADER ASSY,GAS

Contact

[3] Contact

RSA315A005

DISTRIBUTOR

Contact

[3-9] In Stock

RPC315A900A

DISTRIBUTOR ASSY

[4] Contact

RPC315B911

CAPILLARY(1)

Contact

Notes: !D2.6XD4.0 L400

[5] Contact

RPC315B912

CAPILLARY(2)

Contact

Notes: !D2.6XD4.0 L500

[6] Contact

RPC315B914

CAPILLARY(4)

Contact

Notes: !D2.6XD4.0 L400

[7] Contact

RPC315B915

CAPILLARY(5)

Contact

Notes: !D2.6XD4.0 L500

[8] Contact

RPC315B919

CAPILLARY(3)

Contact

Notes: !D2.6XD4.0 L500

[9] Contact

RPC315B920

CAPILLARY(6)

Contact

Notes: !D2.6XD4.0 L500

[10] In Stock

SSA382C068

4 WAY VALVE

Notes: 20S, 20S - REVERSING VALVE BODY - (NOT COIL) Show Image

[11] In Stock

RCR116A003

BRACKET(VALVE)

Show Image

[12] In Stock

RCR381A003B

VALVE,SERVICE(1/4")

Notes: LIQ., LIQUID LINE SERVICE VALVE - 1/4' - LIQ. Show Image

[13] In Stock

RCR381A004

VALVE,SERVICE(5/8)

Notes: GAS, 5/8" GAS (SUCTION)

[14] In Stock

SSA387F065

VALVE,BODY(EXP)

Notes: EEV, EEV body Show Image

[14-16] Contact

PCA304A266

PIPING ASSY(EXPAN)

Contact

[15] In Stock

SSA357A005A

STRAINER

Show Image

[16] In Stock

RCP315B002

CAPILLARY,SUB

Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300‚ / LENGTH 8.5CM Show Image

[17] Contact

PCA325A007

PIPE SHELL

Contact

[18] In Stock

AHT351A001

ACCUMULATOR

Show Image

[19] Contact

RPC154D903

INSULATION,COMP

Contact

Notes: COMP UPPER

[20] In Stock

RPC154D904

INSULATION,COMP

Notes: COMP BODY

[21] Contact

RCR154D005

INSULATION

Contact

[22] In Stock

RPC382F900

COIL ASSY, SOLENOID

Notes: FOR 20S, REVERSING VALVE SOLENOID COIL Show Image

[23] In Stock

RCM382F001G

COIL,SOLENOID(EEV)

Notes: FOR EEV, HAS HARNESS ATTACHED-WHITE PLUG, MULTI COLOR WIRES Show Image

[24] In Stock

AHT201C184DA

COMPRESSOR ASSY

Notes: RMT5118MDE2, ***COMPRESSORS CANNOT BE RETURNED*** (RMT5118MDE2)

[25] In Stock

SSA941C351A

CUSHION,RUBBER

Notes: For Compressor - Sold individually

[26] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[27] In Stock

RSA932C004

GASKET

Show Image

[28] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[29] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[30] In Stock

RPC142A902

BOX,CONTROL(A)

[31] In Stock

SSA561B665

BLOCK,TERMINAL

Notes: T1 Show Image

[32] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[33] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: 20A, F 20A‚ - 20 amp fuse Show Image

[34] In Stock

SSA564B088

FUSE HOLDER

Show Image

[35] In Stock

RPC504A912A

WIRING ASSY

Notes: FOR COMP. Show Image

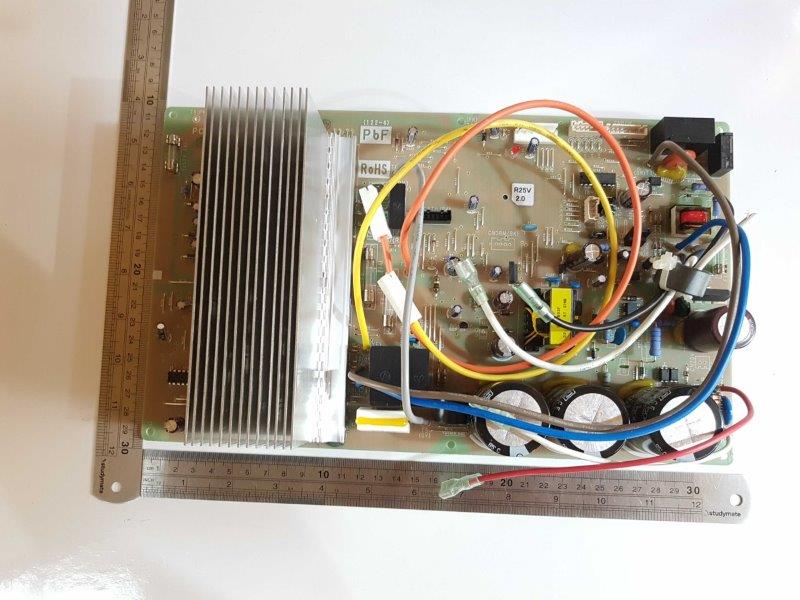

[36] In Stock

PCA505A157B

PWB ASSY MAIN

Notes: PWB1, PWB1 - MAIN

[37] In Stock

RCT505A009AC

PWB ASSY (SUB)

Notes: PWB2

[38] In Stock

SSA551A233

SENSOR ASSY

Notes: TH1,TH2,TH3, . INCLUDES ALL SENSORS ON OUTDOOR UNIT - TH1,TH2,TH3 Show Image

[39] In Stock

SSA554D173

CORE,FERRITE

[40] Contact

PCA011G001A

LABEL,WIRING

Contact

[41] In Stock

SSA554B113

REACTOR

Show Image

[42] In Stock

RKJ941F001

SPRING LEAF

Show Image

[43] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[44] Contact

PCA011F003A

LABEL,MODEL NAME

Contact
