FDC90VNP/1 HEAT EXCH. AND CONTROL

FDC90VNP/1 HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

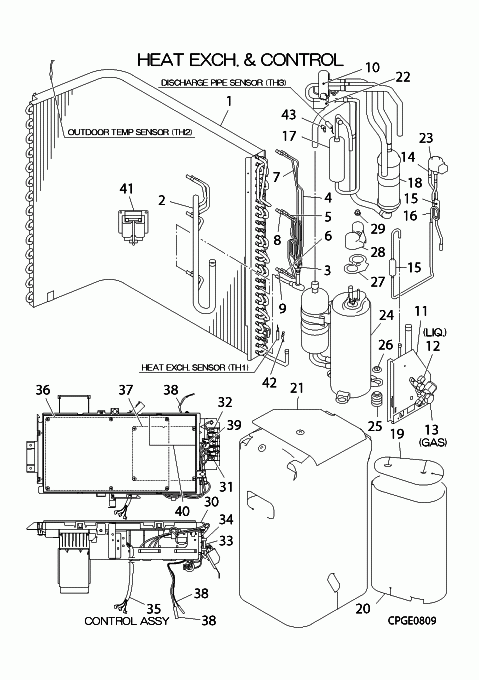

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-9] In Stock
RPC301A901WD
HEAT EXCH ASSY (AIR)
[2] Contact
RPC315D904AA
HEADER ASSY,GAS
Contact
Notes: !
[3] Contact
RSA315A005
DISTRIBUTOR
Contact
Notes: !
[3-9] In Stock
RPC315A900A
DISTRIBUTOR ASSY
[4] Contact
RPC315B911
CAPILLARY(1)
Contact
Notes: !D2.6XD4.0 L400
[5] Contact
RPC315B912
CAPILLARY(2)
Contact
Notes: !D2.6XD4.0 L500
[6] Contact
RPC315B914
CAPILLARY(4)
Contact
Notes: !D2.6XD4.0 L400
[7] Contact
RPC315B915
CAPILLARY(5)
Contact
Notes: !D2.6XD4.0 L500
[8] Contact
RPC315B919
CAPILLARY(3)
Contact
Notes: !D2.6XD4.0 L500
[9] Contact
RPC315B920
CAPILLARY(6)
Contact
Notes: !D2.6XD4.0 L500
[10] In Stock
SSA382C068
4 WAY VALVE
Notes: 20S, 20S - REVERSING VALVE BODY - (NOT COIL) Show Image
SSA382C068
[11] In Stock
RCR116A003
BRACKET(VALVE)
RCR116A003
[12] In Stock
RCR381A003B
VALVE,SERVICE(1/4")
Notes: LIQ., LIQUID LINE SERVICE VALVE - 1/4' - LIQ. Show Image
RCR381A003B
[13] In Stock
RCR381A004
VALVE,SERVICE(5/8)
Notes: GAS, 5/8" GAS (SUCTION)
[14] In Stock
SSA387F065
VALVE,BODY(EXP)
Notes: EEV, EEV body Show Image
SSA387F065
[14-16] Contact
PCA304A266
PIPING ASSY(EXPAN)
Contact
[15] In Stock
SSA357A005A
STRAINER
SSA357A005A
[16] In Stock
RCP315B002
CAPILLARY,SUB
Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300‚ / LENGTH 8.5CM Show Image
RCP315B002
[17] Out of Stock
PCA325A007
PIPE SHELL
Notes: !
[18] In Stock
AHT351A001
ACCUMULATOR
AHT351A001
[19] Contact
RPC154D903
INSULATION,COMP
Contact
Notes: COMP UPPER
[20] Contact
RPC154D904
INSULATION,COMP
Contact
Notes: COMP BODY
[21] Contact
RCR154D005
INSULATION
Contact
[22] In Stock
RPC382F900
COIL ASSY, SOLENOID
Notes: FOR 20S, REVERSING VALVE SOLENOID COIL Show Image
RPC382F900
[23] In Stock
RCM382F001G
COIL,SOLENOID(EEV)
Notes: FOR EEV, HAS HARNESS ATTACHED-WHITE PLUG, MULTI COLOR WIRES Show Image
RCM382F001G
[24] In Stock
AHT201C184DA
COMPRESSOR ASSY
Notes: RMT5118MDE2, ***COMPRESSORS CANNOT BE RETURNED*** (RMT5118MDE2)
[25] In Stock
SSA941C351A
CUSHION,RUBBER
Notes: For Compressor - Sold individually
[26] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[27] In Stock
RSA932C004
GASKET
RSA932C004
[28] In Stock
RSA947K005
COVER TERMINAL
Notes: FOR COMPRESSOR Show Image
RSA947K005
[29] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[30] In Stock
RPC142A902
BOX,CONTROL(A)
Notes: !
[31] In Stock
SSA561B665
BLOCK TERMI
Notes: T1 Show Image
SSA561B665
[32] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[33] In Stock
SSA564A136A
FUSE(CURRENT)
Notes: F 20A, F 20A‚  - 20 amp fuse Show Image
SSA564A136A
[34] In Stock
SSA564B088
HOLDER,FUSE
SSA564B088
[35] In Stock
RPC504A912A
WIRING ASSY
Notes: FOR COMP. Show Image
RPC504A912A
[36] In Stock
PCA505A157B
PWB ASSY MAIN
Notes: ONLY FOR SUPPLY PARTS PWB1, PWB1 - MAIN
[37] In Stock
RCT505A009AC
PWB ASSY (SUB)
Notes: ONLY FOR SUPPLY PARTS PWB2, PWB2
[38] In Stock
SSA551A233
SENSOR ASSY
Notes: TH1,TH2,TH3, . CONTAINS ALL SENSORS ON OUTDOOR UNIT Show Image
SSA551A233
[39] In Stock
SSA554D173
CORE,FERRITE
[40] Contact
PCA011G001A
LABEL,WIRING
Contact
Notes: !
[41] In Stock
SSA554B089
REACTOR
[42] In Stock
PSA941F001
SPRING LEAF
Substitute: RKJ941F001 Notes: FOR TH1, 1pc ONLY Show Image
PSA941F001
[43] In Stock
RCJ941F001
SPRING
Notes: FOR TH3, LENGTH 2.5CM Show Image
RCJ941F001
[44] Contact
PCA011F003A
LABEL,MODEL NAME
Contact
Notes: !
