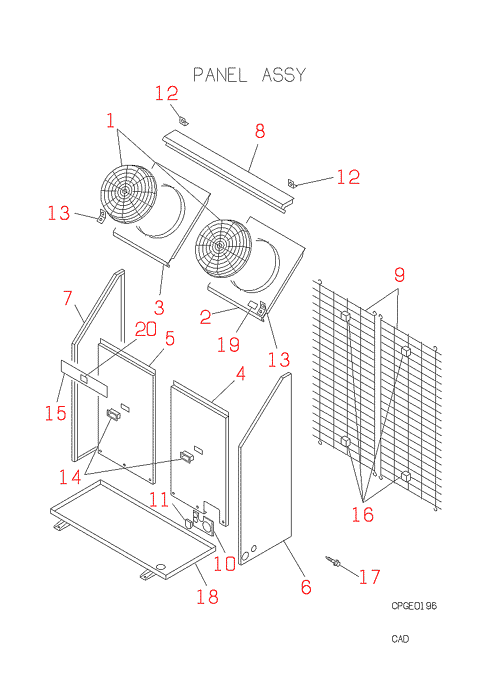

FDC808HES3 PANEL ASSY

FDC808HES3 PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCB131A012
GUARD FAN
[2] Contact
PCB433A021A
BELLMOUTH
Contact
[3] Out of Stock
PCB433A021
BELLMOUTH
Notes: LEFT
[4] Out of Stock
PCB122A056
PANEL FRONT
Notes: RIGHT
[5] Contact
PCB122A056F
PANEL FRONT
Contact
Notes: LEFT
[6] Contact
PCB123A061
SIDE PANEL
Contact
Notes: RIGHT
[7] Out of Stock
PCB123A062
SIDE PANEL
Notes: LEFT
[8] Contact
PCB124A019
TOP PANEL
Contact
[9] Contact
PCB131A008
FIN GUARD
Contact
Substitute: PCB131A011
[10-11] Contact
PCB142A253A
COVER
Contact
[11] Contact
SSA947B014A
GROMMET
Contact
[12] Out of Stock
PCB116A046D
BRACKET SUS
[13] Out of Stock
PCB116A046F
BRACKET SUS
[14] Out of Stock
SSA944B002F
HANDLE
[15] Contact
PCB142A251
COVER
Contact
[16] Contact
PCA941G002B
CUSHION RU
Contact
[17] Contact
SSA913D012A
SCREW 5/14
Contact
Notes: 5X14, 1pc ONLY
[18] Contact
PCB111A042C
BASE ASSY
Contact
[19] In Stock
RCG011H004A
LABEL,NOTIC
Show Image
RCG011H004A
[20] Contact
RSA011H005A
LABEL,NOTIC
Contact
