FDC808HES3 HEAT EXCH. ASSY

FDC808HES3 HEAT EXCH. ASSY

Available Parts

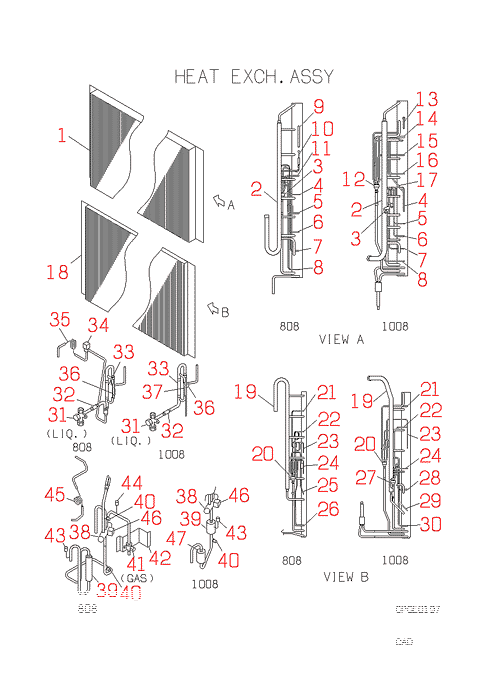

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCB311A024 HEAT EXCH Contact Notes: UPPER   Contact
  • [1-11] PCB301A076 HEAT EXCH Contact Notes: UPPER   Contact
  • [2] PCB315D103 HEADER ASSY,GAS(U) Contact Notes: !UPPER   Contact
  • [3] SSA315A256A DISTRIBUTOR Contact   Contact
  • [3-11] PCB315A069 DISTRI ASSY Contact Notes: UPPER   Contact
  • [4] PCB315B391 CAPILLARY(4) Contact Notes: !D2.0XD3.2 L300   Contact
  • [5] PCB315B488 CAPILLARY(5) Contact Notes: !D1.8XD3.2 L500   Contact
  • [6] PCB315B489 CAPILLARY(6) Contact Notes: !D1.8XD3.2 L500   Contact
  • [7] PCB315B490 CAPILLARY(7) Contact Notes: !D1.8XD3.2 L500   Contact
  • [8] PCB315B491 CAPILLARY(8) Contact Notes: !D2.0XD3.2 L500   Contact
  • [9] PCB315B485 CAPILLARY ASSY(1) Contact Notes: !D2.2XD3.2 L200   Contact
  • [10] PCB315B486 CAPILLARY(2) Contact Notes: !D2.2XD3.2 L300   Contact
  • [11] PCB315B487 CAPILLARY(3) Contact Notes: !D2.2XD3.2 L300   Contact
  • [18] PCB311A024A HEAT EXCH Contact Notes: LOWER   Contact
  • [18-26] PCB301A077 HEAT EXCH Contact Notes: LOWER   Contact
  • [19] PCB315D105 HEADER ASSY,GAS(L) Contact Notes: !LOWER   Contact
  • [20] SSA315A252K DISTRIBUTOR Contact   Contact
  • [20-26] PCB315A070 DISTRI ASSY Contact Notes: LOWER   Contact
  • [21] PCB315B493 CAPILLARY(1) Contact Notes: !D1.8XD3.2 L500   Contact
  • [22] PCB315B494 CAPILLARY(2) Contact Notes: !D1.8XD3.2 L500   Contact
  • [23] PCB315B495 CAPILLARY(3) Contact Notes: !D1.8XD3.2 L500   Contact
  • [24] PCB315B496 CAPILLARY(4) Contact Notes: !D1.8XD3.2 L500   Contact
  • [25] PCB315B497 CAPILLARY(5) Contact Notes: !D1.8XD3.2 L500   Contact
  • [26] PCB315B498 CAPILLARY ASSY(6) Contact Notes: !D2.2XD3.2 L300   Contact
  • [31] SSA381A035K VALVE SERVI Contact Notes: LIUQID   Contact
  • [31-36] PCB304A081 PIPNG ASSY Contact   Contact
  • [32] SSA357A007A STRAINER In Stock Substitute: SSA357A005AH Show Image
  • [33] SSA385A017 VALVE CHECK In Stock Show Image
  • [34] SSA382A088 VALVE(2WAY) In Stock Notes: SV1, SV1 Show Image
  • [34-35] PCB382A093 VALVE ASSY,S(2WAY) Contact   Contact
  • [35] PCB315B430 CAPILLARY ASSY Contact Notes: !D2.0XD3.2 L500   Contact
  • [36] PCB315B426 CAPILLARY Contact Notes: !D3.5XD5.0 L300   Contact
  • [38] SSA382C051 VALVE 4WAY In Stock Notes: REVERSING VALVE - 4 WAY VALVE -
  • [39] SSA325A001AM MUFFLER Contact   Contact
  • [40] SSA327B001A VALVE.SERVC Contact Substitute: RB87026C   Contact
  • [41] SSA381A719 VALVE SERVI Contact Notes: GAS   Contact
  • [42] PCB116A061B BRACKET Contact   Contact

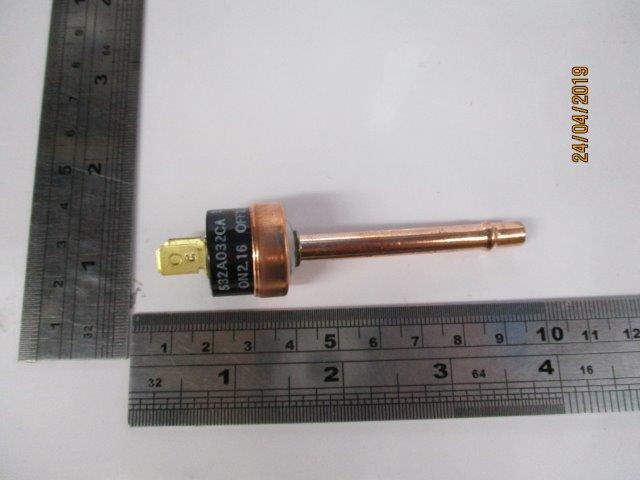

  • [43] SSA532A032CA SWITCH H P In Stock Notes: 63H1 Show Image
  • [44] SSA532A052F SWITCH,HP In Stock Substitute: RCC532A001A Notes: 63H2 Show Image
  • [45] PCB315B470 CAPILA,ASSY Contact Substitute: PCB315B681 Notes: D3.5XD5.0 L300   Contact
  • [46] PCB382F076B COIL In Stock Notes: 20S
  • [47] SSA325A001BF MUFFLER Contact   Contact
SKU: FDC808HES3 HEAT EXCH. ASSY Category:
