FDC615KXRE6 PANEL ASSY

FDC615KXRE6 PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

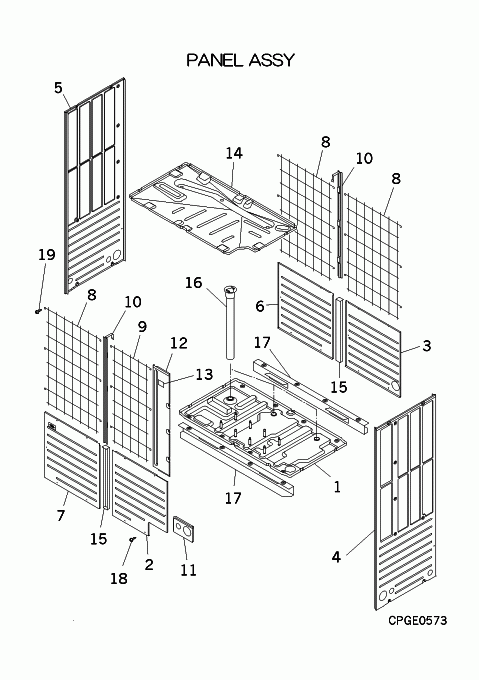

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB111A061AL
BASE ASSY
Contact
[2] Contact
PCB122A077AL
PANEL ASSY,FRONT
Contact
[3] Contact
PCB122A077AM
PANEL ASSY,FRONT
Contact
[4] Contact
PCB123A084G
PANEL ASSY,SIDE
Contact
[5] Contact
PCB123A084K
PANEL ASSY,SIDE
Contact
[6] Contact
PCB122A077AN
PANEL ASSY,FRONT
Contact
[7] Contact
PCB122A077BC
PANEL ASSY,FRONT
Contact
[8] Contact
PCB131A024
GUARD FAN
Contact
[9] Contact
PCB131A024A
GUARD FAN
Contact
[10] Contact
PCB115A098C
FRAME
Contact
[11] In Stock
PCB142A334F
COVER
PCB142A334F
[12] Contact
PCB122A079C
PANEL,FRONT(U)
Contact
[13] In Stock
RCG011H004C
LABEL,NOTICE
RCG011H004C
[14] Contact
PCB454A018S
PAN ASSY,DRAIN
Contact
[15] Contact
PCB115A090F
FRAME
Contact
[16] Contact
PCB423B001F
HOSE DRAIN
Contact
[17] Contact
PCB115A091C
STIFFENER
Contact
[18] In Stock
SSA913D020
SCREW TAP
Notes: M5X10, 1pc ONLY Show Image
SSA913D020
[19] In Stock
SSA913D020D
SCREW,TAP & WASHER
Notes: M5X14, 1pc ONLY, M5X14
SKU: FDC615KXRE6 PANEL ASSY Category:
