FDC560KXZE1/1 PIPING

FDC560KXZE1/1 PIPING

Available Parts

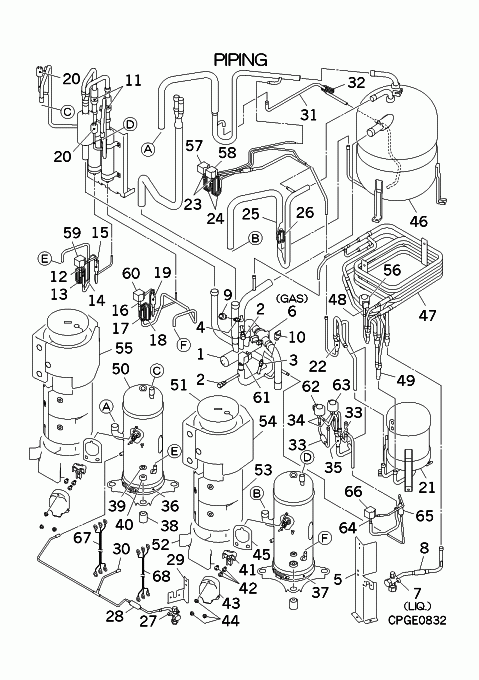

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] SSA382C094 VALVE,S(4WAY) Contact Notes: 20S   Contact
  • [2] SSA327B067 VALVE,SERVICE In Stock Show Image
  • [3] PCA327B056A VALVE ASSY,SERVICE Contact Substitute: SSA327B071D   Contact
  • [4] PCA327B056C VALVE,SERVICE In Stock
  • [5] PCB116A729 BRACKET Contact   Contact
  • [6] SSA381A748A VALVE,SERVICE In Stock Notes: GAS Show Image
  • [7] PCB381A080 VALVE SERVI In Stock Notes: LIQ. Show Image
  • [8] SSA357A007A STRAINER In Stock Substitute: SSA357A005AH Show Image
  • [9] SSA551D022F SENSOR,LP In Stock Notes: PSL, PSL Show Image
  • [10] SSA551D024F SENSOR,HP In Stock Notes: PSH, PSH Show Image
  • [11] SSA385A056 VALVE,CHECK Contact   Contact
  • [11-19] PCB354A068A OIL SEPARATOR Contact   Contact
  • [11-20] PCB354A067A SEPARATOR ASSY,OIL Contact   Contact
  • [12] SSA382A282 VALVE,S(2WAY) Contact Notes: SV6, SV6   Contact
  • [12-15] PCB382A255A VALVE ASSY Contact   Contact
  • [13] PCB315B831A CAPILLARY Contact Notes: !D2.2XD3.2 L340, !D2.2XD3.2 L340   Contact
  • [14] PCB315F154 CAPILLARY Contact Notes: !D1.1XD3.2 L500   Contact
  • [15] SSA357A053A STRAINER In Stock Show Image
  • [16] SSA382A282 VALVE,S(2WAY) Contact Notes: SV6, SV6   Contact
  • [16-19] PCB382A255 VALVE ASSY Contact   Contact
  • [17] PCB315B831 CAPILLARY Contact Notes: !D2.2XD3.2 L340, !D2.2XD3.2 L340   Contact
  • [18] PCB315F153 CAPILLARY Contact Notes: !D1.0XD3.2 L500   Contact
  • [19] SSA357A053A STRAINER In Stock Show Image
  • [20] SSA532A085NB SWITH HP In Stock Notes: 63H1-1 Show Image
  • [21] SSA352A129G RECEIVER ASSY Contact   Contact
  • [22] SSA357A054 STRAINER In Stock Show Image
  • [23] SSA382A282 VALVE,S(2WAY) Contact Notes: SV6, SV6   Contact
  • [23-24] PCB382A253B VALVE ASSY(2WAY) Contact   Contact
  • [24] PCB315B817 CAPILLARY Contact Notes: !D1.3XD3.2 L500, !D1.6XD3.2 L500   Contact
  • [25-26] PCB321G133C PIPE,SUCTION(2) Contact   Contact
  • [26] PCB315B303D CAPILLARY In Stock Notes: !D2.2XD3.2 L300, !D2.2XD3.2 L300 Show Image
  • [27] PCB381A078 VALVE SERVI Contact   Contact
  • [27-30] PCB321G137C PIPE ASSY Contact   Contact
  • [28] SSA357A005A STRAINER In Stock Substitute: ZZ60080A Show Image
  • [29] PCB116A732 BRACKET Contact   Contact
  • [30] PCB321G275 PIPE Contact   Contact
  • [31-32] PCB315B999A CAPILLARY ASSY Contact   Contact
  • [32] PCB315B303C CAPILLARY In Stock Notes: !D2.2XD3.2 L300
  • [33] SSA357A005P STRAINER In Stock Show Image
  • [34] SSA387F044 EXP VALVE In Stock Notes: EEVC or SM1 Show Image
  • [35] SSA357A054 STRAINER In Stock Show Image
  • [36] PCA541B031 HEATER ASSY(CRANK) In Stock Show Image
  • [37] PCA541B031A HEATER ASSY(CRANK) Contact   Contact
  • [38] SSA941C356 CUSHION,RUBBER In Stock
  • [39] SSA914C013 NUT In Stock Notes: 1PC Show Image
  • [40] SSA915H042 WASHER Contact Notes: 1PC ONLY   Contact
  • [41] ASA561B002 BLOCK,TERMINAL In Stock Substitute: RZ01208
  • [42] SSA912A001 SCREW Contact Substitute: RE60179 Notes: 1PC ONLY, M5X8   Contact
  • [43] AGT947K101 COVER,TERMINAL Out of Stock
  • [44] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [45] AGT151A101 GASKET Contact   Contact
  • [46] SSA351A234J ACCUMULATOR Contact   Contact
  • [47] PCB303A030 HEAT EXCH ASSY(LIQ Contact   Contact
  • [48] SSA387F045A VALVE EXPA In Stock Notes: EEVC, EEVC
  • [49] SSA357A055 STRAINER Contact   Contact
  • [50] AGT201C824FF COMPRESSOR In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***, GTC5150NC47LF
  • [51] PCA151D034 INSULATO CO Contact   Contact
  • [52] PCB151D100A INSULATION,COMP Contact   Contact
  • [53] PCB151D088B INSULATION,COMP Contact   Contact
  • [54] PCB151D117A INSULATION,COMP Contact   Contact
  • [55] PCB151D118A INSULATION,COMP Contact   Contact
  • [56] SSA382F212AB COIL,SOLENOID In Stock Notes: FOR EEVSC, FOR EEVSC Show Image
  • [57] PCB382F119DA COIL ASSY,SOLENOID In Stock Notes: FOR SV1
  • [58] PCB382F119DB COIL ASSY,SOLENOID Contact Notes: FOR SV2   Contact
  • [59] PCB382F119DD COIL ASSY,SOLENOID Contact Notes: FOR SV6   Contact
  • [60] PCB382F119DF COIL ASSY,SOLENOID Contact Notes: FOR SV7   Contact
  • [61] PCB382F119DL COIL ASSY,SOLENOID In Stock Notes: FOR 20S
  • [62] SSA382F212Z COIL,SOLENOID In Stock Notes: FOR EEVH1, FOR EEVH1 Show Image
  • [63] SSA382F212AA COIL,SOLENOID In Stock Notes: FOR EEVH2, FOR EEVH2 Show Image
  • [64] SSA382A282 VALVE,S(2WAY) Contact Notes: SV6, SV6   Contact
  • [65] SSA357A005A STRAINER In Stock Substitute: ZZ60080A Show Image
  • [66] PCB382F119DH COIL ASSY,SOLENOID Contact Notes: FOR SV11   Contact
  • [67] PCB504A338D WIRING ASSY Contact Notes: FOR COMP.   Contact
  • [68] PCB504A338C WIRING ASSY Contact Notes: CM2   Contact
SKU: FDC560KXZE1/1 PIPING Category:
