FDC560KXZE1/1 HEAT EXCH. ASSY

FDC560KXZE1/1 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

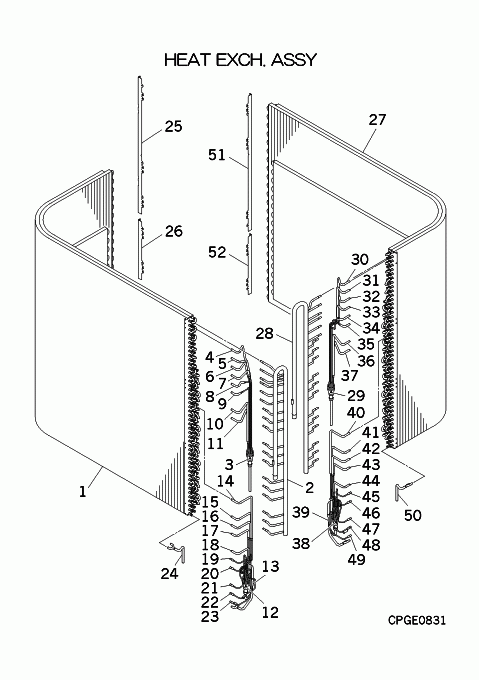

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB311A048
HEAT EXCH(AIR)
Contact
[1-26] In Stock
PCB301A238D
HEAT EXCH ASSY (AIR)
Notes: FRONT
[2] Contact
PCB315D251
HEADER ASSY,GAS
Contact
[3] Contact
SSA315A310A
DISTRIBUTOR
Contact
[3-11] Contact
PCB315A139
DISTRIBUTOR ASSY
Contact
[4] Contact
PCB315F155
CAPILLARY ASSY(1)
Contact
Notes: !D2.8XD4.0 L500
[5] Contact
PCB315F156
CAPILLARY ASSY(2)
Contact
Notes: !D3.0XD5.0 L500
[6] Contact
PCB315F157
CAPILLARY ASSY(3)
Contact
Notes: !D3.0XD5.0 L500
[7] Contact
PCB315F158
CAPILLARY ASSY(4)
Contact
Notes: !D2.8XD4.0 L500
[8] Contact
PCB315F159
CAPILLARY ASSY(5)
Contact
Notes: !D2.8XD4.0 L500
[9] Contact
PCB315F160
CAPILLARY ASSY(6)
Contact
Notes: !D2.4XD4.0 L500
[10] Contact
PCB315F161
CAPILLARY ASSY(7)
Contact
Notes: !D3.0XD5.0 L100
[11] Contact
PCB315F216
CAPILLARY ASSY(8)
Contact
Notes: !D3.0XD5.0 L200
[12] Contact
SSA315A310C
DISTRIBUTOR
Contact
[12-23] Contact
PCB315A140
DISTRIBUTOR ASSY
Contact
[13] Contact
PCB315A124
DISTRIBUTOR ASSY
Contact
[14] Contact
PCB315F162
CAPILLARY ASSY(9)
Contact
Notes: !D2.6XD4.0 L300
[15] Contact
PCB315F163
CAPILLARY ASSY(10)
Contact
Notes: !D3.0XD5.0 L200
[16] Contact
PCB315F164
CAPILLARY ASSY(11)
Contact
Notes: !D2.6XD4.0 L300
[17] Contact
PCB315F165
CAPILLARY ASSY(12)
Contact
Notes: !D2.2XD4.0 L300
[18] Contact
PCB315F166
CAPILLARY ASSY(13)
Contact
Notes: !D2.4XD4.0 L200
[19] Contact
PCB315F223
CAPILLARY(14)
Contact
Notes: !D2.4XD4.0 L300
[20] Contact
PCB315F224
CAPILLARY(15)
Contact
Notes: !D2.4XD4.0 L500
[21] Contact
PCB315F236
CAPILLARY(16)
Contact
Notes: !D2.4XD4.0 L300
[22] Contact
PCB315F225
CAPILLARY(17)
Contact
Notes: !D2.2XD4.0 L500
[23] Contact
PCB315F237
CAPILLARY(18)
Contact
Notes: !D2.2XD4.0 L300
[24] Contact
PCB321G231
PIPE ASSY(L)
Contact
[25] Contact
PCB141A042
PLATE,BAFFLE
Contact
Notes: UPPER
[26] Contact
PCB141A042A
PLATE,BAFFLE
Contact
Notes: LOWER
[27] Contact
PCB311A048A
HEAT EXCH(AIR)
Contact
[27-52] In Stock
PCB301A238F
HEAT EXCH ASSY (AIR)
Notes: REAR
[28] Contact
PCB315D253
HEADER ASSY,GAS
Contact
[29] Contact
SSA315A310A
DISTRIBUTOR
Contact
[29-37] Contact
PCB315A142
DISTRIBUTOR ASSY
Contact
[30] Contact
PCB315F167
CAPILLARY ASSY(1)
Contact
Notes: !D2.8XD4.0 L500
[31] Contact
PCB315F168
CAPILLARY ASSY(2)
Contact
Notes: !D3.0XD5.0 L500
[32] Contact
PCB315F169
CAPILLARY ASSY(3)
Contact
Notes: !D3.0XD5.0 L500
[33] Contact
PCB315F170
CAPILLARY ASSY(4)
Contact
Notes: !D2.8XD4.0 L500
[34] Contact
PCB315F171
CAPILLARY ASSY(5)
Contact
Notes: !D2.8XD4.0 L500
[35] Contact
PCB315F172
CAPILLARY ASSY(6)
Contact
Notes: !D2.4XD4.0 L500
[36] Contact
PCB315F173
CAPILLARY ASSY(7)
Contact
Notes: !D3.0XD5.0 L100
[37] Contact
PCB315F218
CAPILLARY ASSY(8)
Contact
Notes: !D3.0XD5.0 L200
[38] Contact
SSA315A310C
DISTRIBUTOR
Contact
[38-49] Contact
PCB315A143
DISTRIBUTOR ASSY
Contact
[39] Contact
PCB315A124
DISTRIBUTOR ASSY
Contact
[40] Contact
PCB315F174
CAPILLARY ASSY(9)
Contact
Notes: !D2.6XD4.0 L300
[41] Contact
PCB315F175
CAPILLARY ASSY(10)
Contact
Notes: !D3.0XD5.0 L200
[42] Contact
PCB315F176
CAPILLARY ASSY(11)
Contact
Notes: !D2.6XD4.0 L300
[43] Contact
PCB315F177
CAPILLARY ASSY(12)
Contact
Notes: !D2.2XD4.0 L300
[44] Contact
PCB315F178
CAPILLARY ASSY(13)
Contact
Notes: !D2.4XD4.0 L200
[45] Contact
PCB315F229
CAPILLARY(14)
Contact
Notes: !D2.0XD4.0 L300
[46] Contact
PCB315F230
CAPILLARY(15)
Contact
Notes: !D2.0XD4.0 L500
[47] Contact
PCB315F238
CAPILLARY(16)
Contact
Notes: !D2.4XD4.0 L300
[48] Contact
PCB315F231
CAPILLARY(17)
Contact
Notes: !D2.2XD4.0 L500
[49] Contact
PCB315F239
CAPILLARY(18)
Contact
Notes: !D2.2XD4.0 L300
[50] Contact
PCB321G231A
PIPE ASSY(L)
Contact
[51] Contact
PCB141A042
PLATE,BAFFLE
Contact
Notes: UPPER
[52] Contact
PCB141A042A
PLATE,BAFFLE
Contact
Notes: LOWER
