FDC560KXZE1/1 CONTROL AND PARTS SET

FDC560KXZE1/1 CONTROL AND PARTS SET

Available Parts

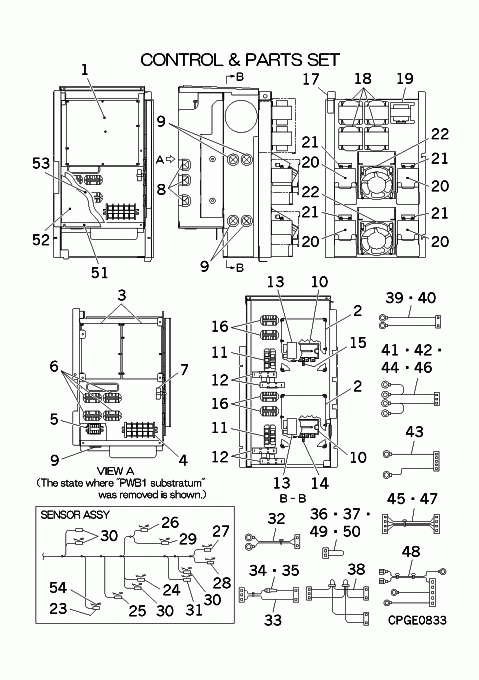

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCB505A202NF PWB ASSY CO In Stock Substitute: PCB505A202NH Notes: PWB1 Show Image
  • [1-50] PCB501A274H CONTROL UNIT Contact   Contact
  • [2] PCB505A196AA PWB ASSY (INV.) In Stock Notes: PWB2 Show Image
  • [3] PCB505A201AA PWB ASSY (N.F) In Stock Notes: PWB3 Show Image
  • [4] SSA561B712A BLOCK TERMINAL In Stock Notes: TB1 Show Image
  • [5] SSA561B693W BLOCK,TERMI In Stock Notes: TB2 Show Image
  • [6] SSA521A715A RELAY In Stock Notes: 52X1,52X2, 52X1-1,1-2,2-1,2-2
  • [7] SSA552D081 FILTER,NOISE In Stock
  • [8] SSA947B017 GROMMET Contact   Contact
  • [9] S751W30X GROMMET V14 In Stock Notes: D35 Show Image
  • [10] PCB008A213C TRANSISTOR(POWER) In Stock Notes: COMES WITH HEAT PASTE AND SCREWS, TM
  • [11] PCB008A212A DIODE(MODULE) In Stock Notes: DM Show Image
  • [12] SSA553A577 RESISTOR Contact Notes: R1-1,2,5   Contact
  • [13] SSA552F694 CAPACITOR Out of Stock Notes: 1250V 2.2UF (D.P)
  • [14] SSA551A192P SENSOR ASSY In Stock Notes: THO-P1, THO-P1 Show Image
  • [15] SSA551A192R SENSOR ASSY In Stock Notes: THO-P2, THO-P2
  • [16] SSA521A727 RELAY In Stock Notes: 52X1, 52X1-1,1-2,2-1,2-2
  • [17] PCB438A043B DUCT ASSY Contact   Contact
  • [18] SSA554B097 REACTOR In Stock Notes: L1-1,2,L2-1,2
  • [19] SSA554B073 REACTOR In Stock Notes: L3 Show Image
  • [20] SSA552F427AK CAPACITOR In Stock Notes: 4700 MICRO FARADS, C1-1,C2-1,C1-2,C2-2 Show Image
  • [21] SSA553A380 RESISTOR In Stock Notes: 30 KO (KILO-OHM), R1-3,4,R2-3,4
  • [22] PCB511A006F MOTOR ASSY, In Stock
  • [23] PSA551A015C SENSOR ASSY In Stock Notes: THO-C1
  • [24] PSA551A015D SENSOR ASSY In Stock Notes: THO-C2 Show Image
  • [25] PSA551A015F SENSOR ASSY In Stock Substitute: PCB551A039F Notes: THO-D2, THO-D2 Show Image
  • [26] PSA551A016G SENSOR ASSY In Stock Notes: THO-H
  • [27] PSA551A015J SENSOR ASSY In Stock Notes: THO-R3, THO-R3
  • [28] PSA551A015K SENSOR ASSY In Stock Notes: THO-R4
  • [29] PSA551A015L SENSOR ASSY In Stock Notes: THO-SC Show Image
  • [30] PCB551A034N SENSOR ASSY Contact Substitute: PSA551A016N Notes: THO-A,D1,R1,S   Contact
  • [31] PCB551A034P SENSOR ASSY Contact Substitute: PSA551A016P Notes: SUB =PSA551A016P, THO-R2   Contact
  • [32] PCB504A308AF WIRING ASSY Contact Notes: TB2 A1,TB2 B1- PWB1 CNX1, TB2 A1,TB2 B1- PWB1 CNX1   Contact
  • [33-35] PCB504A373AG WIRING ASSY In Stock Notes: PWB1 CNA1-PWB1 CNA3- Show Image
  • [34] SSA564A149AG FUSE(CURRENT) In Stock Notes: F 4A - 4 AMP FUSE - ****NOT MAIN FUSE****, 4A Show Image
  • [35] RWC564B002 HOLDER,FUSE In Stock Show Image
  • [36] PCB504A284BB WIRING ASSY Contact Notes: PWB1 CNS1, PWB1 CNS1   Contact
  • [37] PCB504A284BC WIRING ASSY In Stock Notes: PWB1 CNS2, PWB1 CNS2 Show Image
  • [38] PCB504A308AH WIRING ASSY Contact Notes: PWB1 CNN8- FMC1,FMC2, PWB1 CNN8- FMC1,FMC2   Contact
  • [39] PCB504A284BF WIRING ASSY Contact Notes: TB2 A1,TB2 B1- CNSL1, TB2 A1,TB2 B1- CNSL1   Contact
  • [40] PCB504A284BG WIRING ASSY Contact Notes: TB2 A2,TB2 B2- CNSL2, TB2 A2,TB2 B2- CNSL2   Contact
  • [41] PCB504A308AW WIRING ASSY Contact Notes: 52X1-2 5,52X1-1 5,52X1-1 6,52X1-2 6- PWB1 CNM1, 52X1-2 5,52X1-1 5,52X1-1 6,52X1-2 6- PWB1 CNM1   Contact
  • [42] PCB504A308AY WIRING ASSY Contact Notes: 52X2-2 5,52X2-1 5,52X2-1 6,52X2-2 6- PWB1 CNM2   Contact
  • [43] PCB504A331N WIRING ASSY Contact Notes: IPM1 P,IPM1 N- PWB2-1 CNA   Contact
  • [44] PCB504A338L WIRING ASSY Contact Notes: 52X1-4 5,52X1-3 5,52X1-3 6,52X1-4 6- PWB2-1 CNR   Contact
  • [45] PCB504A308J WIRING ASSY Contact Notes: PWB2-1 CNI3- PWB2-2 CNI3, PWB2-1 CNI3- PWB2-2 CNI3   Contact
  • [46] PCB504A338M WIRING ASSY Contact Notes: 52X2-4 5,52X2-3 5,52X2-3 6,52X2-4 6- PWB2-2 CNR   Contact
  • [47] PCB504A331AG WIRING ASSY Contact Notes: PWB1 CNI1- PWB2-2 CNI2   Contact
  • [48] PCB504A308D WIRING ASSY In Stock Notes: CONNECTS FROM PWB1 TO PWB3 AND L3 REACTOR
  • [49] PCB504A284AP WIRING ASSY Contact Notes: PWB1 CNG1, PWB1 CNG1   Contact
  • [50] PCB504A284AR WIRING ASSY Contact Notes: PWB1 CNG2, PWB1 CNG2   Contact
  • [51-53] PCB142A463R COVER ASSY(CONTROL Contact   Contact
  • [52] PCB011G015AB LABEL,WIRING Contact Notes: !SURFACE ATTACHMENT   Contact
  • [53] PCB011G015A LABEL,WIRING Contact Notes: !BACK ATTACHMENT   Contact
  • [54] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR SENSOR Show Image
  • [55] PSB011F130SH LABEL,MODEL NAME Contact   Contact
SKU: FDC560KXZE1/1 CONTROL AND PARTS SET Category:
