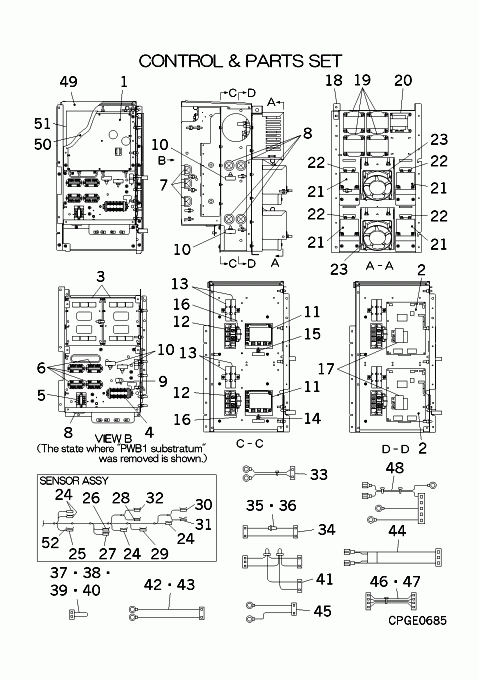

FDC560KXE6/A CONTROL AND PARTS SET

FDC560KXE6/A CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCB505A131KA
PWB ASSY (CONTROL)
Notes: ONLY FOR SUPPLY PARTS PWB1, PWB1 - CONTROL BOARD Show Image
PCB505A131KA
[1-48] Contact
PCB501A214J
CONTROL UNIT
Contact
Notes: !, NOT AVAILABLE
[2] In Stock
PCB505A062AB
PWB ASSY(INV.)
Notes: ONLY FOR SUPPLY PARTS PWB2-1,2, PWB2-1,2 Show Image
PCB505A062AB
[3] In Stock
PCB505A035H
PWB ASSY(N.F)
Notes: PWB3-1,2, PWB3‚  - NOISE FILTER Show Image
PCB505A035H
[4] In Stock
SSA561B712A
BLOCK TERMINAL
Notes: TB1 Show Image
SSA561B712A
[5] In Stock
SSA561B693W
BLOCK,TERMI
Notes: TB2 Show Image
SSA561B693W
[6] In Stock
SSA521A715A
RELAY
Notes: 52X1-1,1-2,2-1,2-2, 52X1,52X2
[7] Contact
SSA947B017
GROMMET
Contact
[8] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[9] In Stock
PCA552D003C
KILLER,NOISE ASSY
PCA552D003C
[10] In Stock
SSA552D040Y
FILTER,NOISE
SSA552D040Y
[11] In Stock
PCB008A120A
TRANSISTOR
Notes: TM, IPM (Intelligent Power Module) / POWER TRANSISTOR
[12] In Stock
PCB008A121A
DIODE STACK
Notes: DM, aka DIODE MODULE Show Image
PCB008A121A
[13] In Stock
SSA553A379
RESISTOR
Notes: R1-1,2,R2-1,2, 15O (Ohm) Show Image
SSA553A379
[14] In Stock
SSA551A192W
SENSOR ASSY
Notes: THO-P1
[15] In Stock
SSA551A192R
SENSOR ASSY
Notes: THO-P2, THO-P2 (POWER TRANSISTOR SENSOR)/ LENGTH 100CM Show Image
SSA551A192R
[16] In Stock
PCB555B003C
VARISTOR ASSY
PCB555B003C
[17] In Stock
SSA552F694
CAPACITOR
Notes: 1250v 2.2uf
[18] Contact
PCB438A032B
DUCT ASSY
Contact
[19] In Stock
SSA554B097
REACTOR
Notes: L1-1,2,L2-1,2
[20] In Stock
SSA554B073
REACTOR
Notes: L3 Show Image
SSA554B073
[21] In Stock
SSA552F427AK
CAPACITOR
Notes: C1-1,2,C2-1,2, 4700 MICRO FARADS Show Image
SSA552F427AK
[22] Out of Stock
SSA553A380
RESISTOR
Notes: R1-3,4,R2-3,4, 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image
SSA553A380
[23] In Stock
PCB511A006F
MOTOR ASSY,
[24] In Stock

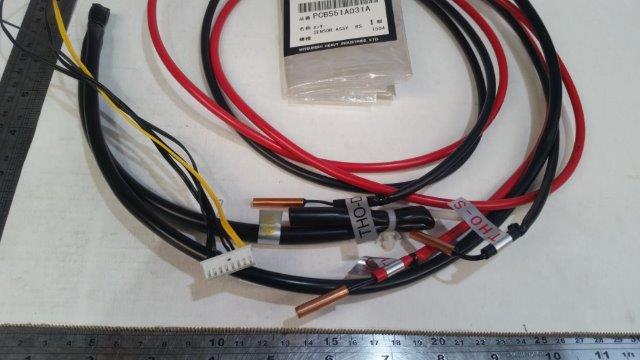

PCB551A031A
SENSOR ASSY
Notes: THO-A,D1,R1,S Show Image
PCB551A031A
[25] In Stock
PSA551A015C
SENSOR ASSY
Notes: THO-C1, UNDER-DOME SENSOR Show Image
PSA551A015C
[26] In Stock
PSA551A015D
SENSOR ASSY
Notes: THO-C2, UNDER-DOME SENSOR Show Image
PSA551A015D
[27] In Stock
PSA551A015F
SENSOR ASSY
Notes: THO-D2, THO-D2 (DISCHARGE PIPE SENSOR 2) Show Image
PSA551A015F
[28] In Stock
PCB551A031G
SENSOR ASSY
Notes: THO-H, THO-H (SUB-COOLING COIL THERMISTOR 2) Show Image
PCB551A031G
[29] In Stock
PCB551A031H
SENSOR ASSY
Notes: THO-R2 Show Image
PCB551A031H
[30] In Stock
PSA551A015J
SENSOR ASSY
Notes: THO-R3, THO-R3/ LENGTH 22.5CM
[31] In Stock
PSA551A015K
SENSOR ASSY
Notes: THO-R4 Show Image
PSA551A015K
[32] In Stock
PSA551A015L
SENSOR ASSY
Notes: THO-SC, SUB-COOLING THERMISTOR 1 Show Image
PSA551A015L
[33] Contact
PCB504A308AF
WIRING ASSY
Contact
Notes: TB2 A1,TB2 B1- PWB1 CNX1
[34-36] Contact
PCB504A308AG
WIRING ASSY
Contact
Notes: IPM1 P,IPM1 N- PWB2-1 CNAIPM2 P,IPM2 N- PWB2-2 CNA, PWB1 CNA1 CNA3-
[35] In Stock
SSA564A112
FUSE
Notes: F 5A, 5 AMP FUSE
[36] In Stock
RWC564B002
HOLDER,FUSE
RWC564B002
[37] Contact
PCB504A284BB
WIRING ASSY
Contact
Notes: PWB1 CNS1
[38] In Stock
PCB504A284BC
WIRING ASSY
Notes: PWB1 CNS2 Show Image
PCB504A284BC
[39] Contact
PCB504A284AP
WIRING ASSY
Contact
Notes: PWB1 CNG1
[40] Contact
PCB504A284AR
WIRING ASSY
Contact
Notes: PWB1 CNG2
[41] Contact
PCB504A308AH
WIRING ASSY
Contact
Notes: PWB1 CNN8- FMC1,FMC2
[42] Contact
PCB504A295
WIRING ASSY
Contact
Notes: TB2 A1,TB2 B1- CNSL1
[43] Contact
PCB504A295B
WIRING ASSY
Contact
Notes: TB2 A2,TB2 B2- CNSL2
[44] Out of Stock
PCA504A273
WIRING ASSY
Substitute: OUT OF PRODUCTION Notes: DM1 G,DM1 K- PWB2-1 CNRDM2 G,DM2 K- PWB2-2 CNR, OUT OF PRODUCTION. DM1 G,DM1 K- PWB2-1 CNR Show Image
PCA504A273
[45] In Stock
PCB504A308G
WIRING ASSY
Notes: IPM1 P,IPM1 N- PWB2-1 CANIPM2 P,IPM2 N- PWB2-2 CAN Show Image
PCB504A308G
[46] Contact
PCB504A308H
WIRING ASSY
Contact
Notes: PWB1 CNI1- PWB2-2 CNI2
[47] Contact
PCB504A308J
WIRING ASSY
Contact
Notes: PWB2-1 CNI3- PWB2-2 CNI3
[48] In Stock
PCB504A308D
WIRING ASSY
Notes: Connects from PWB1 to PWB3 & L3 REACTOR Show Image
PCB504A308D
[49-51] Contact
PCB142A445
COVER ASSY(CONTROL
Contact
[50] Contact
PCB011G009A
LABEL,WIRING
Contact
Notes: !BACK ATTACHMENT
[51] Contact
PCB011G009AA
LABEL,WIRING
Contact
Notes: !SURFACE ATTACHMENT
[52] In Stock
PSA941F001
SPRING LEAF
Notes: FOR SENSOR ASSY, 1pc ONLY Show Image
PSA941F001
[53] Contact
PSB011F021HY
LABEL,MODEL NAME
Contact
Notes: !
SKU: FDC560KXE6/A CONTROL AND PARTS SET Category:
