FDC504KXRE6/D HEAT EXCH. ASSY

FDC504KXRE6/D HEAT EXCH. ASSY

Available Parts

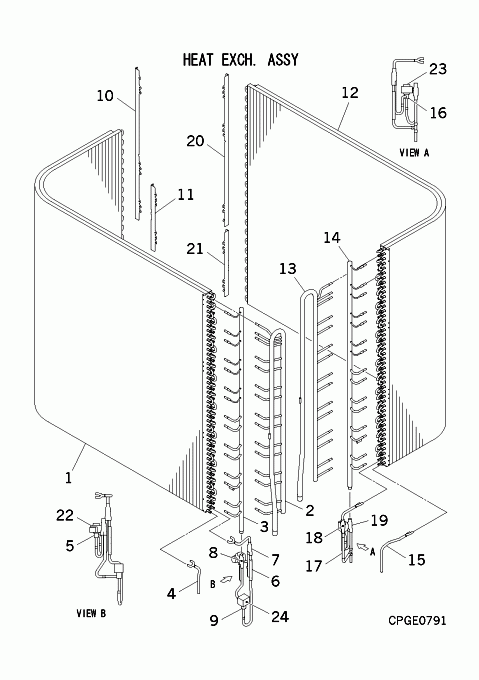

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCB311A051 HEATEXCH(AIR) Contact   Contact
  • [1-11] PCB301A164D HEATEXCHASSY(AIR Contact Notes: FRONT   Contact
  • [5] SSA387F039A EXP VALVE In Stock Notes: COOLING / HEATING, EEV Show Image
  • [5-9] PCB387F094 VALVE ASSY,EXPANSI Contact   Contact
  • [6] SSA385A052 VALVE,CHECK In Stock Show Image
  • [9] SSA382A271 VALVE,S(2WAY) Out of Stock Notes: SV4, SV4
  • [12] PCB311A051A HEATEXCH(AIR) Contact   Contact
  • [12-21] PCB301A164F HEATEXCHASSY(AIR Contact Notes: REAR   Contact
  • [16] SSA387F039A EXP VALVE In Stock Notes: COOLING / HEATING, EEV Show Image
  • [16-19] PCB387F091B VALVE ASSY,EXPANSI Contact   Contact
  • [17] SSA385A052 VALVE,CHECK In Stock Show Image
  • [22] SSA382F212Z COIL,SOLENOID In Stock Notes: FOR EEVH1, FOR EEVH1 Show Image
  • [23] SSA382F212AA COIL,SOLENOID In Stock Notes: FOR EEVH2, FOR EEVH2 Show Image
  • [24] PCB382F119BC COIL ASSY,SOLENOID Contact Notes: FOR SV4   Contact
SKU: FDC504KXRE6/D HEAT EXCH. ASSY Category:
