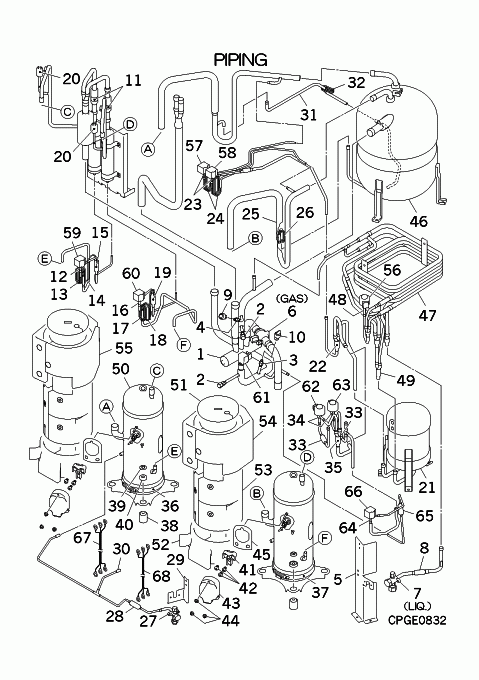

FDC500KXZE1/1 PIPING

FDC500KXZE1/1 PIPING

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
SSA382C094
VALVE,S(4WAY)
Notes: 20S
[2] In Stock
SSA327B067
VALVE,SERVICE
SSA327B067
[3] Contact
PCA327B056A
VALVE ASSY,SERVICE
Contact
Substitute: SSA327B071D
[4] In Stock
PCA327B056C
VALVE,SERVICE
PCA327B056C
[5] Contact
PCB116A729
BRACKET
Contact
[6] In Stock
SSA381A748A
VALVE,SERVICE
Notes: GAS Show Image
SSA381A748A
[7] In Stock
PCB381A080
VALVE SERVI
Notes: LIQ., LIQ Show Image
PCB381A080
[8] In Stock
SSA357A007A
STRAINER
SSA357A007A
[9] In Stock
SSA551D022V
SENSOR,LP
Notes: PSL
[10] In Stock
SSA551D024F
SENSOR,HP
Notes: PSH Show Image
SSA551D024F
[11] Contact
SSA385A056
VALVE,CHECK
Contact
Substitute: SSA385A059
[11-19] Contact
PCB354A068A
OIL SEPARATOR
Contact
[11-20] In Stock
PCB354A067A
SEPARATOR ASSY,OIL
[12] In Stock
SSA382A282
VALVE,S(2WAY)
Notes: SV11, SV6/ LENGTH 6.9CM Show Image
SSA382A282
[12-15] Contact
PCB382A255A
VALVE ASSY
Contact
[13] Contact
PCB315B831A
CAPILLARY
Contact
Notes: !D2.2XD3.2 L340
[14] Contact
PCB315F154
CAPILLARY
Contact
Notes: !D1.1XD3.2 L500
[15] In Stock
SSA357A053A
STRAINER
SSA357A053A
[16] In Stock
SSA382A282
VALVE,S(2WAY)
Notes: SV11, SV6/ LENGTH 6.9CM Show Image
SSA382A282
[16-19] Contact
PCB382A255
VALVE ASSY
Contact
[17] Contact
PCB315B831
CAPILLARY
Contact
Notes: !D2.2XD3.2 L340
[18] Contact
PCB315F153
CAPILLARY
Contact
Notes: !D1.0XD3.2 L500
[19] In Stock
SSA357A053A
STRAINER
SSA357A053A
[20] In Stock
SSA532A085NB
SWITH HP
Notes: 63H1-1,2 Show Image
SSA532A085NB
[21] Contact
SSA352A129G
RECEIVER ASSY
Contact
[22] In Stock
SSA357A054
STRAINER
SSA357A054
[23] In Stock
SSA382A282
VALVE,S(2WAY)
Notes: SV11, SV6/ LENGTH 6.9CM Show Image
SSA382A282
[23-24] Contact
PCB382A253B
VALVE ASSY(2WAY)
Contact
[24] Contact
PCB315B817
CAPILLARY
Contact
Notes: !D1.3XD3.2 L500
[25-26] Contact
PCB321G133C
PIPE,SUCTION(2)
Contact
[26] In Stock
PCB315B303D
CAPILLARY
Notes: !D2.2XD3.2 L300 Show Image
PCB315B303D
[27] Contact
PCB381A078
VALVE SERVI
Contact
[27-30] In Stock
PCB321G137C
PIPE ASSY
[28] In Stock
SSA357A005A
STRAINER
SSA357A005A
[29] Contact
PCB116A732
BRACKET
Contact
[30] Contact
PCB321G275
PIPE
Contact
[31-32] Contact
PCB315B999A
CAPILLARY ASSY
Contact
[32] In Stock
PCB315B303C
CAPILLARY
Notes: !D2.2XD3.2 L300, LENGTH 6.5CM Show Image
PCB315B303C
[33] Out of Stock
SSA357A005P
STRAINER
SSA357A005P
[34] In Stock
SSA387F044
EXP VALVE
Notes: EEVH1,2, EEV Body Show Image
SSA387F044
[35] In Stock
SSA357A054
STRAINER
SSA357A054
[36] In Stock
PCA541B031
HEATER ASSY(CRANK)
PCA541B031
[37] Contact
PCA541B031A
HEATER ASSY(CRANK)
Contact
[38] In Stock
SSA941C356
CUSHION,RUBBER
Notes: 1pc only Show Image
SSA941C356
[39] In Stock
SSA914C033
NUT
Notes: 1pc
[40] In Stock
SSA915H042
WASHER
Notes: 1pc ONLY
[41] In Stock
ASA561B002
BLOCK,TERMINAL
[42] Out of Stock
SSA912A001
SCREW
Substitute: RE60179 Notes: M5X8, 1pc ONLY
[43] In Stock
PCB008A195
PARTS SET
Notes: Includes Cover, Nuts x3 & Gasket Show Image
PCB008A195
[44] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[45] Contact
AGT151A101
GASKET
Contact
[46] Contact
SSA351A234J
ACCUMULATOR
Contact
[47] Contact
PCB303A030
HEAT EXCH ASSY(LIQ
Contact
[48] In Stock
SSA387F045A
VALVE EXPA
Notes: EEVSC, EEVC
[49] In Stock
SSA357A055
STRAINER
[50] In Stock
AGT201C824FF
COMPRESSOR
Notes: GTC5150NC47LF, ***COMPRESSORS CANNOT BE RETURNED***
[51] In Stock
PCA151D034
INSULATO CO
[52] In Stock
PCB151D100A
INSULATION,COMP
[53] In Stock
PCB151D088B
INSULATION,COMP
[54] Contact
PCB151D117A
INSULATION,COMP
Contact
[55] Contact
PCB151D118A
INSULATION,COMP
Contact
[56] In Stock
SSA382F212AB
COIL,SOLENOID
Notes: FOR EEVSC Show Image
SSA382F212AB
[57] In Stock
PCB382F119DA
COIL ASSY,SOLENOID
Notes: FOR SV1, LENGTH 137CM Show Image
PCB382F119DA
[58] Contact
PCB382F119DB
COIL ASSY,SOLENOID
Contact
Notes: FOR SV2
[59] In Stock
PCB382F119DD
COIL ASSY,SOLENOID
Notes: FOR SV6
[60] In Stock
PCB382F119DF
COIL ASSY,SOLENOID
Notes: FOR SV7
[61] In Stock
PCB382F119DL
COIL ASSY,SOLENOID
Notes: FOR 20S, LENGTH 141CM Show Image
PCB382F119DL
[62] In Stock
SSA382F212Z
COIL,SOLENOID
Notes: FOR EEVH1 Show Image
SSA382F212Z
[63] In Stock
SSA382F212AA
COIL,SOLENOID
Notes: FOR EEVH2 Show Image
SSA382F212AA
[64] In Stock
SSA382A282
VALVE,S(2WAY)
Notes: SV11, SV6/ LENGTH 6.9CM Show Image
SSA382A282
[65] In Stock
SSA357A005A
STRAINER
SSA357A005A
[66] Contact
PCB382F119DH
COIL ASSY,SOLENOID
Contact
Notes: FOR SV11
[67] Contact
PCB504A338D
WIRING ASSY
Contact
Notes: FOR CM1
[68] Contact
PCB504A338C
WIRING ASSY
Contact
Notes: FOR CM2
SKU: FDC500KXZE1/1 PIPING Category:
