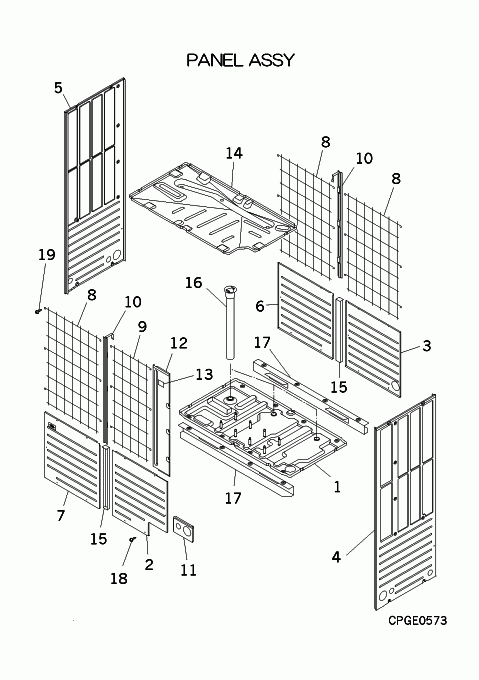

FDC500KXZE1/1 PANEL ASSY

FDC500KXZE1/1 PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB111A067
BASE ASSY
Contact
[2] In Stock
PCB122A122G
PANEL ASSY FRONT
[3] In Stock
PCB122A091A
PANEL ASSY FRONT
[4] In Stock
PCB123A094D
PANEL ASSY SIDE
[5] In Stock
PCB123A094F
PANEL ASSY SIDE
[6] In Stock
PCB122A091B
PANEL ASSY FRONT
[7] In Stock
PCB122A122A
PANEL ASSY FRONT
[8] In Stock
PCB131A043
GUARD,FIN
[9] In Stock
PCB131A043A
GUARD,FIN
[10] In Stock
PCB115A124
FRAME(U)
[11] Out of Stock
PCB142A457
COVER
[12] Contact
PCB122A097
PANEL,FRONT(U)
Contact
Substitute: PCB122A097B
[13] Out of Stock
RSA011H016G
LABEL,NOTICE
[14] In Stock
PCB454A021F
PAN ASSY,DRAIN
[15] In Stock
PCB115A116B
FRAME
[16] In Stock
PCB423B002
HOSE ASSY,DRAIN
[17] In Stock
PCB115A127
STIFFENER
[18] In Stock
SSA913D020
SCREW TAP
Notes: M5X10, 1pc ONLY Show Image
SSA913D020
[19] In Stock
SSA913D020D
SCREW,TAP & WASHER
Notes: M5X14, 1pc ONLY, M5X14
SKU: FDC500KXZE1/1 PANEL ASSY Category:
