FDC500KXZE1/1 HEAT EXCH. ASSY

FDC500KXZE1/1 HEAT EXCH. ASSY

Available Parts

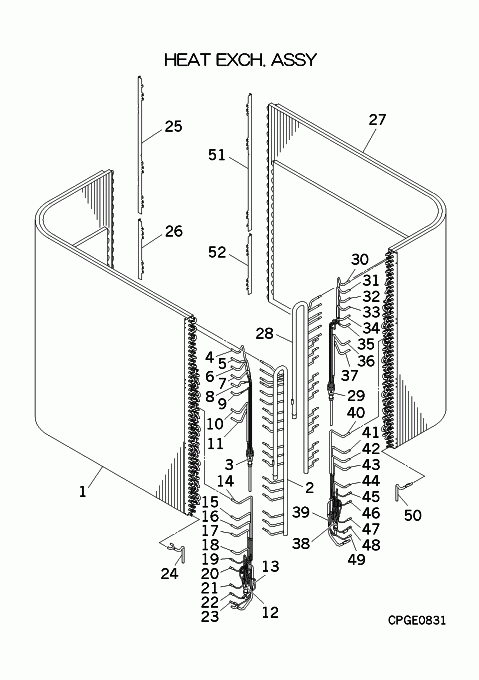

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCB311A048 HEAT EXCH(AIR) Contact   Contact
  • [1-26] PCB301A186 HEAT EXCH ASSY(AIR Contact Notes: FRONT   Contact
  • [2] PCB315D251 HEADER ASSY,GAS Contact   Contact
  • [3] SSA315A310A DISTRIBUTOR Contact   Contact
  • [3-11] PCB315A139 DISTRIBUTOR ASSY Contact   Contact
  • [4] PCB315F155 CAPILLARY ASSY(1) Contact Notes: !D2.8XD4.0 L500   Contact
  • [5] PCB315F156 CAPILLARY ASSY(2) Contact Notes: !D3.0XD5.0 L500   Contact
  • [6] PCB315F157 CAPILLARY ASSY(3) Contact Notes: !D3.0XD5.0 L500   Contact
  • [7] PCB315F158 CAPILLARY ASSY(4) Contact Notes: !D2.8XD4.0 L500   Contact
  • [8] PCB315F159 CAPILLARY ASSY(5) Contact Notes: !D2.8XD4.0 L500   Contact
  • [9] PCB315F160 CAPILLARY ASSY(6) Contact Notes: !D2.4XD4.0 L500   Contact
  • [10] PCB315F161 CAPILLARY ASSY(7) Contact Notes: !D3.0XD5.0 L100   Contact
  • [11] PCB315F216 CAPILLARY ASSY(8) Contact Notes: !D3.0XD5.0 L200   Contact
  • [12] SSA315A310C DISTRIBUTOR Contact   Contact
  • [12-23] PCB315A140 DISTRIBUTOR ASSY Contact   Contact
  • [13] PCB315A124 DISTRIBUTOR ASSY Contact   Contact
  • [14] PCB315F162 CAPILLARY ASSY(9) Contact Notes: !D2.6XD4.0 L300   Contact
  • [15] PCB315F163 CAPILLARY ASSY(10) Contact Notes: !D3.0XD5.0 L200   Contact
  • [16] PCB315F164 CAPILLARY ASSY(11) Contact Notes: !D2.6XD4.0 L300   Contact
  • [17] PCB315F165 CAPILLARY ASSY(12) Contact Notes: !D2.2XD4.0 L300   Contact
  • [18] PCB315F166 CAPILLARY ASSY(13) Contact Notes: !D2.4XD4.0 L200   Contact
  • [19] PCB315F223 CAPILLARY(14) Contact Notes: !D2.4XD4.0 L300   Contact
  • [20] PCB315F224 CAPILLARY(15) Contact Notes: !D2.4XD4.0 L500   Contact
  • [21] PCB315F236 CAPILLARY(16) Contact Notes: !D2.4XD4.0 L300   Contact
  • [22] PCB315F225 CAPILLARY(17) Contact Notes: !D2.2XD4.0 L500   Contact
  • [23] PCB315F237 CAPILLARY(18) Contact Notes: !D2.2XD4.0 L300   Contact
  • [24] PCB321G231 PIPE ASSY(L) Contact   Contact
  • [25] PCB141A042 PLATE,BAFFLE Contact Notes: UPPER   Contact
  • [26] PCB141A042A PLATE,BAFFLE Contact Notes: LOWER   Contact
  • [27] PCB311A048A HEAT EXCH(AIR) Contact   Contact
  • [27-52] PCB301A186A HEAT EXCH ASSY(AIR Contact Notes: REAR   Contact
  • [28] PCB315D253 HEADER ASSY,GAS Contact   Contact
  • [29] SSA315A310A DISTRIBUTOR Contact   Contact
  • [29-37] PCB315A142 DISTRIBUTOR ASSY Contact   Contact
  • [30] PCB315F167 CAPILLARY ASSY(1) Contact Notes: !D2.8XD4.0 L500   Contact
  • [31] PCB315F168 CAPILLARY ASSY(2) Contact Notes: !D3.0XD5.0 L500   Contact
  • [32] PCB315F169 CAPILLARY ASSY(3) Contact Notes: !D3.0XD5.0 L500   Contact
  • [33] PCB315F170 CAPILLARY ASSY(4) Contact Notes: !D2.8XD4.0 L500   Contact
  • [34] PCB315F171 CAPILLARY ASSY(5) Contact Notes: !D2.8XD4.0 L500   Contact
  • [35] PCB315F172 CAPILLARY ASSY(6) Contact Notes: !D2.4XD4.0 L500   Contact
  • [36] PCB315F173 CAPILLARY ASSY(7) Contact Notes: !D3.0XD5.0 L100   Contact
  • [37] PCB315F218 CAPILLARY ASSY(8) Contact Notes: !D3.0XD5.0 L200   Contact
  • [38] SSA315A310C DISTRIBUTOR Contact   Contact
  • [38-49] PCB315A143 DISTRIBUTOR ASSY Contact   Contact
  • [39] PCB315A124 DISTRIBUTOR ASSY Contact   Contact
  • [40] PCB315F174 CAPILLARY ASSY(9) Contact Notes: !D2.6XD4.0 L300   Contact
  • [41] PCB315F175 CAPILLARY ASSY(10) Contact Notes: !D3.0XD5.0 L200   Contact
  • [42] PCB315F176 CAPILLARY ASSY(11) Contact Notes: !D2.6XD4.0 L300   Contact
  • [43] PCB315F177 CAPILLARY ASSY(12) Contact Notes: !D2.2XD4.0 L300   Contact
  • [44] PCB315F178 CAPILLARY ASSY(13) Contact Notes: !D2.4XD4.0 L200   Contact
  • [45] PCB315F229 CAPILLARY(14) Contact Notes: !D2.0XD4.0 L300   Contact
  • [46] PCB315F230 CAPILLARY(15) Contact Notes: !D2.0XD4.0 L500   Contact
  • [47] PCB315F238 CAPILLARY(16) Contact Notes: !D2.4XD4.0 L300   Contact
  • [48] PCB315F231 CAPILLARY(17) Contact Notes: !D2.2XD4.0 L500   Contact
  • [49] PCB315F239 CAPILLARY(18) Contact Notes: !D2.2XD4.0 L300   Contact
  • [50] PCB321G231A PIPE ASSY(L) Contact   Contact
  • [51] PCB141A042 PLATE,BAFFLE Contact Notes: UPPER   Contact
  • [52] PCB141A042A PLATE,BAFFLE Contact Notes: LOWER   Contact
SKU: FDC500KXZE1/1 HEAT EXCH. ASSY Category:
