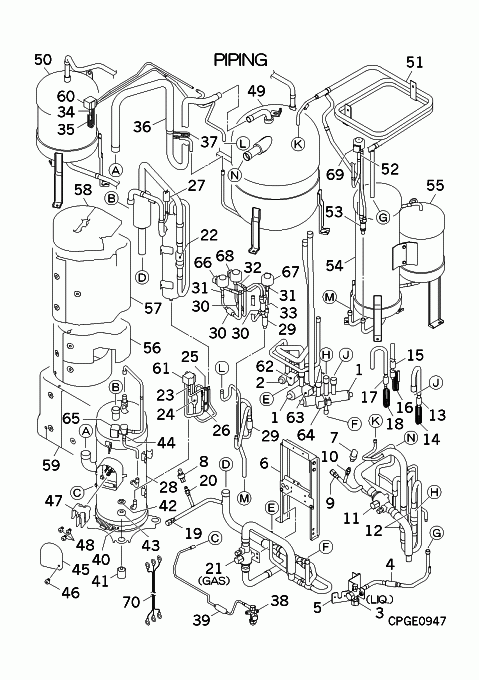

FDC450KXZRE1/1 PIPING

FDC450KXZRE1/1 PIPING

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] SSA382C096 4 WAY VALVE In Stock Notes: FOR KXRE4 UNITS NEEDS SOLENOID PCB382F119BL ALSO, 20S1,20SL
  • [2] SSA382C101 4 WAY VALVE In Stock Notes: 20S3
  • [3] PCB381A077A VALVE SERVI Contact Notes: LIQ.   Contact
  • [4] SSA357A007A STRAINER In Stock Substitute: SSA357A005AH Show Image
  • [5] PCB116B197 BRACKET Contact   Contact
  • [6] PCB116B192 BRACKET ASSY Contact   Contact
  • [7] SSA551D022F SENSOR,LP In Stock Notes: PSL, PSL Show Image
  • [8] SSA551D024A SENSOR HP In Stock Notes: HIGH PRESSURE TRANSDUCER - PSH, PSH Show Image
  • [9] SSA327B067 VALVE,SERVICE In Stock Show Image
  • [10] PCA327B056A VALVE ASSY,SERVICE Contact Substitute: SSA327B071D   Contact
  • [11] SSA381A748A VALVE,SERVICE In Stock Show Image
  • [12] SSA385A056 VALVE,CHECK Contact   Contact
  • [13] SSA357A051B STRAINER In Stock Show Image
  • [13-14] PCB321G840 PIPE ASSY Contact   Contact
  • [14] PCB315F330 CAPILLARY Contact Notes: !D1.0XD2.0 L1000   Contact
  • [15] SSA357A051B STRAINER In Stock Show Image
  • [15-16] PCB321G840A PIPE ASSY Contact   Contact
  • [16] PCB315F330A CAPILLARY Contact Notes: !D1.0XD2.0 L1000   Contact
  • [17] SSA357A051B STRAINER In Stock Show Image
  • [17-18] PCB321G840B PIPE ASSY Contact   Contact
  • [18] PCB315F330 CAPILLARY Contact Notes: !D1.0XD2.0 L1000   Contact
  • [19] SSA327B067 VALVE,SERVICE In Stock Show Image
  • [20] PCA327B056A VALVE ASSY,SERVICE Contact Substitute: SSA327B071D   Contact
  • [21] SSA381A748A VALVE,SERVICE In Stock Notes: GAS Show Image
  • [22] SSA385A056 VALVE,CHECK Contact   Contact
  • [22-27] PCB354A065 SEPARATOR ASSY,OIL Contact   Contact
  • [23] SSA382A282 VALVE,S(2WAY) In Stock Notes: SV6, SV6
  • [24] SSA357A053A STRAINER In Stock Show Image
  • [25] PCB315F149 CAPILLARY Contact Notes: !D1.0XD3.2 L500   Contact
  • [25-26] PCB382A252 VALVE ASSY Contact   Contact
  • [26] PCB315F214 CAPILLARY Contact Notes: !D1.5XD3.2 L200   Contact
  • [27] SSA532A085NB SWITH HP In Stock Notes: 63H1-1 Show Image
  • [28] AGF201A858DF COMPRESSOR In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***, GUC5185ND47V
  • [29] SSA357A054 STRAINER In Stock Show Image
  • [30] SSA357A051A STRAINER In Stock Show Image
  • [31] SSA387F044 EXP VALVE In Stock Notes: EEVH1,2 Show Image
  • [32] SSA387F045 VALVE EXPA In Stock Notes: EEVH3 Show Image
  • [33] SSA357A055 STRAINER Contact   Contact
  • [34] SSA382A282 VALVE,S(2WAY) In Stock Notes: SV6, SV1
  • [34-35] PCB382A260 VALVE ASSY(2WAY) Contact   Contact
  • [35] PCB315F215 CAPILLARY Contact Notes: !D1.8XD3.2 L500   Contact
  • [36-37] PCB321G639 PIPE,SUCTION Contact   Contact
  • [37] PCB315F151 CAPILLARY Contact Notes: !D2.4XD4.0 L350   Contact
  • [38] PCB381A092 VALVE,SERVICE Contact   Contact
  • [39] SSA357A005A STRAINER In Stock Substitute: ZZ60080A Show Image
  • [40] PCA541B011AT HEATER ASSY(CRANK) In Stock Show Image
  • [41] SSA941C356 CUSHION,RUBBER In Stock
  • [42] SSA914C013 NUT In Stock Notes: 1PC Show Image
  • [43] SSA915H042 WASHER Contact Notes: 1PC ONLY   Contact
  • [44] SSA382A257 VALVE(2WAY) Contact Notes: 20UF   Contact
  • [45] AGF947K102 COVER,TERMINAL Contact   Contact
  • [46] H051D05X008 SCREW Contact Notes: 1PC ONLY   Contact
  • [47] ASA561B005 BLOCK,TERMINAL Contact   Contact
  • [48] ASA912A001 SCREW,PAN-CRS Contact Notes: 1PC ONLY, M5X8   Contact
  • [49] SSA351A234L ACCUMULATOR Contact   Contact
  • [50] SSA351A235 ACCUMULATOR(SUB) Contact   Contact
  • [51] PCB303A041 HEAT EXCH ASSY(LIQ Contact   Contact
  • [52] SSA387F045A VALVE EXPA In Stock Notes: EEVC, EEVSC
  • [53] SSA357A055 STRAINER Contact   Contact
  • [54] PCB352A006B RECEIVER ASSY Contact   Contact
  • [55] PCB352A006D RECEIVER ASSY Contact   Contact
  • [56] PCB151D125 INSULATION,COMP Contact   Contact
  • [57] PCB151D126 INSULATION,COMP Contact   Contact
  • [58] PCB151D127 INSULATION,COMP Contact   Contact
  • [59] PCB151D128 INSULATION,COMP Contact   Contact
  • [60] PCB382F119DA COIL ASSY,SOLENOID In Stock Notes: FOR SV1
  • [61] PCB382F119DY COIL ASSY,SOLENOID In Stock Notes: FOR SV6 Show Image
  • [62] PCB382F119DZ COIL ASSY,SOLENOID Contact Notes: FOR 20S3   Contact
  • [63] PCB382F119FL COIL ASSY,SOLENOID Contact Notes: FOR 20S1   Contact
  • [64] PCB382F119FP COIL ASSY,SOLENOID Contact Notes: FOR 20SL   Contact
  • [65] PCB382F119DV COIL ASSY,SOLENOID In Stock Notes: FOR 20UF Show Image
  • [66] SSA382F212Z COIL,SOLENOID In Stock Notes: FOR EEVH1, FOR EEVH1 Show Image
  • [67] SSA382F212AM COIL,SOLENOID Contact Notes: FOR EEVH2   Contact
  • [68] SSA382F212AN COIL,SOLENOID Contact Notes: FOR EEVH3   Contact
  • [69] SSA382F212AC COIL,SOLENOID Contact Notes: FOR EEVSC   Contact
  • [70] PCB504A331V WIRING ASSY In Stock Notes: FOR COMP. Show Image
SKU: FDC450KXZRE1/1 PIPING Category:
