FDC450KXZE2/1 CONTROL AND PARTS SET

FDC450KXZE2/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

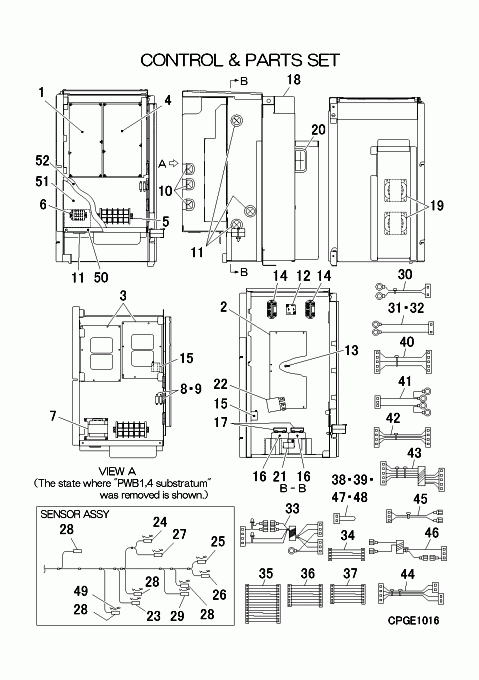

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCB505A280A
PWB ASSY (CONTROL)
Notes: ONLY FOR SUPPLAY PARTS PWB1
[1-48] Contact
PCB501A315F
CONTROL UNIT
Contact
Notes: !, NOT AVAILABLE
[2] In Stock
PCB505A283AB
PWB ASSY (INV.)
Notes: ONLY FOR SUPPLAY PARTS PWB2
[3] In Stock
PCB505A282A
PWB ASSY (N.F)
Notes: ONLY FOR SUPPLAY PARTS PWB3-1,2
[4] In Stock
PCB505A281F
PWB ASSY (POWER)
Notes: ONLY FOR SUPPLAY PARTS PWB4
[5] In Stock
SSA561B712A
BLOCK TERMINAL
Notes: TB1 Show Image
SSA561B712A
[6] In Stock
SSA561B693W
BLOCK,TERMI
Notes: TB2 Show Image
SSA561B693W
[7] In Stock
SSA554B073
REACTOR
Notes: L3 Show Image
SSA554B073
[8] In Stock
SSA564A163
FUSE (CURRENT)
Notes: F 6.3A
[9] In Stock
SSA564B076
HOLDER,FUSE
SSA564B076
[10] Contact
SSA947B017
GROMMET
Contact
[11] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[12] In Stock
PCA008A276A
PARTS SET(DIODE)
Notes: ONLY FOR SUPPLAY PARTS DM, DIODE MODULE & HEAT PASTE Show Image
PCA008A276A
[13] In Stock
SSA551A192AA
SENSOR ASSY
Notes: THO-P1
[14] In Stock
SSA521A727A
RELAY
Notes: 52X1-1,2
[15] Contact
SSA554D244
FILTER,NOISE
Contact
[16] Contact
SSA552F983A
CAPACITOR
Contact
Notes: C1-1,2
[17] Contact
SSA553A661KP
RESISTOR
Contact
Notes: R1-1,2
[18] Contact
PCB438A101B
DUCT ASSY
Contact
[19] Contact
SSA554B123
REACTOR
Contact
Notes: L1
[20] Contact
SSA947B121
GROMMET
Contact
[21] Contact
SSA551J030A
SENSOR,CURRENT
Contact
[22] In Stock
SSA552F694
CAPACITOR
Notes: 1250v 2.2uf
[23] In Stock
PSA551A015B
SENSOR ASSY
Notes: THO-C1 Show Image
PSA551A015B
[24] In Stock
PSA551A016G
SENSOR ASSY
Notes: THO-H, LENGTH 147.5CM Show Image
PSA551A016G
[25] In Stock
PSA551A015J
SENSOR ASSY
Notes: THO-R3, THO-R3/ LENGTH 22.5CM
[26] In Stock
PSA551A015K
SENSOR ASSY
Notes: THO-R4 Show Image
PSA551A015K
[27] In Stock
PSA551A015L
SENSOR ASSY
Notes: THO-SC, SUB-COOLING THERMISTOR 1 Show Image
PSA551A015L
[28] In Stock
PSA551A016M
SENSOR ASSY
Notes: THO-A,D1,R1,S, THO-A,D1,R1,S/ LENGTH 223CM Show Image
PSA551A016M
[29] In Stock
PSA551A016P
SENSOR ASSY
Notes: THO-R2
[30] Contact
PCB504A412G
WIRING ASSY
Contact
Notes: TB2 A1,TB2 B1- PWB1 CNX1
[31] Contact
PCB504A284BF
WIRING ASSY
Contact
Notes: TB2 A1,TB2 B1- CNSL1
[32] Contact
PCB504A284BG
WIRING ASSY
Contact
Notes: TB2 A2,TB2 B2- CNSL2
[33] Contact
PCB504A412FY
WIRING ASSY
Contact
[34] Contact
PCB504A412GM
WIRING ASSY
Contact
Notes: PWB1 CNE1- PWB4 CNE2
[35] Contact
PCB504A412N
WIRING ASSY
Contact
Notes: PWB1 CNK1- PWB4 CNK2
[36] Contact
PCB504A412P
WIRING ASSY
Contact
Notes: PWB1 CNFAN3- PWB4 CNFAN4
[37] Contact
PCB504A412GR
WIRING ASSY
Contact
Notes: PWB1 CNK3- PWB4 CNK4
[38] Contact
PCB504A284BB
WIRING ASSY
Contact
Notes: PWB1 CNS1
[39] In Stock
PCB504A284BC
WIRING ASSY
Notes: PWB1 CNS2 Show Image
PCB504A284BC
[40] Contact
PCB504A412KJ
WIRING ASSY
Contact
Notes: PWB3-1 CN2- PWB4 CNW
[41] Contact
PCB504A413BV
WIRING ASSY
Contact
Notes: PWB2-1 CNR1- 52X1-1 5,52X1-2 5,52X1-2 6,52X1-1 6
[42] Contact
PCB504A412BH
WIRING ASSY
Contact
Notes: PWB2-1 CNC3- CT1
[43] Contact
PCB504A413BK
WIRING ASSY
Contact
Notes: PWB1 CNI1- PWB2-1 CNI2
[44] Contact
PCB504A413BM
WIRING ASSY
Contact
[45] Contact
PCB504A412FP
WIRING ASSY
Contact
Notes: PWB3-1 CN1- DS,DS
[46] Contact
PCB504A412JR
WIRING ASSY
Contact
[47] Contact
PCB504A284AP
WIRING ASSY
Contact
Notes: PWB1 CNG1
[48] Contact
PCB504A284AR
WIRING ASSY
Contact
Notes: PWB1 CNG2
[49] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR ASSY Show Image
RKJ941F001
[50-52] Contact
PCB142A758A
COVER ASSY(CONTROL
Contact
[51] Contact
PCB011G024AB
LABEL,WIRING
Contact
Notes: !SURFACE ATTACHMENT
[52] Contact
PCB011G024B
LABEL,WIRING
Contact
Notes: !BACK ATTACHMENT
[53] Contact
PSB011F373F
LABEL,MODEL NAME
Contact
Notes: !
