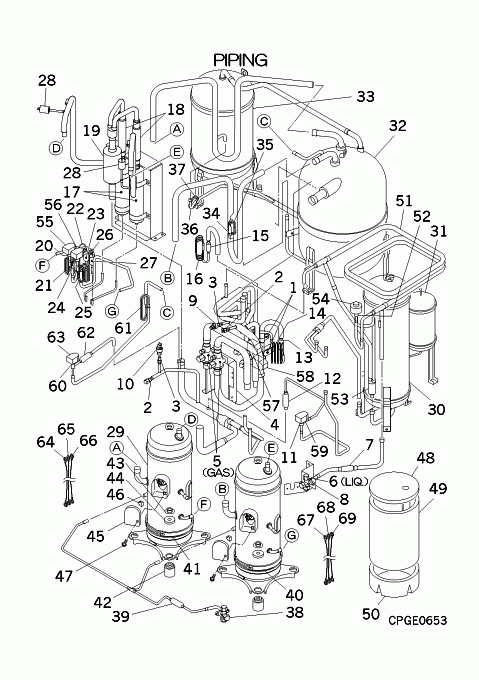

FDC450KXRE6 PIPING

FDC450KXRE6 PIPING

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
SSA382C096A
VALVE, S(4WAY)
Notes: 20S,20SL, Reversing Valve Body
[2] In Stock
SSA327B067
VALVE,SERVICE
SSA327B067
[3] Contact
PCA327B056A
VALVE ASSY,SERVICE
Contact
Substitute: SSA327B071D
[4] Contact
PCB116A578
BRACKET
Contact
[5] In Stock
SSA381A855
SERVICE VALVE
Notes: GAS Show Image
SSA381A855
[6] Contact
PCB381A077A
VALVE SERVI
Contact
Notes: LIQ.
[7] In Stock
SSA357A007A
STRAINER
SSA357A007A
[8] Contact
PCB116A579
BRACKET
Contact
[9] In Stock
SSA551D022V
SENSOR,LP
Notes: PSL
[10] In Stock
SSA551D024A
SENSOR HP
Notes: HIGH PRESSURE TRANSDUCER, HIGH PRESSURE TRANSDUCER - PSH Show Image
SSA551D024A
[11] In Stock
SSA382A249A
VALVE,S(2WAY)
Notes: SV, SV1 Show Image
SSA382A249A
[11-12] Contact
PCB382A193A
VALVE ASSY(2WAY)
Contact
[12] In Stock
SSA357A059T
STRAINER
SSA357A059T
[13] In Stock
SSA357A005C
STRAINER
SSA357A005C
[13-14] In Stock
PCB321F270
PIPE ASSY
[14] Contact
PCB315B812
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[15] In Stock
SSA357A005C
STRAINER
SSA357A005C
[15-16] In Stock
PCB321F270A
PIPE ASSY
[16] Contact
PCB315B812A
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[17] Contact
PCB325A007
PIPE,SHELL
Contact
[17-27] In Stock
PCB354A049A
OIL SEPARATOR
[17-28] In Stock
PCB354A048H
SEPARATOR ASSY,OIL
[18] Contact
SSA385A051
VALVE,CHECK
Contact
[19] Contact
SSA325A001CL
PIPE,SHELL
Contact
[20] In Stock
SSA382A219
VALVE(2WAY)
Notes: SV, LENGTH 7.5CM Show Image
SSA382A219
[20-27] Contact
PCB321F943A
PIPE ASSY
Contact
[21] Contact
PCB315B831A
CAPILLARY
Contact
Notes: !D2.2XD3.2 L340
[22] Contact
PCB315B805
CAPILLARY
Contact
Notes: !D1.2XD3.2 L500
[23] Contact
SSA357A048A
STRAINER
Contact
[24] In Stock
SSA382A219
VALVE(2WAY)
Notes: SV, LENGTH 7.5CM Show Image
SSA382A219
[25] Contact
PCB315B831
CAPILLARY
Contact
Notes: !D2.2XD3.2 L340
[26] Contact
PCB315B801A
CAPILLARY
Contact
Notes: !D1.1XD3.2 L500
[27] Contact
SSA357A048A
STRAINER
Contact
[28] In Stock
SSA532A085NA
SWITCH, HP
Notes: 63H1-1,2
[29] In Stock
AGT201B827HD
COMPRESSOR
Notes: GTC5150NH48L, ***COMPRESSORS CANNOT BE RETURNED***
[30] In Stock
SSA352A111W
RECEIVER ASSY
[31] In Stock
SSA352A111Z
RECIEVER ASSY
[32] Contact
SSA351A228B
ACCUMULATOR
Contact
Notes: OUT OF PRODUCTION
[33] In Stock
SSA351A223
ACCUMULATOR(SUB)
[34-35] Contact
PCB321F658B
PIPE,SUCTION(2)
Contact
[35] In Stock
PCB315B303D
CAPILLARY
Notes: !D2.2XD3.2 L300 Show Image
PCB315B303D
[36-37] Contact
PCB315B809
CAPILLARY ASSY
Contact
[37] In Stock
PCB315B303C
CAPILLARY
Notes: !D2.2XD3.2 L300, LENGTH 6.5CM Show Image
PCB315B303C
[38] Contact
PCB381A092
VALVE,SERVICE
Contact
[39] In Stock
SSA357A005A
STRAINER
SSA357A005A
[40] In Stock
PCA541B021AT
HEATER ASSY(CRANK)
[41] In Stock
PCA541B031
HEATER ASSY(CRANK)
PCA541B031
[42] In Stock
SSA941C356
CUSHION,RUBBER
Notes: 1pc only Show Image
SSA941C356
[43] In Stock
SSA914C033
NUT
Notes: 1pc
[44] Contact
SSA915H039A
WASHER
Contact
Notes: 1pc ONLY
[45] In Stock
PCB008A195
PARTS SET
Notes: Includes Cover, Nuts x3 & Gasket Show Image
PCB008A195
[46] In Stock
ASA561B002
BLOCK,TERMINAL
[47] Out of Stock
H051D05X008
SCREW
Notes: M5X8, 1pc ONLY
[48] In Stock
PCA151D034
INSULATO CO
[49] Contact
PCB151D088A
INSULATION,COMP
Contact
[50] Contact
PCB151D100
INSULATIO
Contact
[51] In Stock
PCB303A011
HEAT LIQ
[52] In Stock
SSA387F036
EXP VALVE
Notes: EEV, EEV(HEAT) or EEVH1-EEVH2 Show Image
SSA387F036
[53] In Stock
SSA357A024C
STRAINER
SSA357A024C
[54] Contact
SSA382F210AZ
COIL,SOLENOID
Contact
Notes: FOR EEVSC
[55] In Stock
PCB382F119D
COIL ASSY,SOLENOID
Notes: FOR SV6 Show Image
PCB382F119D
[56] In Stock
PCB382F119F
COIL ASSY,SOLENOID
Notes: FOR SV7 Show Image
PCB382F119F
[57] Contact
PCB382F119M
COIL ASSY,SOLENOID
Contact
Notes: FOR 20S
[58] In Stock
PCB382F119P
COIL ASSY,SOLENOID
Notes: FOR 20SL Show Image
PCB382F119P
[59] In Stock
PCB382F119G
COIL ASSY,SOLENOID
Notes: FOR SV11 Show Image
PCB382F119G
[60] Contact
SSA382A273
VALVE,S(2WAY)
Contact
Substitute: SSA382A254 Notes: SV13 or SV4, SV13
[60-62] Contact
PCB382A203A
VALVE ASSY(2WAY)
Contact
[61] Contact
PCB315B842
CAPILLARY
Contact
Notes: !D3.0XD4.0 L500
[62] In Stock
SSA357A005A
STRAINER
SSA357A005A
[63] In Stock
PCB382F119K
COIL ASSY,SOLENOID
Notes: FOR SV13 Show Image
PCB382F119K
[64] Contact
PCA504A262HR
WIRING ASSY
Contact
Notes: !CM1 U
[65] Contact
PCA504A262KR
WIRING ASSY
Contact
Notes: !CM1 V
[66] Contact
PCA504A262MR
WIRING ASSY
Contact
Notes: !CM1 W
[67] Contact
PCB504A308P
WIRING ASSY
Contact
Notes: !CM2 U
[68] Contact
PCB504A308R
WIRING ASSY
Contact
Notes: !CM2 V
[69] Contact
PCB504A308S
WIRING ASSY
Contact
Notes: !CM2 W
