FDC450KXRE6/L CONTROL AND PARTS SET

FDC450KXRE6/L CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

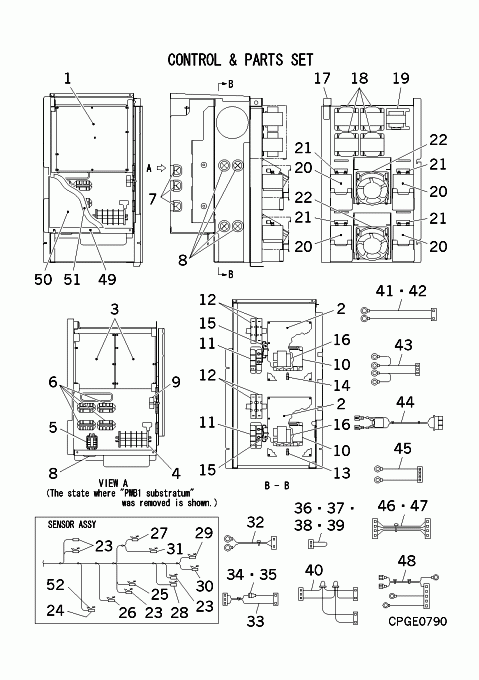

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCB505A202GD
PWB ASSY CONTROL
Notes: PWB1, PWB1 - Control PWB Show Image
PCB505A202GD
[1-48] Contact
PCB501A256G
CONTROL UNIT
Contact
Notes: NOT AVAILABLE
[2] In Stock
PCB505A117AB
PWB ASSY(INV.)
Notes: PWB2-1,2, PWB2 - Inverter PWB Show Image
PCB505A117AB
[3] In Stock
PCB505A155H
PWB ASSY(N.F)
Notes: PWB3-1,2, Noise Filter PCB Show Image
PCB505A155H
[4] In Stock
SSA561B712A
BLOCK TERMINAL
Notes: TB1 Show Image
SSA561B712A
[5] In Stock
SSA561B693W
BLOCK,TERMI
Notes: TB2 Show Image
SSA561B693W
[6] In Stock
SSA521A715A
RELAY
Notes: 52X1-1,1-2,2-1,2-2, 52X1,52X2
[7] Contact
SSA947B017
GROMMET
Contact
[8] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[9] In Stock
SSA552D081
FILTER,NOISE
[10] In Stock
PCB008A120A
TRANSISTOR
Notes: IPM/TM, IPM (Intelligent Power Module) / POWER TRANSISTOR Show Image
PCB008A120A
[11] In Stock
PCB008A121A
DIODE STACK
Notes: DM, aka DIODE MODULE Show Image
PCB008A121A
[12] In Stock
SSA553A379
RESISTOR
Notes: R1-1,2,R2-1,2, SOLD INDIVIDUALLY - 15O (Ohm) Show Image
SSA553A379
[13] In Stock
SSA551A192W
SENSOR ASSY
Notes: THO-P1
[14] In Stock
SSA551A192R
SENSOR ASSY
Notes: THO-P2, THO-P2 (POWER TRANSISTOR SENSOR)/ LENGTH 100CM Show Image
SSA551A192R
[15] In Stock
PCB555B003C
VARISTOR ASSY
PCB555B003C
[16] In Stock
SSA552F694
CAPACITOR
Notes: 1250v 2.2uf
[17] Contact
PCB438A043B
DUCT ASSY
Contact
[18] In Stock
SSA554B097
REACTOR
Notes: L1-1,2,L2-1,2
[19] In Stock
SSA554B073
REACTOR
Notes: L3 Show Image
SSA554B073
[20] In Stock
SSA552F427AK
CAPACITOR
Notes: C1-1,C2-1,C1-2,C2-2, 4700 MICRO FARADS Show Image
SSA552F427AK
[21] In Stock
SSA553A380
RESISTOR
Notes: R1-3,4,R2-3,4, SOLD INDIVIDUALLY - 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image
SSA553A380
[22] In Stock
PCB511A006F
MOTOR ASSY,
[23] In Stock
PSA551A016A
SENSOR ASSY
Notes: THO-A,S,D1,R1, THO-A,D1,R1,S Show Image
PSA551A016A
[24] In Stock
PSA551A015C
SENSOR ASSY
Notes: THO-C1, UNDER-DOME SENSOR Show Image
PSA551A015C
[25] In Stock
PSA551A015D
SENSOR ASSY
Notes: THO-C2, UNDER-DOME SENSOR Show Image
PSA551A015D
[26] In Stock
PSA551A015F
SENSOR ASSY
Notes: THO-D2, THO-D2 (DISCHARGE PIPE SENSOR 2) Show Image
PSA551A015F
[27] In Stock
PSA551A016G
SENSOR ASSY
Notes: THO-H, LENGTH 147.5CM Show Image
PSA551A016G
[28] In Stock
PSA551A016H
SENSOR ASSY
Notes: THO-R2, LENGTH 218.5CM Show Image
PSA551A016H
[29] In Stock
PSA551A015J
SENSOR ASSY
Notes: THO-R3, THO-R3/ LENGTH 22.5CM
[30] In Stock
PSA551A015K
SENSOR ASSY
Notes: THO-R4 Show Image
PSA551A015K
[31] In Stock
PSA551A015L
SENSOR ASSY
Notes: THO-SC, SUB-COOLING THERMISTOR 1 Show Image
PSA551A015L
[32] Contact
PCB504A308AF
WIRING ASSY
Contact
Notes: TB2 A1,TB2 B1- PWB1 CNX1
[33-35] Contact
PCB504A338
WIRING ASSY
Contact
Notes: PWB1 CNA1- USED BY UNIT ASSYPWB1 CNA3- USED BY UNIT ASSY
[34] In Stock
SSA564A112
FUSE
Notes: 5A, 5 AMP FUSE
[35] In Stock
RWC564B002
HOLDER,FUSE
RWC564B002
[36] Contact
PCB504A284BB
WIRING ASSY
Contact
Notes: PWB1 CNS1
[37] In Stock
PCB504A284BC
WIRING ASSY
Notes: PWB1 CNS2 Show Image
PCB504A284BC
[38] Contact
PCB504A284AP
WIRING ASSY
Contact
Notes: PWB1 CNG1
[39] Contact
PCB504A284AR
WIRING ASSY
Contact
Notes: PWB1 CNG2
[40] Contact
PCB504A308AH
WIRING ASSY
Contact
Notes: PWB1 CNN8- FMC1,FMC2
[41] Contact
PCB504A295
WIRING ASSY
Contact
Notes: TB2 A1,TB2 B1- CNSL1
[42] Contact
PCB504A295B
WIRING ASSY
Contact
Notes: TB2 A2,TB2 B2- CNSL2
[43] Contact
PCB504A308AW
WIRING ASSY
Contact
Notes: 52X1-2 5,52X1-1 5,52X1-1 6,52X1-2 6- PWB1 CNM1
[44] In Stock
PCB504A338W
WIRING ASSY
Notes: DM1 G,DM1 K- PWB2-1 CNRDM2 G,DM2 K- PWB2-2 CNR Show Image
PCB504A338W
[45] Contact
PCB504A338A
WIRING ASSY
Contact
Notes: IPM1 N,IPM1 P- PWB2-1 CANIPM2 N,IPM2 P- PWB2-2 CAN
[46] Contact
PCB504A308H
WIRING ASSY
Contact
Notes: PWB1 CNI1- PWB2-2 CNI2
[47] Contact
PCB504A308J
WIRING ASSY
Contact
Notes: PWB2-1 CNI3- PWB2-2 CNI3
[48] In Stock
PCB504A308D
WIRING ASSY
Notes: Connects from PWB1 to PWB3 & L3 REACTOR Show Image
PCB504A308D
[49-51] Contact
PCB142A463W
COVER ASSY(CONTROL
Contact
[50] Contact
PCB011G016AA
LABEL,WIRING
Contact
Notes: !SURFACE ATTACHMENT
[51] Contact
PCB011G016A
LABEL,WIRING
Contact
Notes: !BACK ATTACHMENT
[52] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
[53] Contact
PSB011F171G
LABEL,MODEL NAME
Contact
