FDC400KXZRE2/1 CONTROL AND PARTS SET

FDC400KXZRE2/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

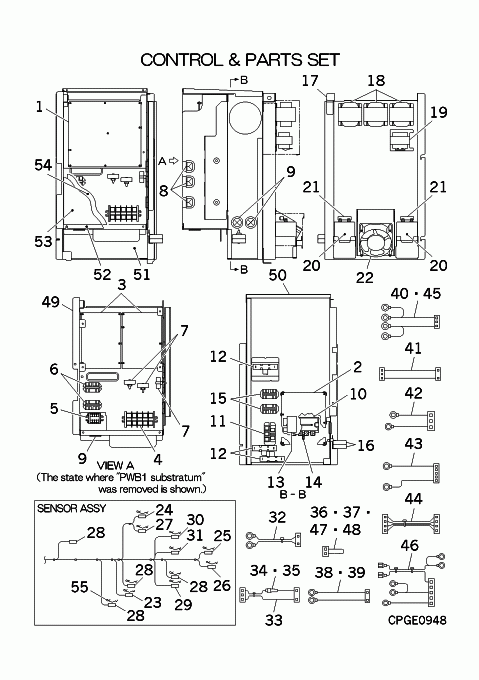

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCB505A202TG
PWB ASSY CONTROL
Notes: ONLY FOR SUPPLAY PARTS PWB1
[1-51] Contact
PCB501A274HD
CONTROL UNIT
Contact
Notes: !, NOT AVAILABLE
[2] In Stock
PCB505A267AB
PWB ASSY (INV.)
Notes: ONLY FOR SUPPLAY PARTS PWB2
[3] In Stock
PCB505A268AB
PWB ASSY (N.F)
Notes: ONLY FOR SUPPLAY PARTS PWB3-1,2, PWB3 - Noise Filter PCB
[4] In Stock
SSA561B712A
BLOCK TERMINAL
Notes: TB1 Show Image
SSA561B712A
[5] In Stock
SSA561B693W
BLOCK,TERMI
Notes: TB2 Show Image
SSA561B693W
[6] In Stock
SSA521A715A
RELAY
Notes: 52X1-1,2, 52X1,52X2
[7] In Stock
SSA552D081
FILTER,NOISE
[8] Contact
SSA947B017
GROMMET
Contact
[9] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[10] In Stock
PCB008A213D
TRANSISTOR(POWER)
Notes: ONLY FOR SUPPLAY PARTS TM Show Image
PCB008A213D
[11] In Stock
PCB008A212B
DIODE(MODULE)
Notes: ONLY FOR SUPPLAY PARTS DM Show Image
PCB008A212B
[12] Contact
SSA553A577
RESISTOR
Contact
Notes: R1-1,2,5
[13] In Stock
SSA552F694
CAPACITOR
Notes: 1250v 2.2uf
[14] In Stock
SSA551A192W
SENSOR ASSY
Notes: THO-P1
[15] In Stock
SSA521A727
RELAY
Notes: 52X1-3,4, 52X1/ LENGTH 7CM Show Image
SSA521A727
[16] Contact
SSA554D183C
KILLER,NOISE
Contact
[17] Contact
PCB438A043A
DUCT ASSY
Contact
[18] In Stock
SSA554B097A
REACTOR
Notes: L1-1,2,3, L1 Show Image
SSA554B097A
[19] In Stock
SSA554B073
REACTOR
Notes: L3 Show Image
SSA554B073
[20] Contact
SSA552F827
CAPACITOR
Contact
Notes: C1-1,2
[21] In Stock
SSA553A590
RESISTOR
Notes: R1-3,4
[22] In Stock
PCB511A006F
MOTOR ASSY,
[23] In Stock
PSA551A015B
SENSOR ASSY
Notes: THO-C1 Show Image
PSA551A015B
[24] In Stock
PSA551A016S
SENSOR ASSY
Notes: THO-H Show Image
PSA551A016S
[25] In Stock
PSA551A015J
SENSOR ASSY
Notes: THO-R3, THO-R3/ LENGTH 22.5CM
[26] In Stock
PSA551A015K
SENSOR ASSY
Notes: THO-R4 Show Image
PSA551A015K
[27] In Stock
PSA551A015V
SENSOR ASSY
Notes: THO-SC Show Image
PSA551A015V
[28] Contact
PCB551A034V
SENSOR ASSY
Contact
Substitute: PSA551A016V Notes: THO-A,D1,R1,S
[29] In Stock
PSA551A016T
SENSOR ASSY
Notes: THO-R2 Show Image
PSA551A016T
[30] In Stock
PSA551A016R
SENSOR ASSY
Notes: THO-R5 Show Image
PSA551A016R
[31] In Stock
PSA551A015T
SENSOR ASSY
Notes: THO-R6 Show Image
PSA551A015T
[32] Contact
PCB504A308AF
WIRING ASSY
Contact
Notes: TB2 A1,TB2 B1- PWB1 CNX1
[33-35] In Stock
PCB504A373AG
WIRING ASSY
Notes: PWB1 CNA1-PWB1 CNA3- Show Image
PCB504A373AG
[34] In Stock
SSA564A149AG
FUSE(CURRENT)
Notes: F 4A, F 4A‚ - 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image
SSA564A149AG
[35] In Stock
RWC564B002
HOLDER,FUSE
RWC564B002
[36] Contact
PCB504A284BB
WIRING ASSY
Contact
Notes: PWB1 CNS1
[37] In Stock
PCB504A284BC
WIRING ASSY
Notes: PWB1 CNS2 Show Image
PCB504A284BC
[38] Contact
PCB504A284BF
WIRING ASSY
Contact
Notes: TB2 A1,TB2 B1- CNSL1
[39] Contact
PCB504A284BG
WIRING ASSY
Contact
Notes: TB2 A2,TB2 B2- CNSL2
[40] Contact
PCB504A308AW
WIRING ASSY
Contact
Notes: 52X1-2 5,52X1-1 5,52X1-1 6,52X1-2 6- PWB1 CNM1
[41] Contact
PCB504A308BA
WIRING ASSY
Contact
Notes: PWB1 CNN8- FMC1
[42] Contact
PCB504A373AH
WIRING ASSY
Contact
Notes: PWB3-1 N ,E- PWB3-1 CN1PWB3-2 N ,E- PWB3-2 CN1
[43] Contact
PCB504A331N
WIRING ASSY
Contact
Notes: IPM1 P,IPM1 N- PWB2-1 CNA
[44] In Stock
PCB504A403
WIRING ASSY
Notes: PWB1 CNI1- PWB2-1 CNI2 Show Image
PCB504A403
[45] Contact
PCB504A338L
WIRING ASSY
Contact
[46] Contact
PCB504A373AJ
WIRING ASSY
Contact
[47] Contact
PCB504A284AP
WIRING ASSY
Contact
Notes: PWB1 CNG1
[48] Contact
PCB504A284AR
WIRING ASSY
Contact
Notes: PWB1 CNG2
[49] Contact
PCB142A562A
BOX ASSY(MAIN)
Contact
[50] Contact
PCB142A559A
BOX ASSY(INV)
Contact
[51] Contact
PCB142A460
COVER
Contact
[52-54] Contact
PCB142A463AF
COVER ASSY(CONTROL
Contact
[53] Contact
PCB011G018AA
LABEL,WIRING
Contact
Notes: !SURFACE ATTACHMENT
[54] Contact
PCB011G018B
LABEL,WIRING
Contact
Notes: !BACK ATTACHMENT
[55] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR ASSY Show Image
RKJ941F001
[56] Contact
PSB011F375D
LABEL,MODEL NAME
Contact
Notes: !
