PRINT

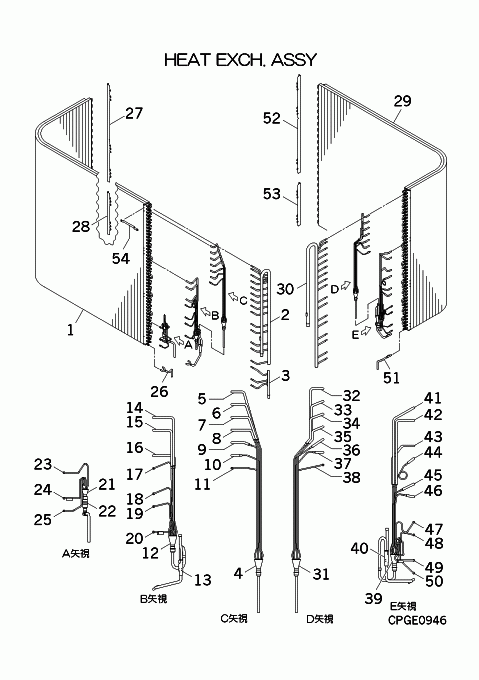

FDC400KXZRE1/1 HEAT EXCH. ASSY

FDC400KXZRE1/1 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-28] Contact
PCB301A201
HEAT EXCH ASSY(AIR
Contact
Notes: FRONT
[2] Contact
PCB315D344
HEADER ASSY,GAS
Contact
Notes: !
[3] Contact
PCB315D340
HEADER ASSY,GAS
Contact
Notes: !
[4] Contact
SSA315A312
DISTRIBUTOR
Contact
Notes: !
[4-11] Contact
PCB315A164
DISTRIBUTOR ASSY
Contact
[4-20] Contact
PCB315A163
DISTRIBUTOR ASSY
Contact
[5] Contact
PCB315F276
CAPILLARY ASSY(1)
Contact
Notes: !D2.6XD4.0 L500
[6] Contact
PCB315F277
CAPILLARY ASSY(2)
Contact
Notes: !D2.8XD4.0 L500
[7] Contact
PCB315F278
CAPILLARY ASSY(3)
Contact
Notes: !D2.8XD4.0 L500
[8] Contact
PCB315F279
CAPILLARY ASSY(4)
Contact
Notes: !D2.8XD4.0 L500
[9] Contact
PCB315F280
CAPILLARY ASSY(5)
Contact
Notes: !D2.4XD4.0 L500
[10] Contact
PCB315F281
CAPILLARY ASSY(6)
Contact
Notes: !D2.4XD4.0 L500
[11] Contact
PCB315F291
CAPILLARY(7)
Contact
Notes: !D2.2XD4.0 L500
[12] Contact
SSA315A312
DISTRIBUTOR
Contact
Notes: !
[12-20] Contact
PCB315A165
DISTRIBUTOR ASSY
Contact
[13] Contact
PCB315A124
DISTRIBUTOR ASSY
Contact
Notes: !
[14] Contact
PCB315F282
CAPILLARY ASSY(1)
Contact
Notes: !D3.0XD4.0 L300
[15] Contact
PCB315F283
CAPILLARY ASSY(2)
Contact
Notes: !D2.4XD4.0 L300
[16] Contact
PCB315F284
CAPILLARY ASSY(3)
Contact
Notes: !D3.0XD4.0 L300
[17] Contact
PCB315F294
CAPILLARY(4)
Contact
Notes: !D2.4XD4.0 L500
[18] Contact
PCB315F295
CAPILLARY(5)
Contact
Notes: !D3.0XD4.0 L300
[19] Contact
PCB315F296
CAPILLARY(6)
Contact
Notes: !D2.0XD4.0 L300
[20] Contact
PCB315F297
CAPILLARY(7)
Contact
Notes: !D2.2XD4.0 L300
[21] Contact
SSA315A306A
DISTRIBUTOR
Contact
Notes: !
[21-25] Contact
PCB315A166
DISTRIBUTOR ASSY
Contact
[22] In Stock
SSA357A051D
STRAINER
Show Image
SSA357A051D
[23] Contact
PCB315F298
CAPILLARY(1)
Contact
Notes: !D2.2XD4.0 L300
[24] Contact
PCB315F299
CAPILLARY(2)
Contact
Notes: !D2.6XD4.0 L300
[25] Contact
PCB315F300
CAPILLARY(3)
Contact
Notes: !D2.6XD4.0 L400
[26] Contact
PCB321G811
PIPE ASSY(L)
Contact
[27] Contact
PCB141A042
PLATE,BAFFLE
Contact
Notes: UPPER
[28] Contact
PCB141A042A
PLATE,BAFFLE
Contact
Notes: LOWER
[29-53] Contact
PCB301A201A
HEAT EXCH ASSY(AIR
Contact
Notes: REAR
[30] Contact
PCB315D346
HEADER ASSY,GAS
Contact
Notes: !
[31] Contact
SSA315A312
DISTRIBUTOR
Contact
Notes: !
[31-38] Contact
PCB315A164A
DISTRIBUTOR ASSY
Contact
[31-50] Contact
PCB315A163A
DISTRIBUTOR ASSY
Contact
[32] Contact
PCB315F301
CAPILLARY ASSY(1)
Contact
Notes: !D2.6XD4.0 L500
[33] Contact
PCB315F302
CAPILLARY ASSY(2)
Contact
Notes: !D2.8XD4.0 L500
[34] Contact
PCB315F303
CAPILLARY ASSY(3)
Contact
Notes: !D2.8XD4.0 L500
[35] Contact
PCB315F304
CAPILLARY ASSY(4)
Contact
Notes: !D2.8XD4.0 L500
[36] Contact
PCB315F305
CAPILLARY ASSY(5)
Contact
Notes: !D2.4XD4.0 L500
[37] Contact
PCB315F306
CAPILLARY ASSY(6)
Contact
Notes: !D2.4XD4.0 L500
[38] Contact
PCB315F319
CAPILLARY(7)
Contact
Notes: !D2.2XD4.0 L500
[39] Contact
SSA315A312C
DISTRIBUTOR
Contact
Notes: !
[39-50] Contact
PCB315A165A
DISTRIBUTOR ASSY
Contact
[40] Contact
PCB315A124
DISTRIBUTOR ASSY
Contact
Notes: !
[41] Contact
PCB315B876
CAPILLARY ASSY(1)
Contact
Notes: !D3.0XD4.0 L300
[42] Contact
PCB315F308
CAPILLARY ASSY(2)
Contact
Notes: !D2.4XD4.0 L300
[43] Contact
PCB315B878
CAPILLARY ASSY(3)
Contact
Notes: !D3.0XD4.0 L300
[44] Contact
PCB315F310
CAPILLARY ASSY(4)
Contact
Notes: !D2.4XD4.0 L500
[45] Contact
PCB315B880
CAPILLARY ASSY(5)
Contact
Notes: !D3.0XD4.0 L300
[46] Contact
PCB315F312
CAPILLARY ASSY(6)
Contact
Notes: !D2.0XD4.0 L300
[47] Contact
PCB315F326
CAPILLARY(7)
Contact
Notes: !D2.8XD4.0 L300
[48] Contact
PCB315F327
CAPILLARY(8)
Contact
Notes: !D2.2XD4.0 L300
[49] Contact
PCB315F328
CAPILLARY(9)
Contact
Notes: !D2.8XD4.0 L300
[50] Contact
PCB315F329
CAPILLARY(10)
Contact
Notes: !D2.6XD4.0 L400
[51] Contact
PCB321G811A
PIPE ASSY(L)
Contact
[52] Contact
PCB141A042
PLATE,BAFFLE
Contact
Notes: UPPER
[53] Contact
PCB141A042A
PLATE,BAFFLE
Contact
Notes: LOWER
[54] Contact
PCB116A816
BRACKET
Contact
SKU: FDC400KXZRE1/1 HEAT EXCH. ASSY Category:
